Najk Posted October 9, 2007 Share Posted October 9, 2007 Hey guys! I'm a newbie here on the forum, but not all that new to modelling. :) I've tried searching the forum on this topic, but with no luck. Has anyone got some decent pictures or scale plans on the DC-10F? Main panel lines, outlines of the cargo door, and so on? It would really help me getting that Airfix DC-10 started. TIA! //Niklas from Sweden Quote Link to post Share on other sites

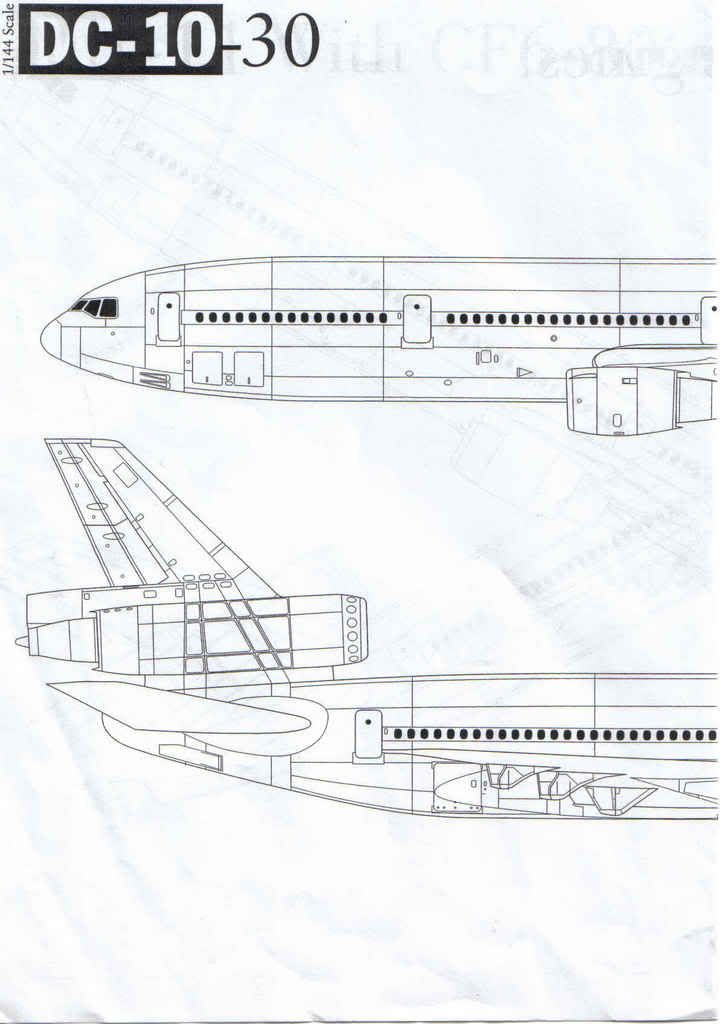

carioca Posted October 10, 2007 Share Posted October 10, 2007 Hi Niklas, and welcome to the looneys´ home! (GREAT looneys, I must say! ) Well, what i have here is a DC-10 Passenger version profile, maybe it´ll help you a little, you should yet check the cargo door area panel lines before getting into work on this. Here it goes: Best regards! Eduardo, from Brazil Quote Link to post Share on other sites
David Walker Posted October 10, 2007 Share Posted October 10, 2007 These may help with the cargo door: http://www.airliners.net/open.file/1276697/L/ http://www.airliners.net/open.file/1274795/L/ http://www.airliners.net/open.file/1272758/L/ http://www.airliners.net/open.file/1261172/L/ http://www.airliners.net/open.file/1224890/L/ Quote Link to post Share on other sites
David Walker Posted October 10, 2007 Share Posted October 10, 2007 And a larger version of the panel lines (though you'll have to print these out and tape them together): Quote Link to post Share on other sites
Najk Posted October 13, 2007 Author Share Posted October 13, 2007 (edited) Thanks for the help guys, it'll do a lot to my kit! :blink: Will post in progress pics, whenever I manage to get the kit started... //Niklas Edited October 13, 2007 by Najk Quote Link to post Share on other sites
David Hingtgen Posted October 14, 2007 Share Posted October 14, 2007 (edited) Main cargo door is 140 x 102 inches. That doesn't take into account the curvature of the fuselage. It's a 102in high opening. ::edit:: I see you're from Sweden, so metric would probably be more useful. 355.6cm by 259.1cm Edited October 14, 2007 by David Hingtgen Quote Link to post Share on other sites
