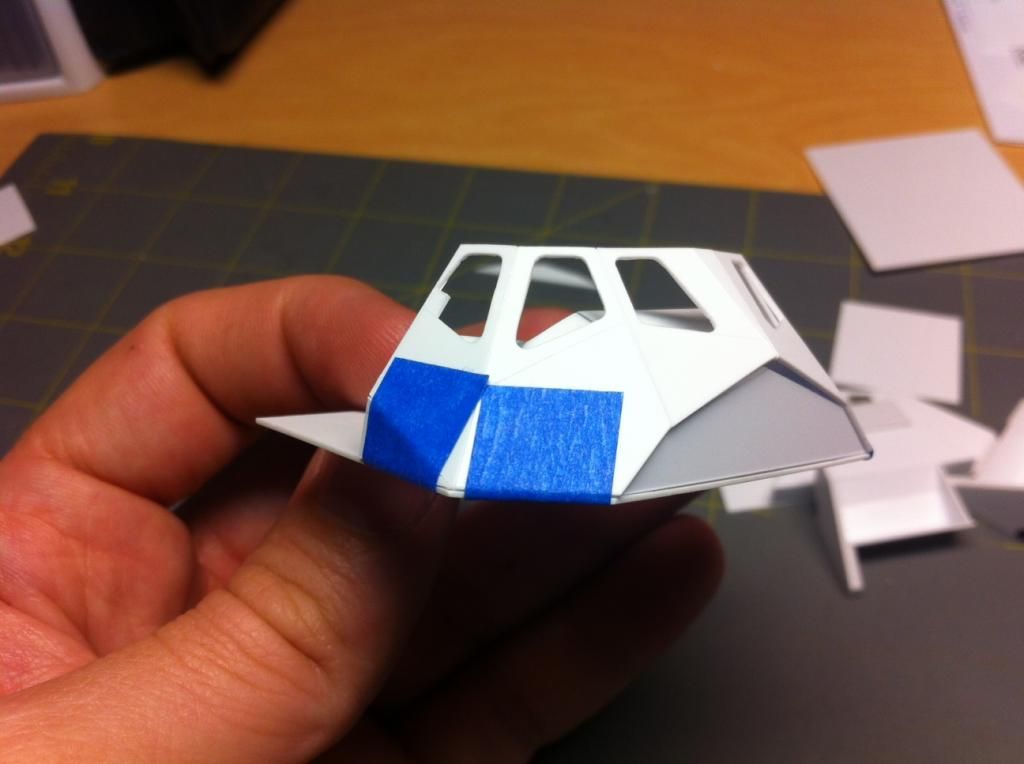

johnlove_mk_II Posted August 20, 2014 Author Share Posted August 20, 2014 This thing is starting to get tricky. Quote Link to post Share on other sites
egt95 Posted August 20, 2014 Share Posted August 20, 2014 This thing is starting to get tricky. Yeah. But it's looking really good. Mike Quote Link to post Share on other sites
crowe-t Posted September 6, 2014 Share Posted September 6, 2014 Very nice! Quote Link to post Share on other sites
spaceman Posted September 6, 2014 Share Posted September 6, 2014 (edited) Great modeling John, keep it up, I'm sure you can succeed this challenge. Edited September 6, 2014 by spaceman Quote Link to post Share on other sites

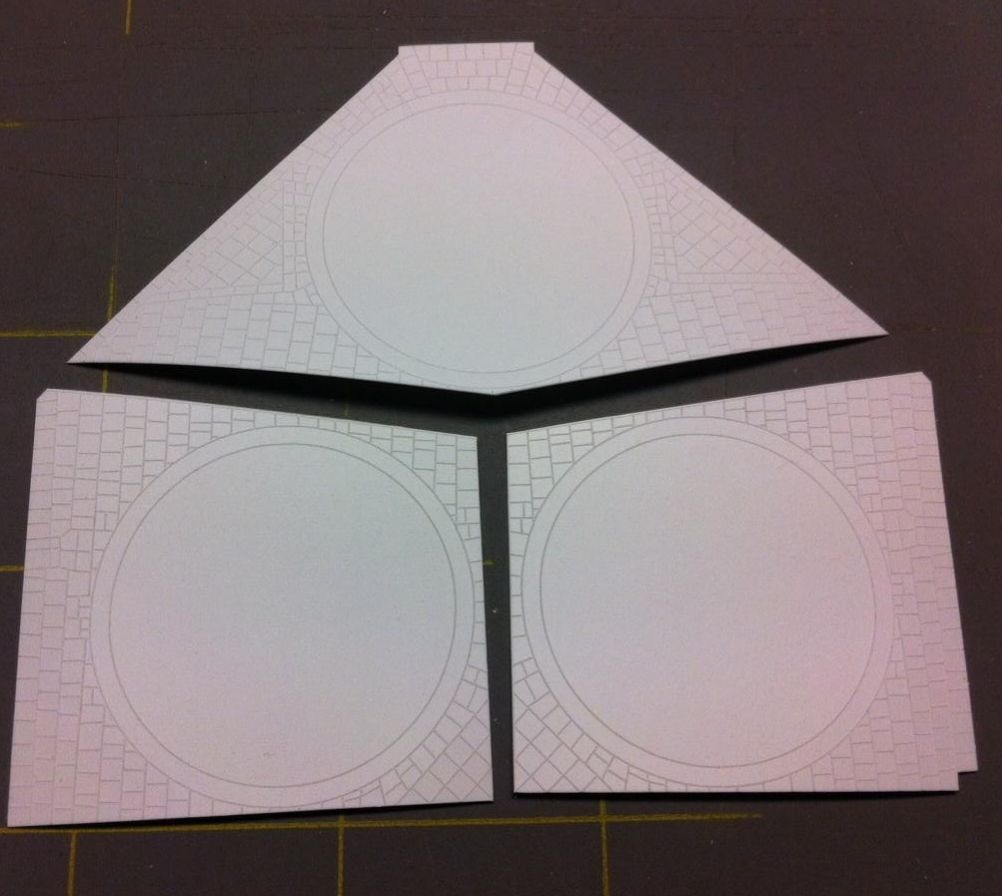

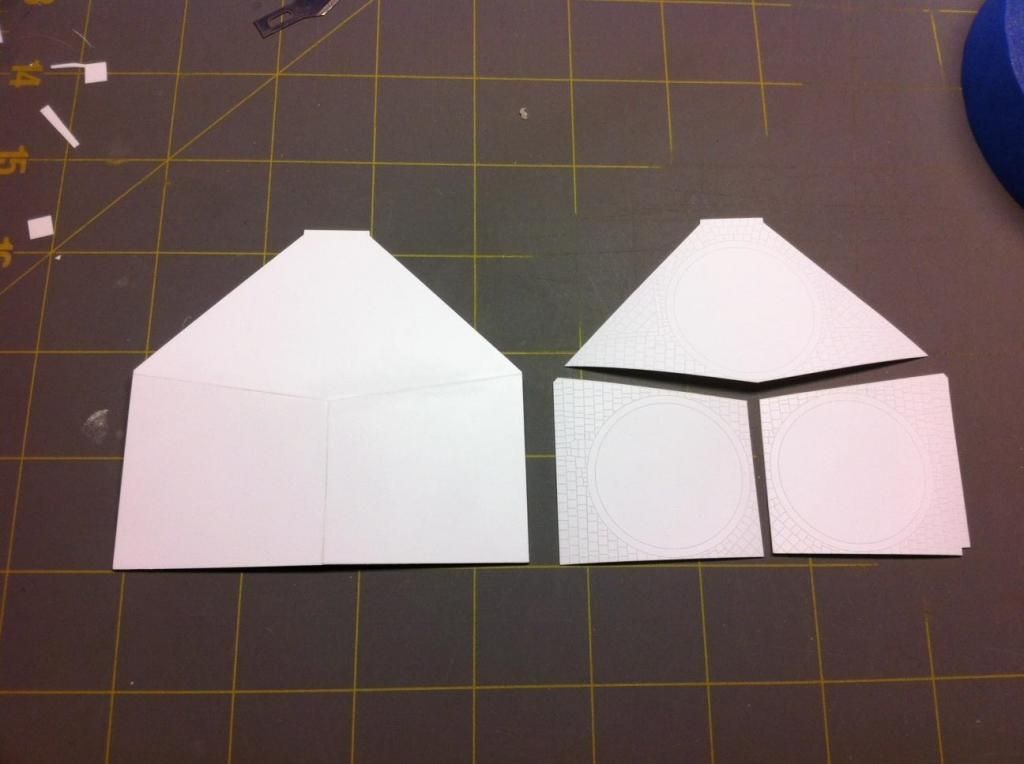

johnlove_mk_II Posted September 19, 2014 Author Share Posted September 19, 2014 A little update Took a break from the cockpit to start working on the aft SSME area of the orbiter. Tile patterns to be laminated when the bulkhead is in place. Quote Link to post Share on other sites
niart17 Posted September 19, 2014 Share Posted September 19, 2014 WOW! These bulkhead tiles are great! Really nice. Just one minor minor thing to point out. I believe the small triangle areas at the bottom is actually on another face slanting in and down. I'm sure I have a reference pic or drawing somewhere showing what I mean but I just can't find it right now. I could be totally off my rocker and be wrong though. Either way, these are awesome! Bill Quote Link to post Share on other sites
spaceman Posted September 19, 2014 Share Posted September 19, 2014 Hey John, Have you engraved the tiles? Quote Link to post Share on other sites

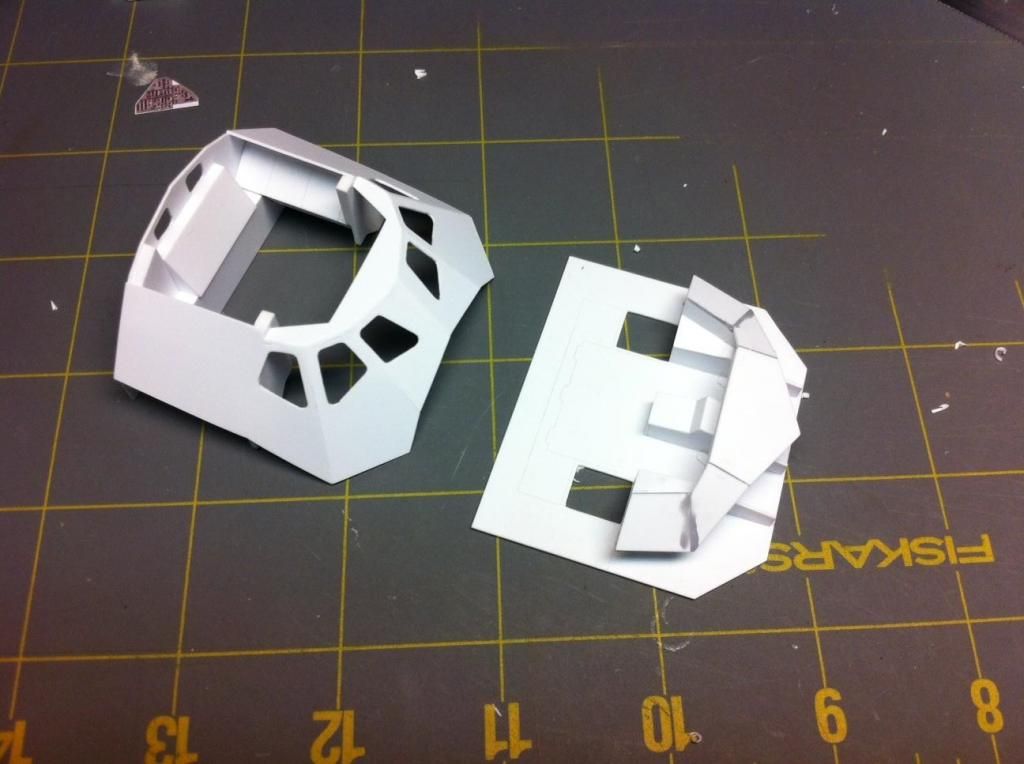

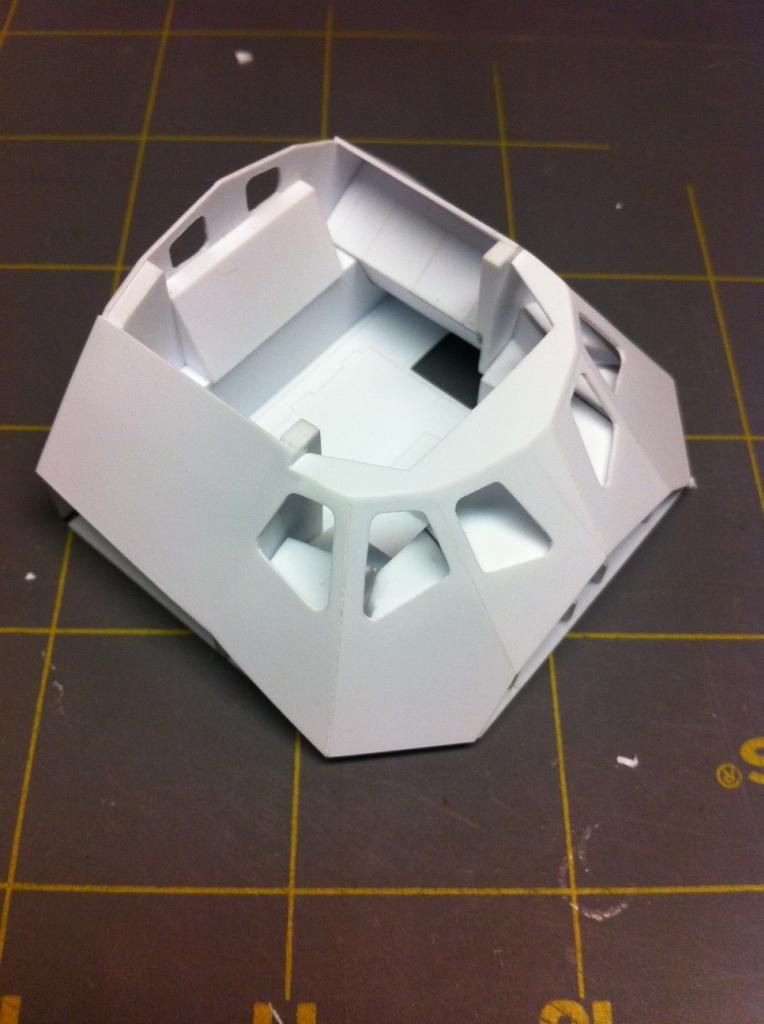

johnlove_mk_II Posted September 22, 2014 Author Share Posted September 22, 2014 Thanks Bill ... yeah I see the little triangle part between the two lower SSMEs. The transition is pretty subtle. Perhaps sanding it a little flat and using one continuous triangular piece of “tiles” would lend the proper effect. Hi Manfred, I used my little CNC machine to scribe the tiles … so much easier and more accurate. Worked on the Flight deck a little this weekend, I think it’s about time for some paint and detailing. Quote Link to post Share on other sites
niart17 Posted September 22, 2014 Share Posted September 22, 2014 John, this is looking really really good. I think when you get all this painted up and inside the fuselage it's going to represent the inner/outer skins perfectly. You're doing it just like the real thing. Very inspiring work! Bill Quote Link to post Share on other sites
spaceman Posted September 22, 2014 Share Posted September 22, 2014 F A N T A S T I C !!! Quote Link to post Share on other sites
K2Pete Posted September 22, 2014 Share Posted September 22, 2014 :jaw-dropping:/> F A N T A S T I C !!! Couldn't have said it better meself! You current shuttle builders are raising the bar way-y-y high! ... and it's a real pleasure to watch it all unfold! Pete Quote Link to post Share on other sites
crackerjazz Posted September 23, 2014 Share Posted September 23, 2014 That's some remarkable Hi-tech scratchbuilding :). Enviable skills and methods, John! Quote Link to post Share on other sites
Aussie-Pete Posted March 17, 2015 Share Posted March 17, 2015 Any photos of the completed cabin? Quote Link to post Share on other sites
B.Sin Posted March 18, 2015 Share Posted March 18, 2015 You know, you shuttle build is absolutely incredible! You have amazing talent, my hat's off to you sir. Brad Quote Link to post Share on other sites
johnlove_mk_II Posted March 19, 2015 Author Share Posted March 19, 2015 (edited) Hi Pete, Not yet, I kinda shelved the build for the time being ... but I have drawn some seats in 3D for possible printing. Unfortunately I'm finding that I'm kind of a project butterfly, flitting from project to project, never completing any. Oh, and thanks Brad. That’s very kind of you to say. Edited March 19, 2015 by johnlove_mk_II Quote Link to post Share on other sites
