twong Posted October 22, 2016 Share Posted October 22, 2016 (edited) Found this photo online and saw that the F-4B has WW2 bombs on the inboard TER's. Does anyone know if these are the same type as found in the Monogram 1/48 F9F-5 and Trumpeter 1/48 F9F-2 kits? Are they the smaller bombs supplied in those kits? Can those be used on the F-4B if I want to model one with a similar load? Edited October 22, 2016 by twong Quote Link to post Share on other sites
Andrew D. the Jolly Rogers guy Posted October 22, 2016 Share Posted October 22, 2016 I'm not a bomb expert, but, any chance those are actually just practice bombs? Quote Link to post Share on other sites
twong Posted October 22, 2016 Author Share Posted October 22, 2016 2 minutes ago, Andrew D. the Jolly Rogers guy said: I'm not a bomb expert, but, any chance those are actually just practice bombs? There is a similar photo in the Squadron/Signal USMC Phantoms in combat on page 9. The caption says they are WW2 bombs being used due to short supply of Mk.80 series bombs. The photos were taken in Vietnam. Quote Link to post Share on other sites
Andrew D. the Jolly Rogers guy Posted October 22, 2016 Share Posted October 22, 2016 Ah! Fair enough. Glad to know. Quote Link to post Share on other sites
twong Posted October 22, 2016 Author Share Posted October 22, 2016 The photo I found online that I posted above nor the book says what type of WW2 bombs but they look close to the ones in the Monogram and Trumpeter F9F kits though. Looks like the rectangular part between the fins are missing though in the above photo. If they are the same, it would be a different load than what you see with all the Mk.82's. Quote Link to post Share on other sites
onosendai Posted October 22, 2016 Share Posted October 22, 2016 It seems too small to be the WWII 250lb, maybe a 100lb with unknow fin. Quote Link to post Share on other sites

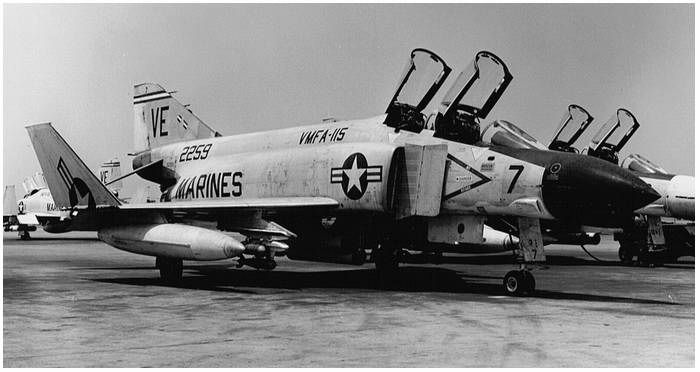

Finn Posted October 22, 2016 Share Posted October 22, 2016 Due to a bomb shortage of the Mk-80 series bombs they had to dig into old stocks,the ones in the pic look like they are about 100lb with conical tails that came out after the Korea war. The bomb body was probably left over from WW II while the tail section are a little newer. Here is another F-4B with the older bombs: Jari Quote Link to post Share on other sites
Finn Posted October 23, 2016 Share Posted October 23, 2016 Here is a large file, 58.9MB: http://www.talpo.it/files/tm-9-1325-200-bombs-and-bomb-components-usa-1966-329-pag.pdf on various US bombs and components from that time period. It looks like the top pic shows the M135 conical tail section that was added to a bomb body. Jari Quote Link to post Share on other sites
twong Posted October 23, 2016 Author Share Posted October 23, 2016 Thanks Jari, very useful info. Thanks Onosendai. Link to my sale/trade list. http://www.arcforums.com/forums/air/index.php?/topic/283315-fs-148-and-more-no-paypal/#comment-2698728 Does anyone have the smaller 250lb bombs as spares from the Monogram and or Trumpeter 1/48 F9F Panther kits they would like to trade for? I could use a least 12 of them. Also, does anyone have any of the 100lb bombs from the Accurate Miniatures WWII Armament set they aren't using? I could use all 8 or more if they can spare them. Quote Link to post Share on other sites
Finn Posted October 23, 2016 Share Posted October 23, 2016 Here is a F-8E with the older bombs: Jari Quote Link to post Share on other sites

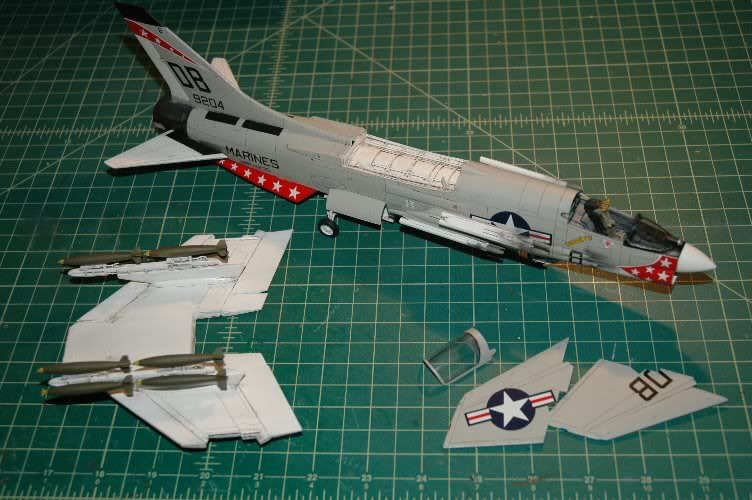

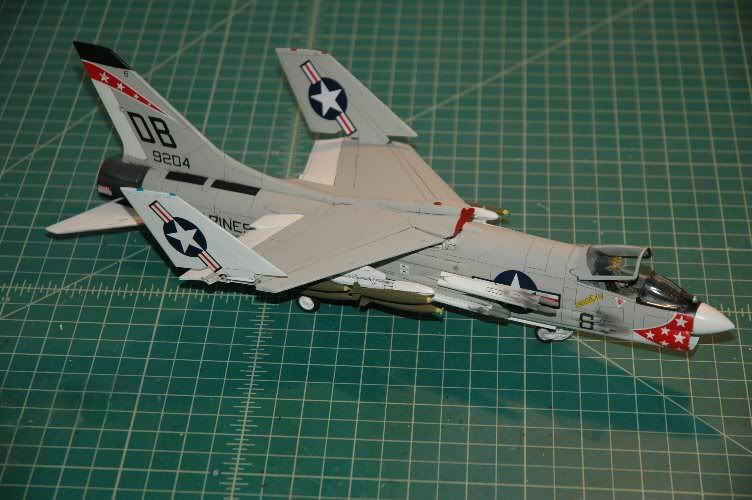

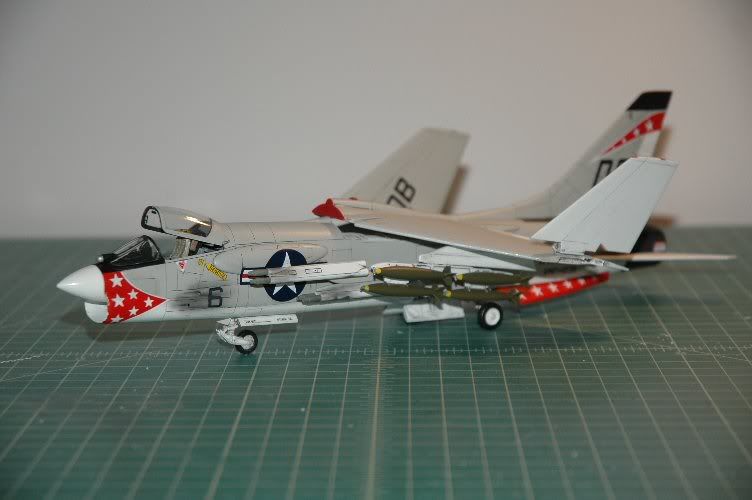

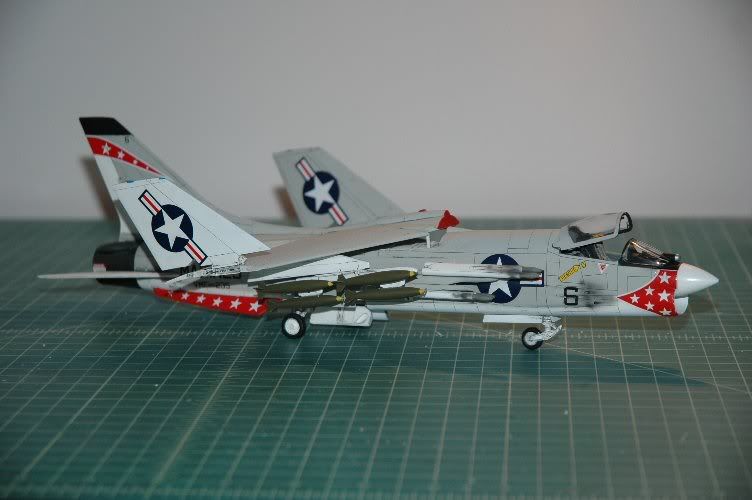

twong Posted October 24, 2016 Author Share Posted October 24, 2016 Thanks Jari! I have seen that F-8 photo already. I found it when I was researching my Monogram 1/48 F-8E build in those same squadron markings. I loaded mine with Mk.82 slicks though as I couldn't find any of those WWII style bombs. I have been searching and no one makes those particular bombs. I am going to try to use some WWII bombs and modify them somehow for my F-4B build. Here is my Monogram 1/48 F-8E. The engine duct bay I think was from the old KMC set. The Cockpit is from True Details. The Zunis are from the Hasegawa kit. The bombs and MER's are from the Monogram A-4E. Decals are a mix of Superscale and kit ones. Quote Link to post Share on other sites
Drifterdon Posted October 24, 2016 Share Posted October 24, 2016 The Tamiya A-1H Skyraider in 1/48 comes with a load of these bombs or something very similar. The fins might have to be modified a bit but they are small enough. Here is a link showing them. http://www.cybermodeler.com/hobby/kits/tam/images/tam_61073_parts4.jpg Quote Link to post Share on other sites
