F6F-5 Jasmine Models 1/48


Recommended Posts

Don't think that this is a well known modelmaker, so this is what you get when you order this kit

a rather small box:

which contains a bit of PE:









a bit of resin:












and I ordered some more goodies

a resin R-2800-W10 engine from Eduard



and resin MG's from  Eduard:



The F6F hellcat is a single engine fighterplane which served on aircraft carriers in the second world war and beyond. It was the successor of the F4F Wildcat (although the F6F was a complete new design, but it had a big resemblance with its predecessor, but was a lot bigger). In the beginning it was a competitor as a carrier based hunter with the F4U corsair, but the latter was mostly deployed from forward airbases due to some problems with carrier landings. From 1943 on it saw action in the Pacific, to counter the well known zero and other Japanese aircraft. Next to a heavier armament it had also self sealing fuel tanks and thanks to the radial engine it could also absorb a lot of damage. In total the type scored some 5223 kills, more than any other Marine aircraft during the war. After the war it stayed in service till 1954, mostly as a nightfighter.



The F6F-5 (or hellcat mkII) was an upgrade of the basic version with waterinjection in the engine for combat power, an geintegrated bulletproof windshield, reinforced tailplanes, new ailerons and a re-engineered cowling around the engine...



First blood will follow soon

Link to post
Share on other sites

first progress...



I've started with the wings, just to get a feel how it assembles, and how it is to work with:












As for now only a few pieces have been soldered, like the tip of the wing and the mountings for the MG's, which can still be removed. Now all the stringers on top of the wing need to be assembled.

I think I will need to make a combination of soldering and glueing, because soldering this material is not that easy...



Link to post
Share on other sites

first progress...



I've started with the wings, just to get a feel how it assembles, and how it is to work with:












As for now only a few pieces have been soldered, like the tip of the wing and the mountings for the MG's, which can still be removed. Now all the stringers on top of the wing need to be assembled.

I think I will need to make a combination of soldering and glueing, because soldering this material is not that easy...



Link to post
Share on other sites

Silenoz,

   I've seen a few PE skeleton builds in l believe 1/32 scale, and not only marveled at the complexity and detail, but how one can do this kind of construction with PE. Now your build in 1/48 scale which must be some what harder as soldering from what you've said doesn't always work well with those small parts. I'll be following along till completion.



Joel





Link to post
Share on other sites
  • 2 years later...

First, I apologize for jumping in to a discussion of a form of model construction with which I am totally ignorant.  My purpose here is to give anyone not familiar with the hobby a heads up on what to expect.

Having just started this model I am astonished at how difficult it is. Coming from a lifetime hobby of stick and tissue models, I was not ready for this!  First, they are incredibly tiny.  I started with the cockpit area, one of the most difficult it seems.  One demerit for ignorance.  I read mention of using solder in construction.  I just can't visualize this!.  How is it done?  The adhesive Bondic looked promising.  It is similar to dental adhesive, using UV light to cure.  Way too thick and messy.

I'm using CA (super glue).  I started with gel and found it's too thick, tending to leave big globs of glue.  Just too thick.  After some experimentation I ended up using ZAP thin CA, applied with a 0.5 ml syringe.  They are available in bags of 40 for $15.  Each one is useable for several hours before the CA kicks off.  The tiny size and long needle allows placement of minute drops of CA exactly where needed.  This works well anywhere there is more than point contact at the joint.

"Third hands" are useful.  A pair of them are handy to position the parts being joined.  $8.50 on eBay.

I would appreciate any helpful hints from those in the know, and any work-in-progress shots.

Link to post
Share on other sites

Amazing detail they are putting on the photoetch -- and your work on the wing looks inspiring.



Too bad they don't have something like this but just pressed into a sheet of styrene so that normal glues would work. Something similar to what they do with balsa wood, but have a bit of texture added by compressing certain areas as it gets die-cut.



Still, looks pretty impressive as it is.

Link to post
Share on other sites

I have entirely switched to Gator's Grip glue for photo etch assembly.  Thin it down with water to the point where you can apply it with a small pointy brush and it flows into the join by capillary action.  Dries quick,  and is strong with a limited flexibility.  Clean the brush with water often, and keep right on going.  I have found that it responds favorably to pressure such as clamping an instrument panel to the plastic kit part for a backing.  Love this stuff.



Rick L.

Link to post
Share on other sites
  • 1 year later...

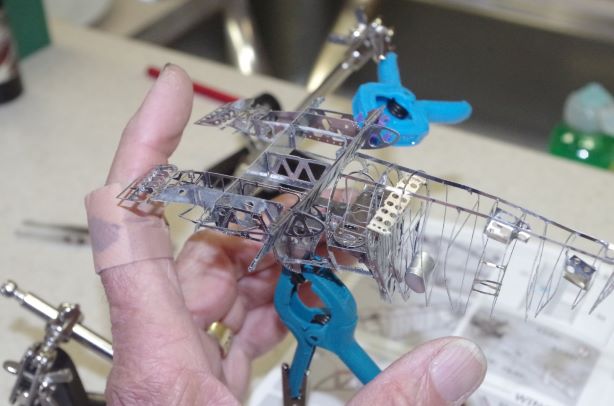

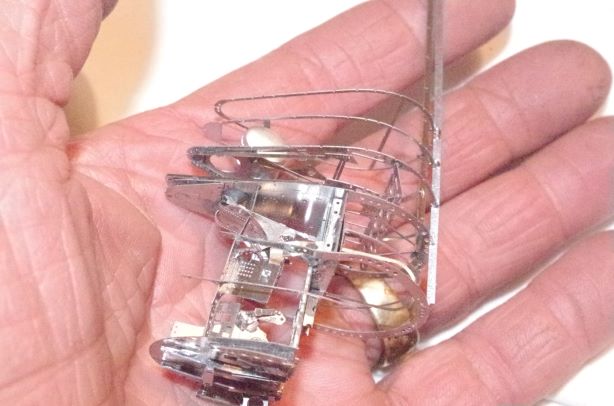

After about 20 hours I realize I'm just not good enough to finish this very challenging model.  If it weren't for the photo on the box I'd swear it can't be done.  I can't imagine the tooling it would take to hold these extremely delicate components in place at each joint, and getting in to apply the CA.  The "third hands" mentioned above are way too big and clumsy to help with the busier assemblies.  I gave up just aft of the cockpit.  The Gator's Grip looks promising.  I'll try it.

I have most of what I have completed on display at our local library.  What's there is still very impressive to the casual observer.  I highly recommend this kit for someone with experience with tiny and complex PE models before, and possesses incredible amounts of patience.  If you don't have both the patience and the experience, don't attempt it.

QUESTION: has anyone in the group actually finished this build?  Comments on how?



Link to post
Share on other sites
On 1/2/2021 at 3:36 AM, Newby said:

After about 20 hours I realize I'm just not good enough to finish this very challenging model.  If it weren't for the photo on the box I'd swear it can't be done.  I can't imagine the tooling it would take to hold these extremely delicate components in place at each joint, and getting in to apply the CA.  The "third hands" mentioned above are way too big and clumsy to help with the busier assemblies.  I gave up just aft of the cockpit.  The Gator's Grip looks promising.  I'll try it.

I have most of what I have completed on display at our local library.  What's there is still very impressive to the casual observer.  I highly recommend this kit for someone with experience with tiny and complex PE models before, and possesses incredible amounts of patience.  If you don't have both the patience and the experience, don't attempt it.

QUESTION: has anyone in the group actually finished this build?  Comments on how?





Don’t quit!



Chris

Edited by swimmer25k
Link to post
Share on other sites
9 minutes ago, Newby said:

Did you build this? I'd love to see photos of the construction technique. How were the components held in place while attaching? What adhesive was used????

I don’t have too many in progress pictures.  I soldered most of the parts together.  Much better and cleaner than using super glue.

Link to post
Share on other sites
  • 1 month later...
3 minutes ago, Newby said:

I'd dearly love to see a soldering iron small enough to be of use here.

I use a Weller with a fine tip. I will get some solder on the tip after tinning and place it over a fluxed joint.


Stainless is more difficult to solder than brass, so it needs more heat.

Link to post
Share on other sites

Sir,

What you get out of this build:

A completed model;

A group of supportive model builders to help you along;

A stronger sense of confidence of your skills, even if you think you did okay, but with the desire to build another and confidence of getting better;

A set of skills that keeps growing with each build you do;

A proud moment of accomplishment.



Have a look into youtube for some advice as well. The source may not be the modelling videos, but, soldering is used in many different hobbies...and they may show you how to solder in small areas or applications. Take those lessons learned and then apply to your hobby.



CA Glue - BLACK IC-2000 specifically is what I would suggest. It helps me in two ways, visually and is rubberized (more flexible). Then get some debonder, and micro applicators. Get all this off amazon.



Using the CA glue, apply what you need as sparingly as you can. Then with the applicators dipped in debonder wipe away the excess CA  once it has set. This will clean up your excess CA. However using the black may not be what you want due to the color and your skeleton model, something to consider.



Hope this helps.



Cheers


AFM

Link to post
Share on other sites

Swimmer,

Thanks for the info.  I'll try soldering on some scrap first, then on some of the more open structures.  No flux?  Should be an interesting trial.  Wish me luck!



AFM,

I agree wholeheartedly.  I've enjoyed the "proud moment of accomplishment" from the first Monogram Speedi-Bilt Spad in the early '50s to the flying scale stick and tissues I've enjoying for the last several years.

PE modeling demands a whole new skill set of course, one that challenges my reduced fine motor skills but rewards the hard-earned progress.



Onward!

Dave
