balalaika82

CH-47D

Recommended Posts

Hello fellows!



I have a CH-47D 1/35 scale, Id like to ask the following question.



Can  I put an adhoc M240 or minigun mounts on the windows and doors or is that only configuration only for MH-47?

Does all the CH-47 sports no guns at all?



thanks a lot!



Iking



Share this post


Link to post
Share on other sites

Don't know about a minigun but 7.62 (240 or 60 depending era) would be ok. Two up front, one on each side and a tail gun.

Edited by Tank

Share this post


Link to post
Share on other sites
4 minutes ago, Tank said:

Don't know about a minigun but 7.62 (240 or 60 depending era) would be ok. Two up front on each side and a tail gun.

awesome! thanks Tank! I ave 2 spare M240 I might use it instead :)



I find it bare that the chinook is a big fool chopper without any gun 😄



great thanks!

Edited by balalaika82

Share this post


Link to post
Share on other sites

As posted above, US Army CH-47Ds usually have two 7.62mm MGs (M240Ds on current models) up front.  US Army MH-47E/G have miniguns in the same location.



One 7.62mm MG in the starboard door, and the other out the port window directly across from the door.



Starboard side





Port side (M60D as this is an older pic)

DSC_5589%20CH-47D%20215%20left%20front%2

Related image



Both sides




The ramp gun may or may not be installed, depending on what the ship is carrying.  If it is just troops, it will usually be carried.  If it is cargo, usually not since the mount gets in the way of offloading the cargo.

image.jpeg.e8d24dc56e5a1148c704bfa8df1943d0.jpegA U.S. Army Task Force Brawler flight engineer mans the ramp gun of a CH-47F Chinook to provide overwatch while conducting a personnel recovery exercise with a Guardian Angel team assigned to the 83rd Expeditionary Rescue Squadron at Bagram Airfield, Afghanistan, March 6, 2018.

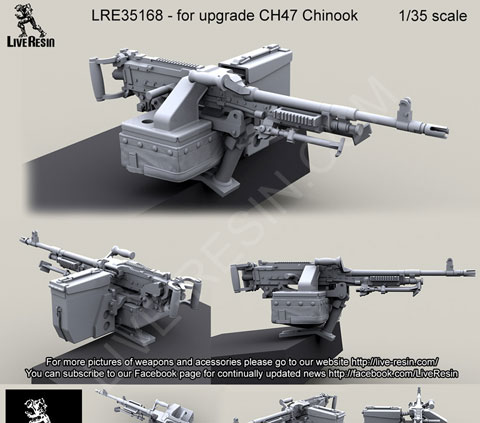

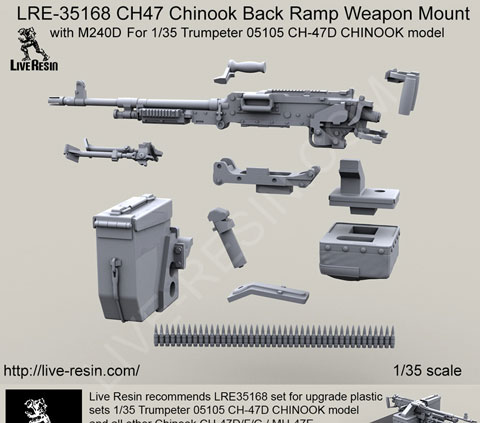

Live-resin makes mounts for them.






Edited by HeavyArty

Share this post


Link to post
Share on other sites

I do not know about US Army Chinooks, but in the RAF we could fit mini guns to the front right and left windows and have the M240D on the ramp. If you can find some pictures of RAF Chinooks being used in the Gulf War 1991 by the Special Forces flight they may show them. The had tubes mounted by the guns to catch the spent cartridges. This combination has been used in many Operations post the Gulf one, or some sort of variation of it.



Have a look here.



https://www.aviationphotocompany.com/p934046062/h35de1aa2#h35de1aa2

Edited by Jabba29

Share this post


Link to post
Share on other sites

great thanks Jabba and HeavyArty!



I will see if i can scratchbuilt the mounts it it is possible with my spares :)



The photos are lovely!  many thanks again!:)

Share this post


Link to post
Share on other sites
