Hi all

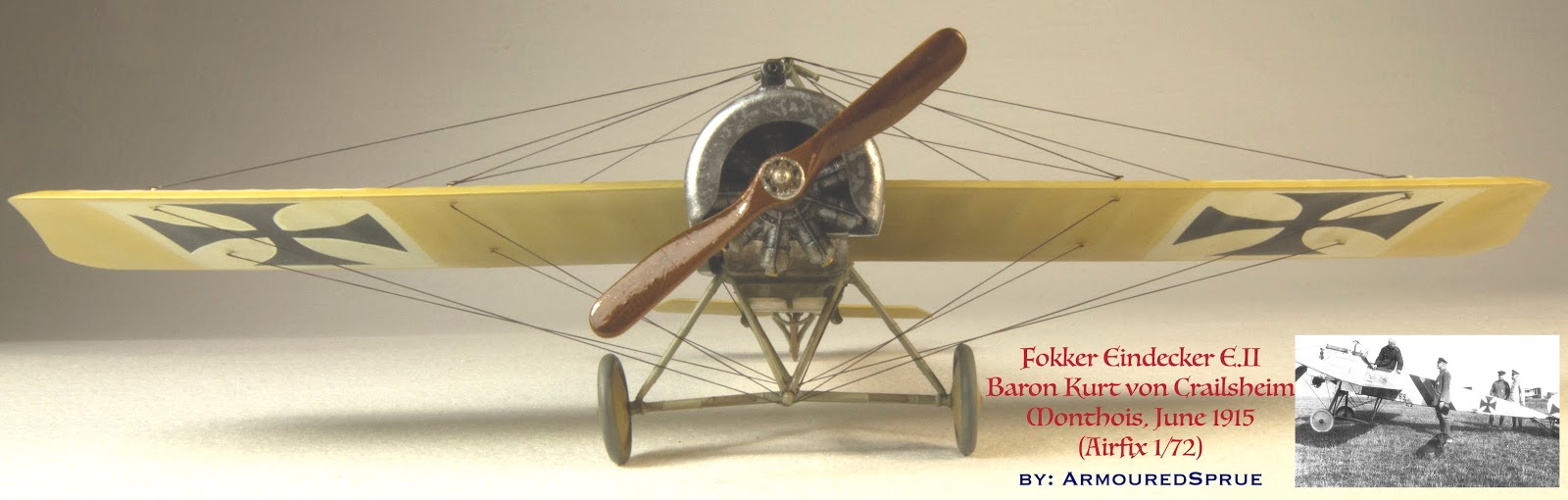

This is my next project: FOKKER EINDECKER E.II "69/15", Baron Kurt von Crailsheim, FFA 53, Monthois, France, October 1915.



Baron von Crailsheim scored the first (and his only) air victory for FFA 53 Eindeckers

I'll be using the Airfix kit 01086 in 1/72nd scale.



The art work(as for most recent Airfix releases) is very appealing



Two grey sprue, very crisp details, no sink marks or flash

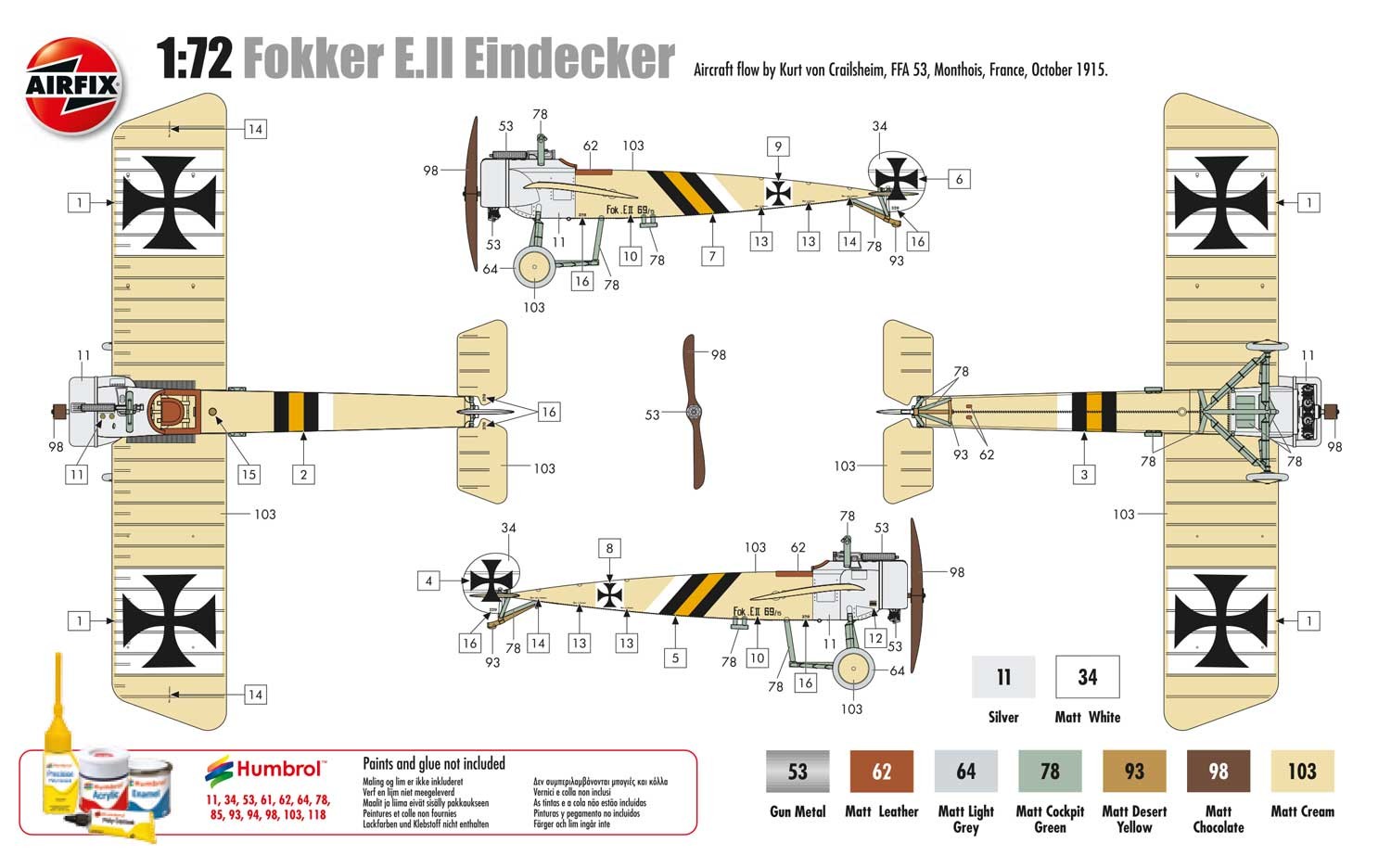

The box back with the painting and decalling instructions


Since this will be my first ever WWI project, I'll keep it basically straight from the box. However, I'll add a few things that I've noticed are missing (the windscreen in front of the cockpit, harness and the rigging).


Oddly, I decided to start this building by the propellers. The kit brings two propellers types to chose from. One from Garuda Propellers (wider paddles) and one from Germania Propellers (slim paddles). I used the following technique to paint the wood laminated propellers:


For the Germania propeller (lighter in colour on the photos below);


  • Paint the part with XF-02 Flat White
  • Watercolour pencil Brown and Ochre to make the wood veins
  • 20% Gunze H91 Clear Yellow + 80% thinner
  • 20% Gunze H92 Clear Orange + 80% thinner
  • Mr Color C218 Aluminium for the metal centre.


For the Garuda propeller (darker colour on the photos below);

  • Paint the part with XF-02 Flat White
  • Watercolour pencil Brown and Ochre to make the wood veins
  • 20% Gunze H91 Clear Yellow + 80% thinner
  • 10% Gunze H92 Clear Orange + 10% Gunze H93 Clear Blue + 80% thinner
  • Mr Color C218 Aluminium for the metal centre.


After painting with XF-02, use various browns shades using a pointed brush to create wood grain in the Germania propeller



You can either draw it on the piece or use the brush to paint it, blende it with some water if desired



Next steps is to add colours with the various clear shades





Front view: Left the Garuda propeller and on the right side the Germania propeller



Back view: Left the Garuda propeller and Germania on the right side

I'm still undecided which one to use.


Next I started on the cockpit.

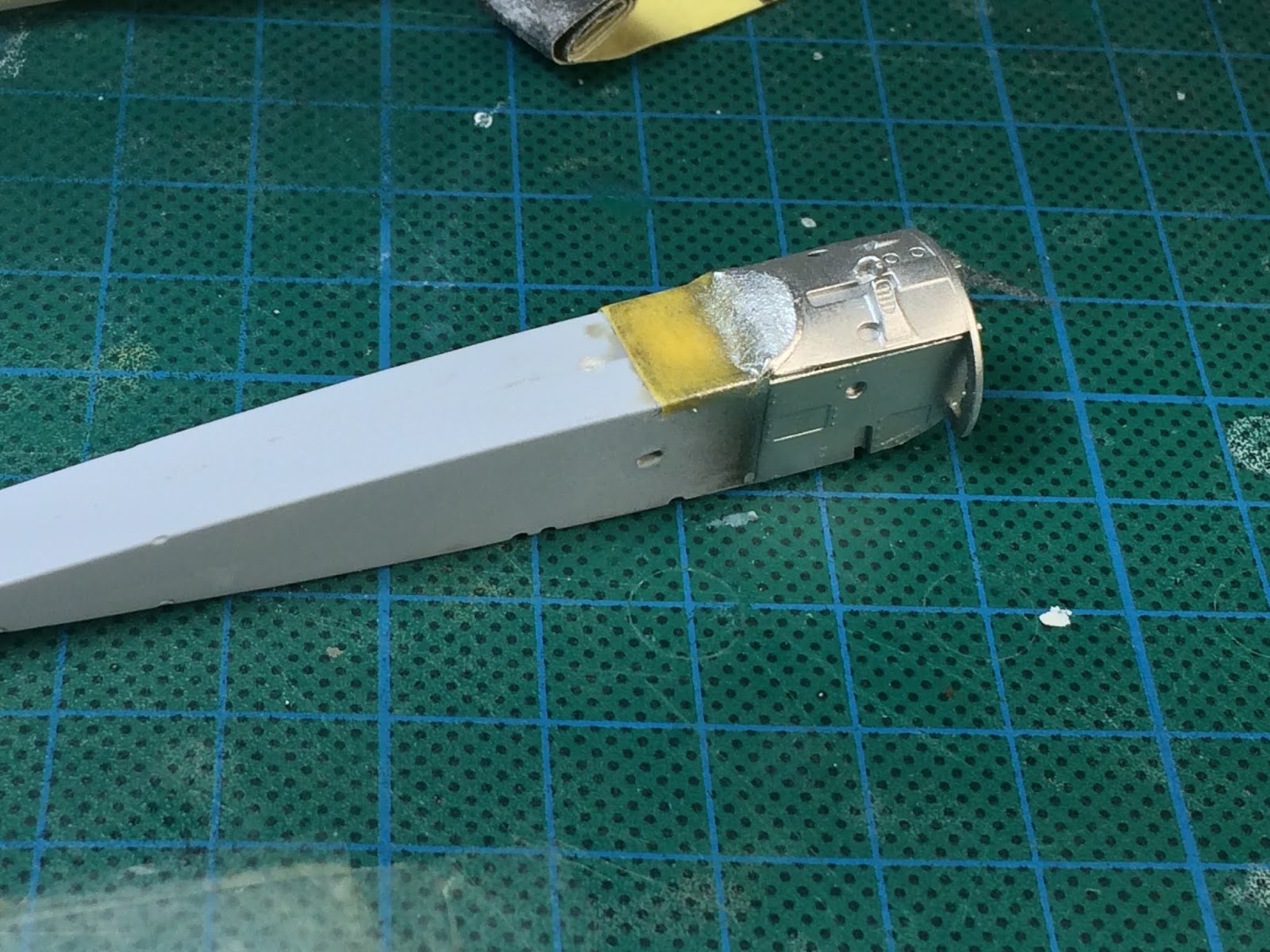

The first thing I've done was to close some annoying release marks.



Only the one on the front of the cockpit would be visible and required to putty

I've used the same technique used to paint the propellers to paint the floor board and back of the seat. In this case I've used the lighter wood colour.



After the XF-02, watercolour pencils were used to simulate wood


For the first time I decided to try the Mr Metal Color lacquer paints. I don't ever use Alclad due it's extreme smell and I'm allergic to it. Therefore it seems to be a viable option.



Used for the first time and I was really impressed with the results and quality of the paint

Airbrushed MrColors 211 - Chrome Silver on the "metal" parts using the following settings: 1 paint : 2 Mr Levelling Thinner (MLT) @ 15psi. The result was outstanding and I became a fan to it.

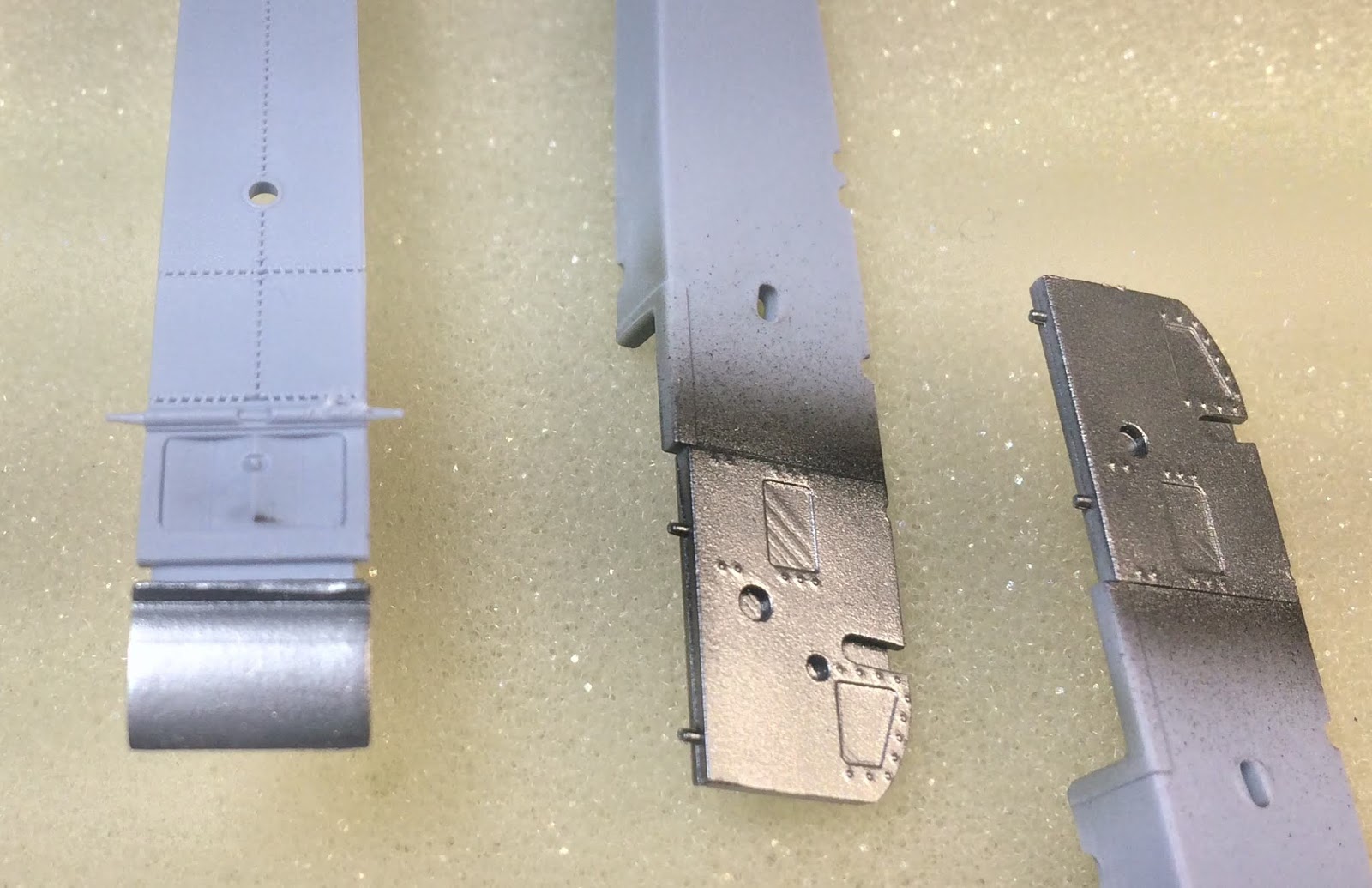

Metal parts sprayed with MrColors 211 with any prior preparation on the plastic.

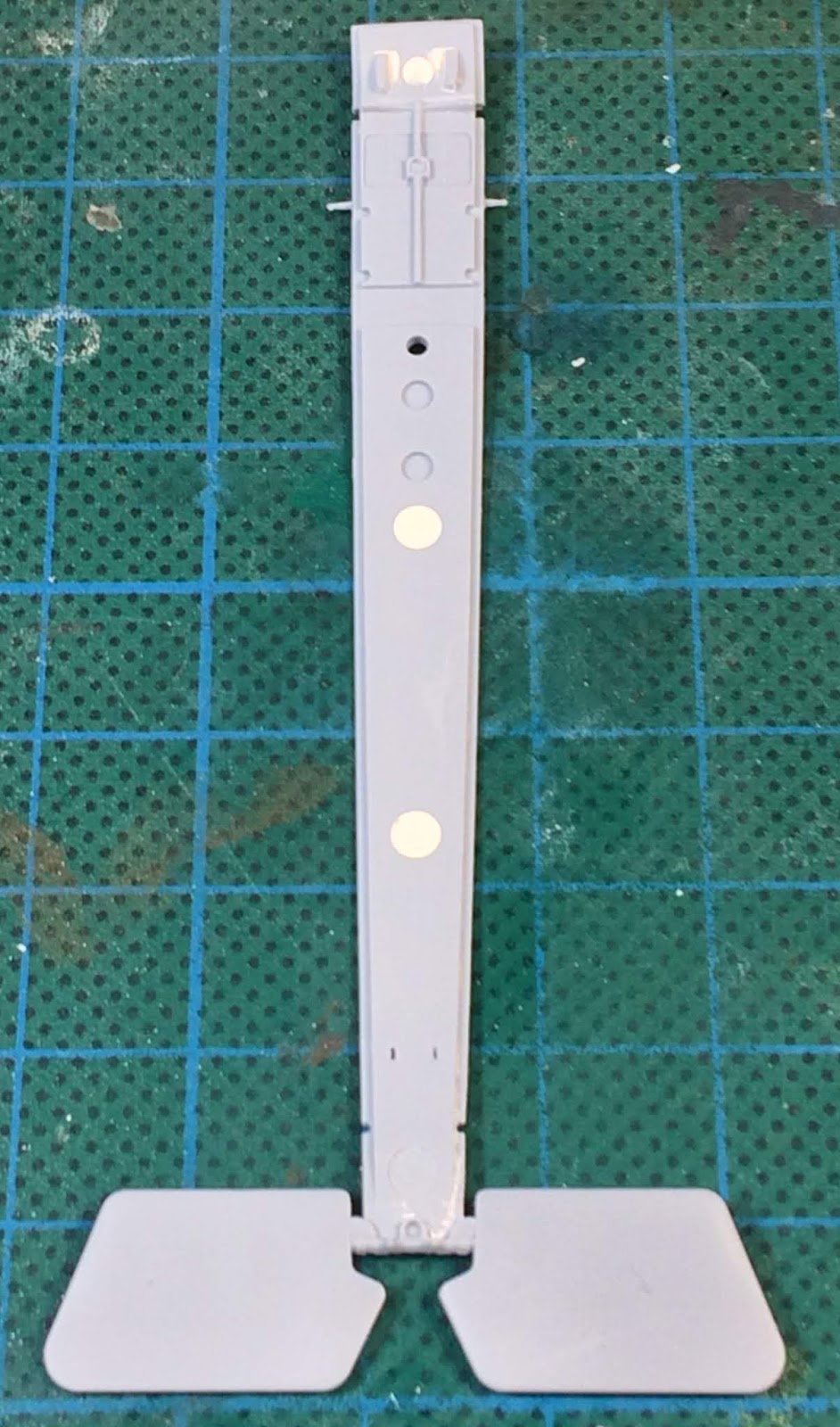

Fuselages halves ready to be glued together



I've added some synthetic fibre harnesses from my spare parts box. Maybe not the correct one but will do the job on this scale. I also did improve the handle on the control stick. The part is hallowed but comes as a single flat piece of plastic in the kit


Cockpit masked and ready for the next painting task

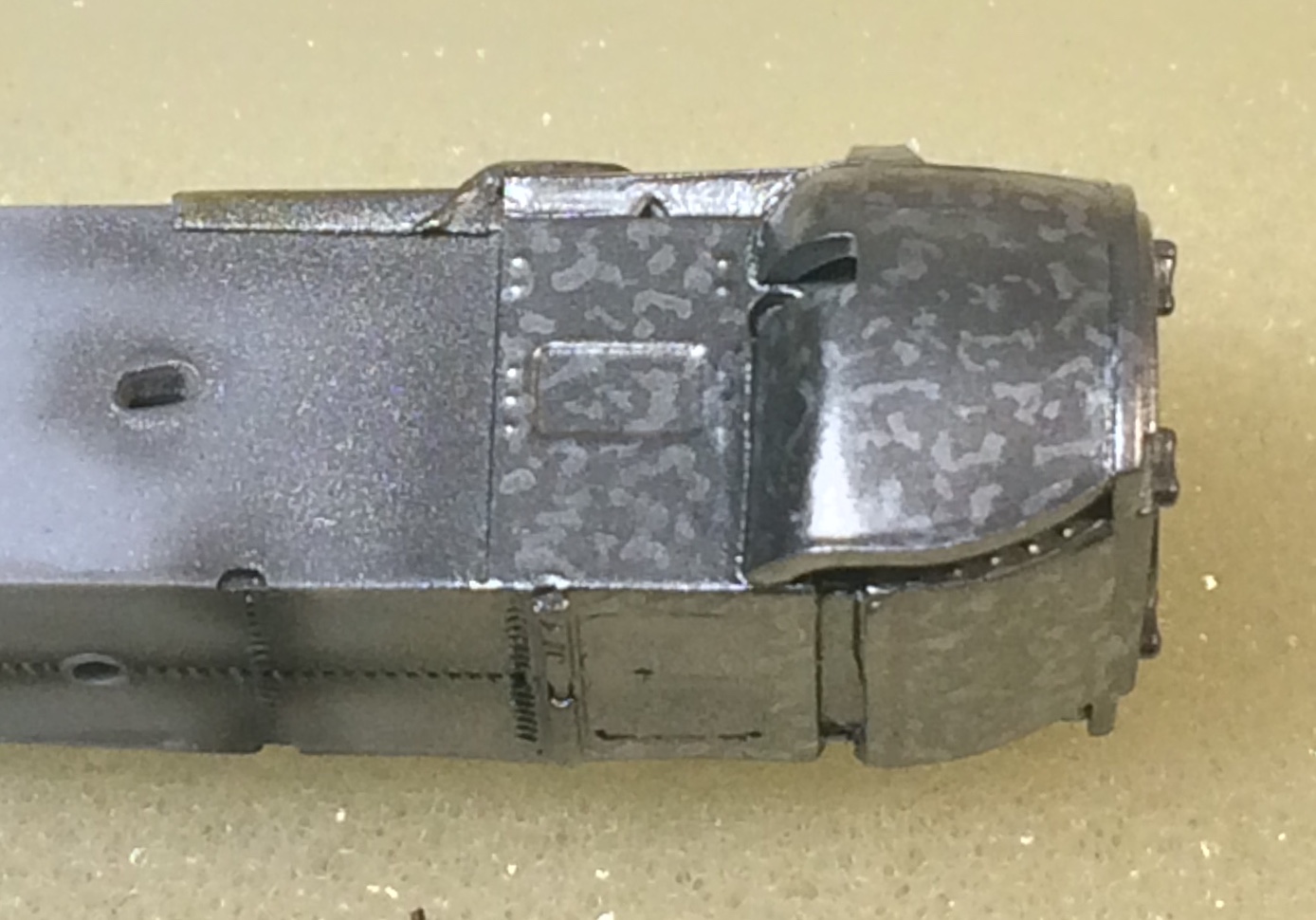

The Fokker Eindecker had a very distinctive metal characteristic. All Aluminium panels  and cowls remained unpainted and were given a "squiggly turned" finish.

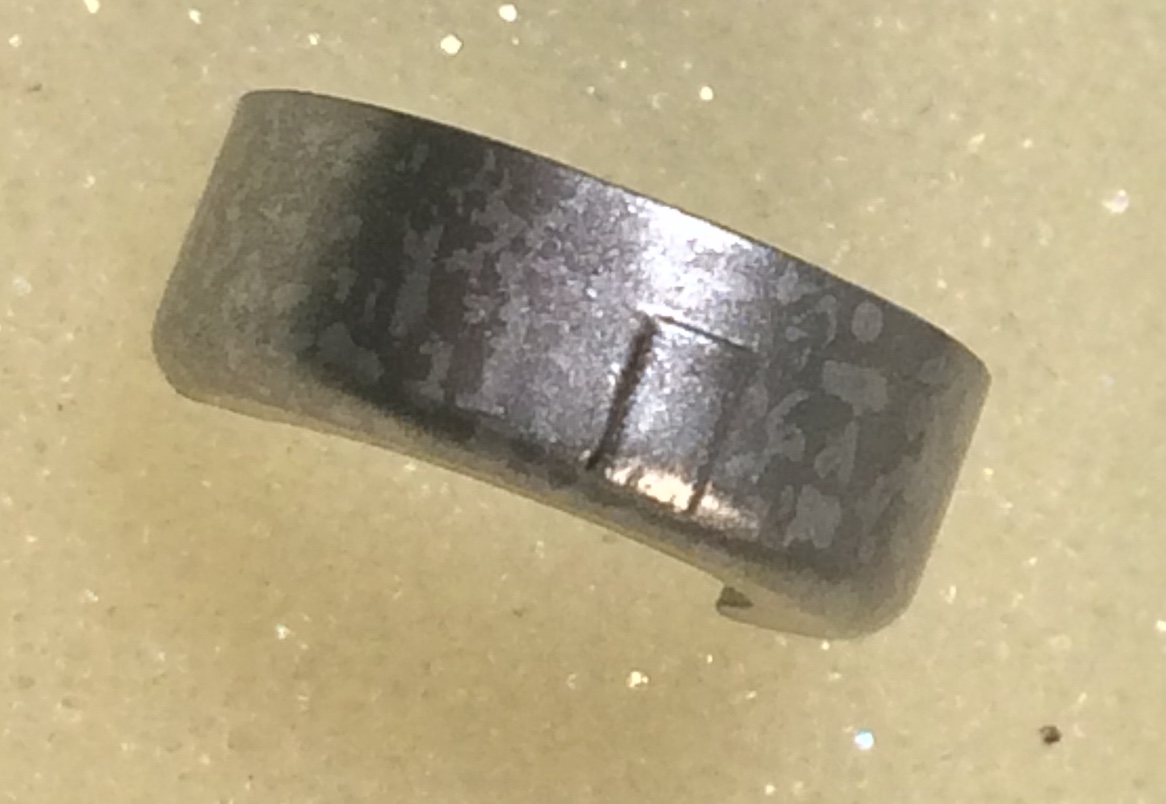

Please observe the squiggly turned finish on the cowl

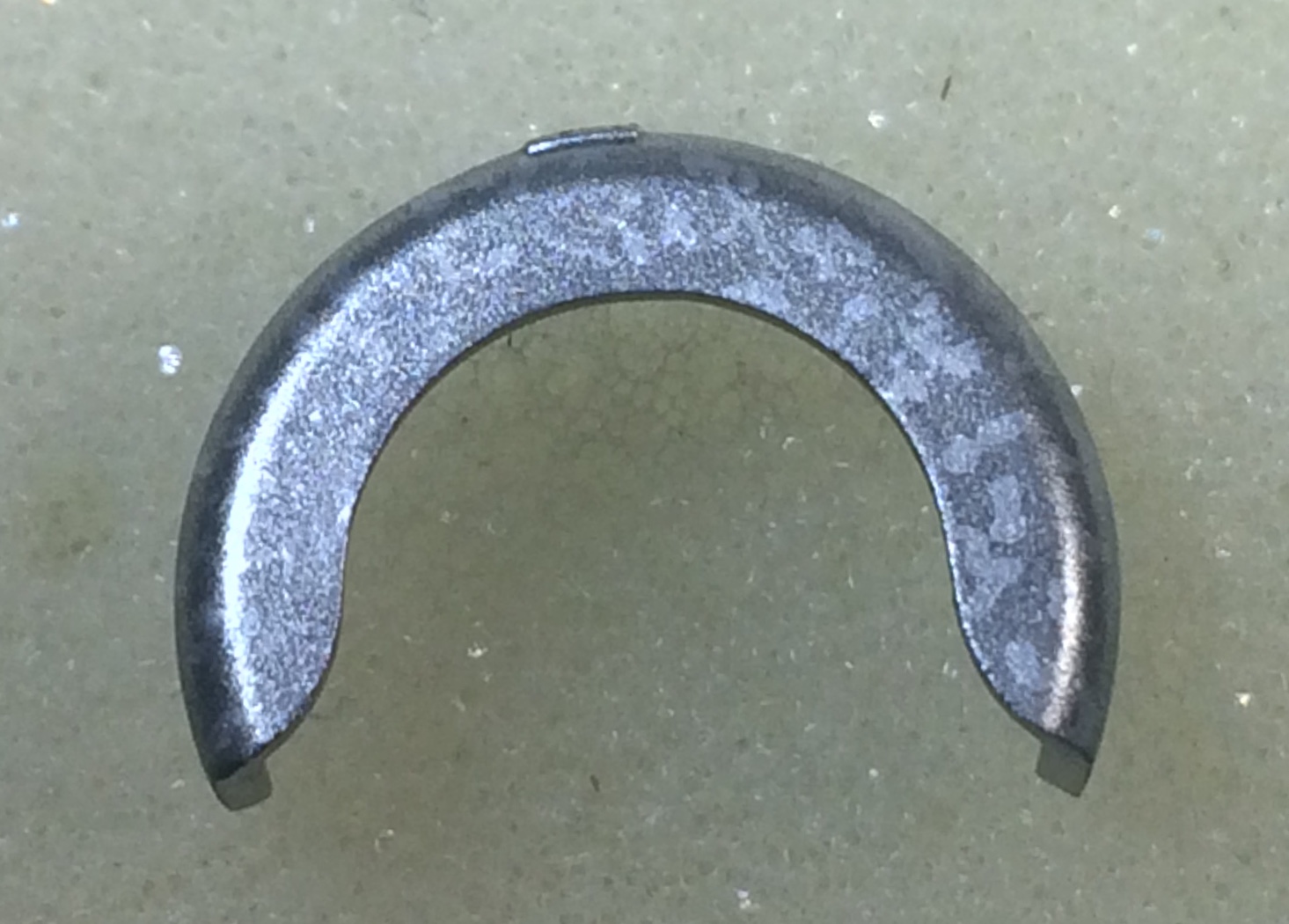

Since the beginning of this project I was trying to figure it out how to represent it in this small scale. I came up with this technique that I was happy with the result.


  • First airbrush the metal parts with Chrome Silver (211)
  • Spray a coat of Tamiya X-19 Clear Smoke (40% paint : 60% Thinner)
  • Brush paint MrColor C218 Aluminium in format of the squiggly marks
  • Airbrush a final coat with MrColor C159 Super Silver (40% paint : 60% MLT)

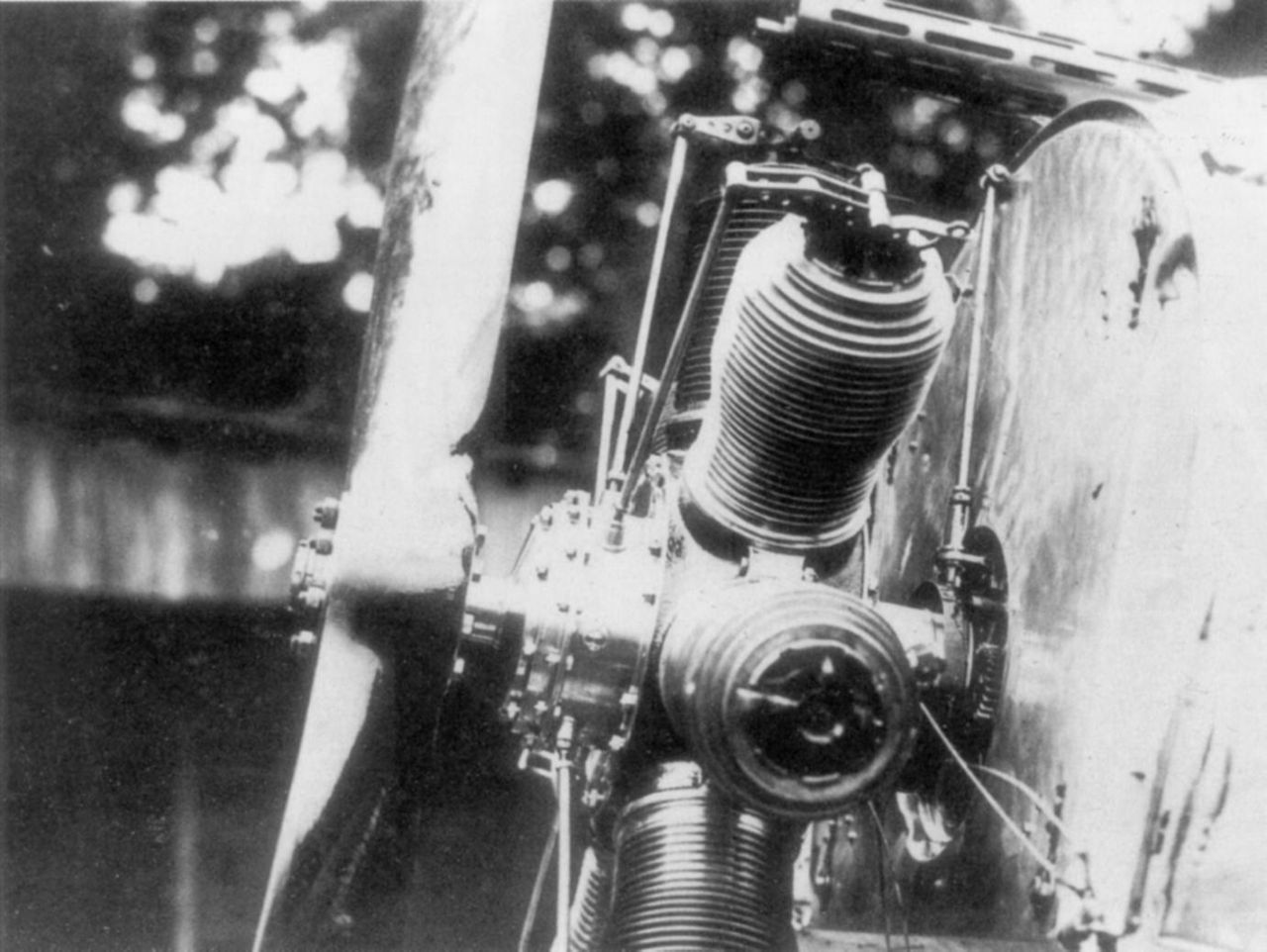

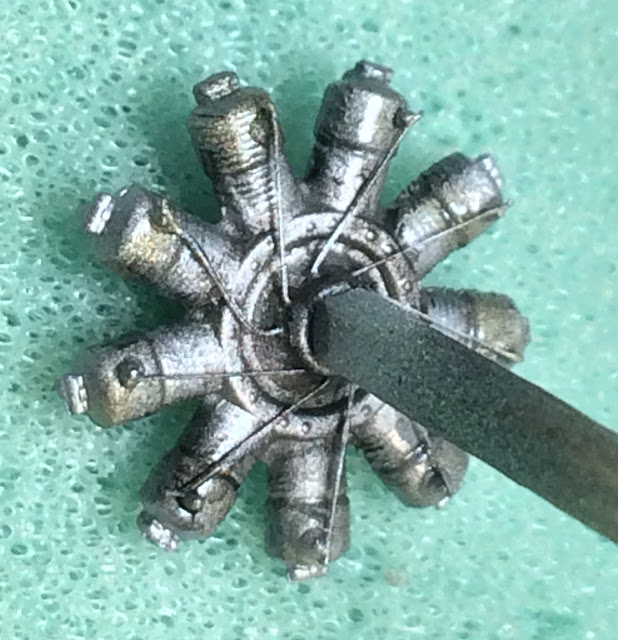

Next in my list was to add some detail to the engine. The Eindecker E.II was powered by a 100hp Oberursel U.1 (which was a license built 100hp Gnome Monosoupape).




I added the ignition wirings to the cylinders using EZLine fine.

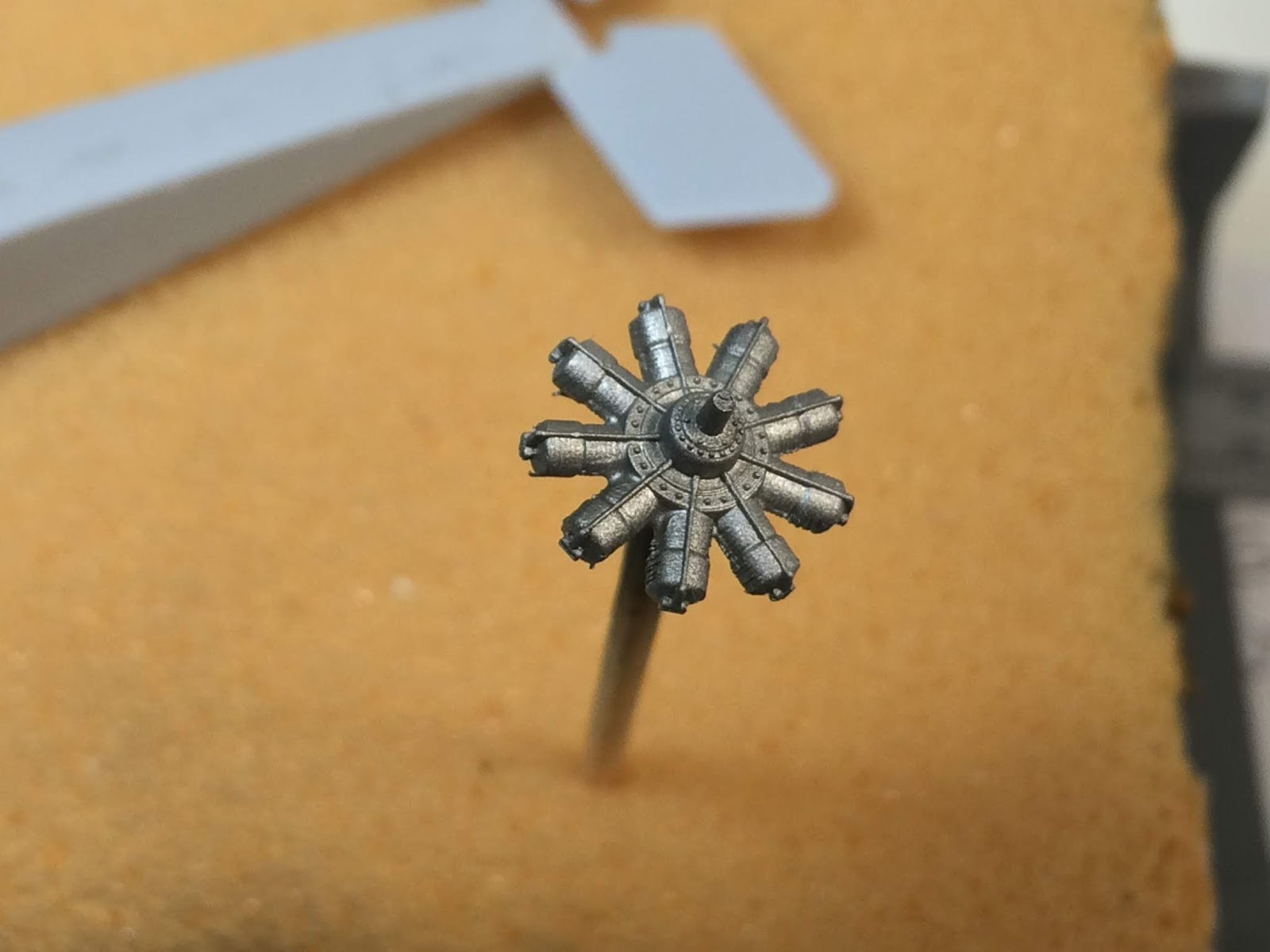

After a first base with X-01 Black I sprayed it with MrColor C159 Super Silver (50% paint : 50% MLT @ 15psi)




Following I did spray the cylinders only with:


  • 1st: 20% X-19 Clear Smoke + 80% thinner
  • 2nd: 20% Gunze H91 Clear Yellow + 80% thinner
  • 3rd: 20% Gunze H93 Clear Blue + 80% thinner
  • 4th and final, Tamiya Panel Accent BLACXK wash.

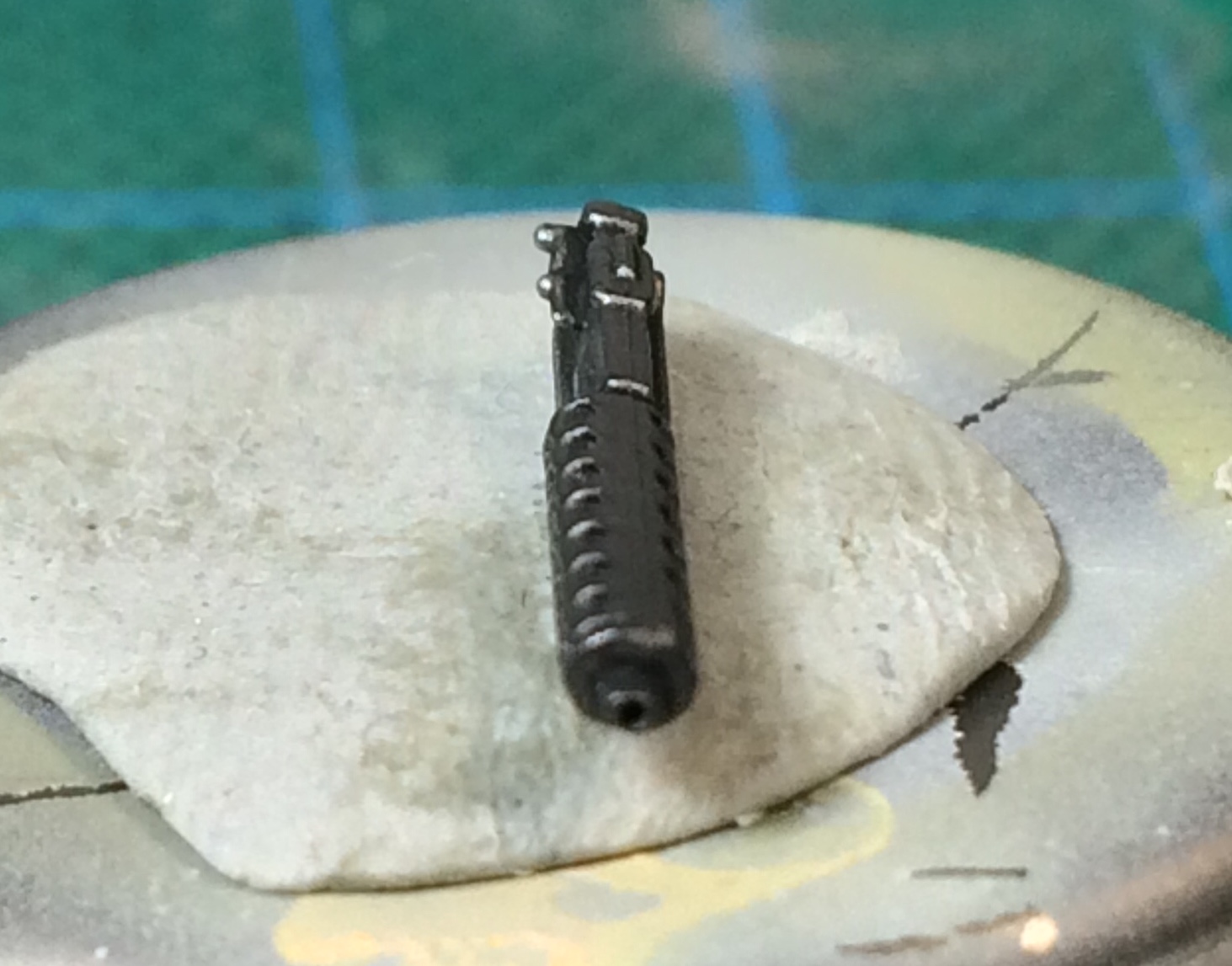

The Eindecker was equipped with an IMG 08 "Spandau" 7.92mm machine gun. Obviously the kit would benefit from an aftermarket representation of this machine gun. However, I have decided to build it as most out-of-the-box as possible, so I just painted the piece XF-01 Flat Black and had some graphite powder rubbed into it afterwards.





A new aftermarket machine gun would add value to kit. Note how characteristic it is

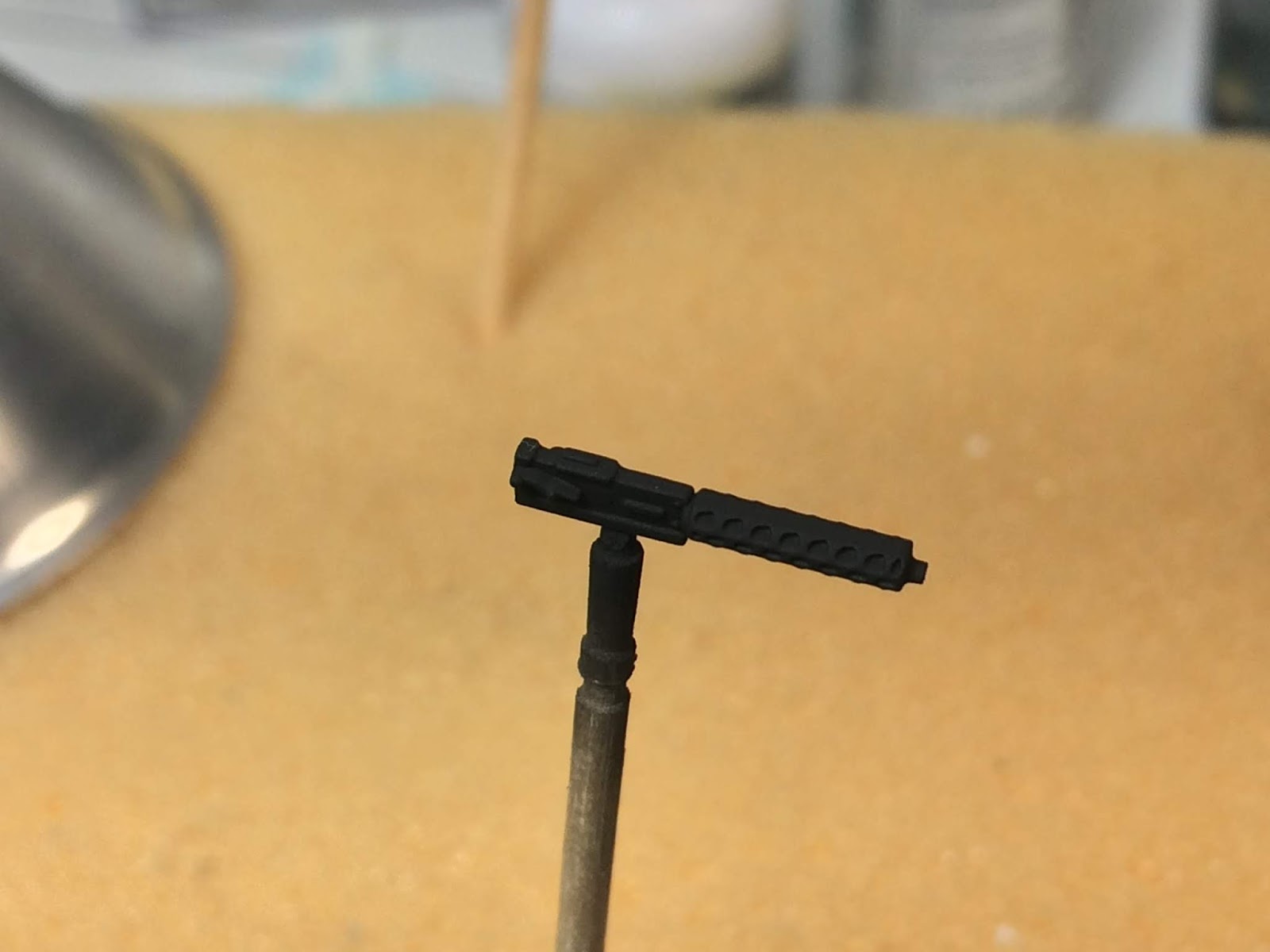

XF-01 Flat Black applied



Add caption



Graphite powder was rubbed overall





I did open the machine gun barrel to add some detail


Fuselage is now masked and ready to get painted.









To be continued!



Link to post
Share on other sites

Progressing with this building very steadily, mainly because I'm grounded home due to a recent knee operation. Anyway! The next step was to start with the painting.


I've read so many reviews over the internet and one thing that was common to all is in regards to the fuselage band decals. They don't match properly. So I decided to to paint those marks. Since I was about to paint it, I decided also decided to paint the big white squares on the wings and fuselage. This is because the decal would be positioned just on the top of the rigging points and I would have to use few decal solving solutions to fix it. In the end they will look nicer. However, I will cut and use the decals for the German crosses.

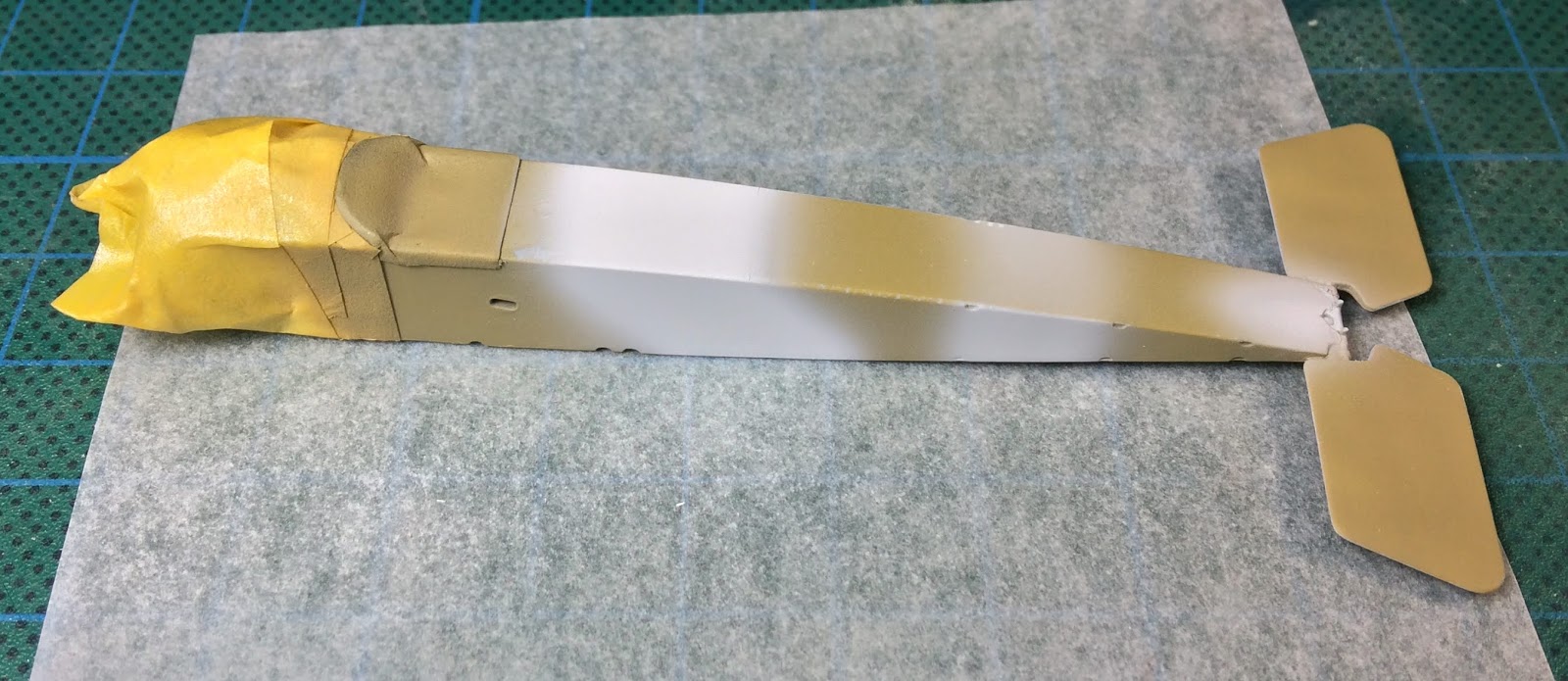

The first thing Ive done was to spray Tamiya XF-60 Dark Yellow overall to uncover any mistake or gaps to be corrected (had some minor ones easily fixed). I still have not decided what colour to use for the fuselage but this will give me an stating point.


Then I painted the white areas using Tamiya XF-02 Flat White with a few drops of Future (1 paint : 1 Future : 2 X-20A @15psi)

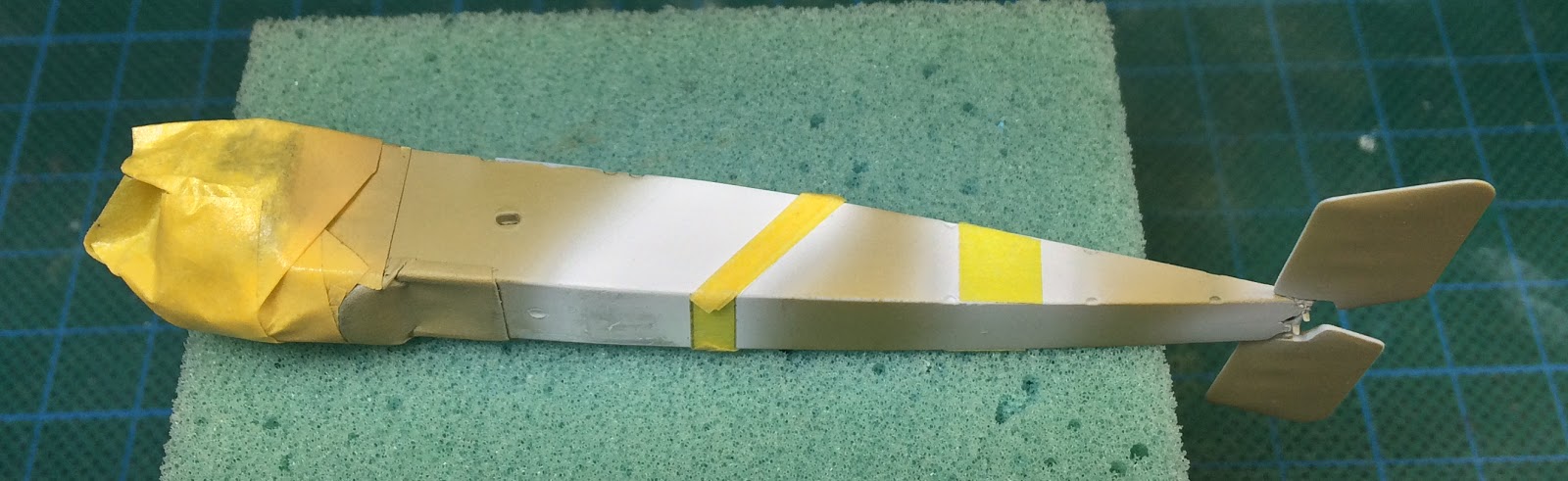

White added to the fuselage band

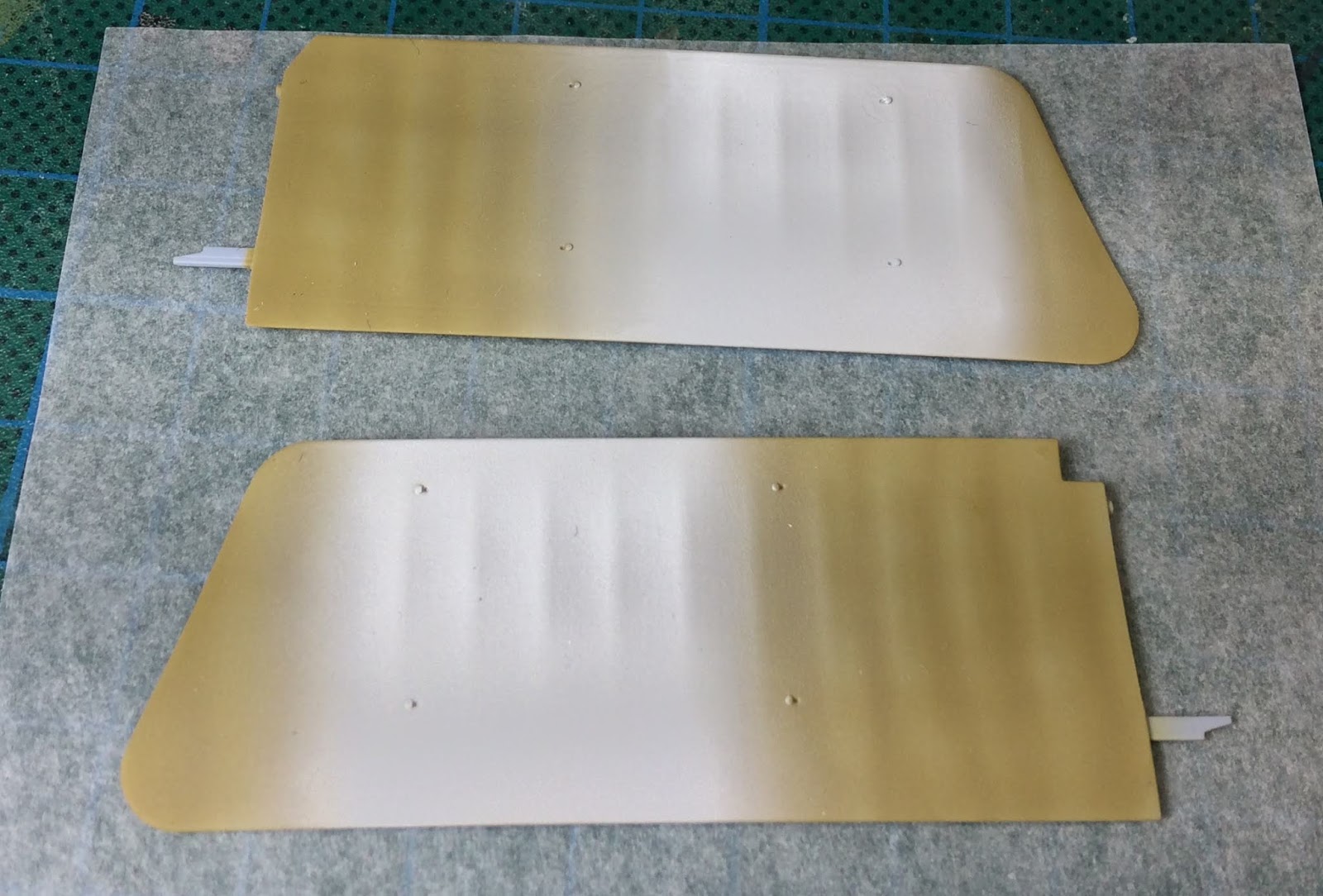

Wings top side with white area painted


Wings underside with white area painted

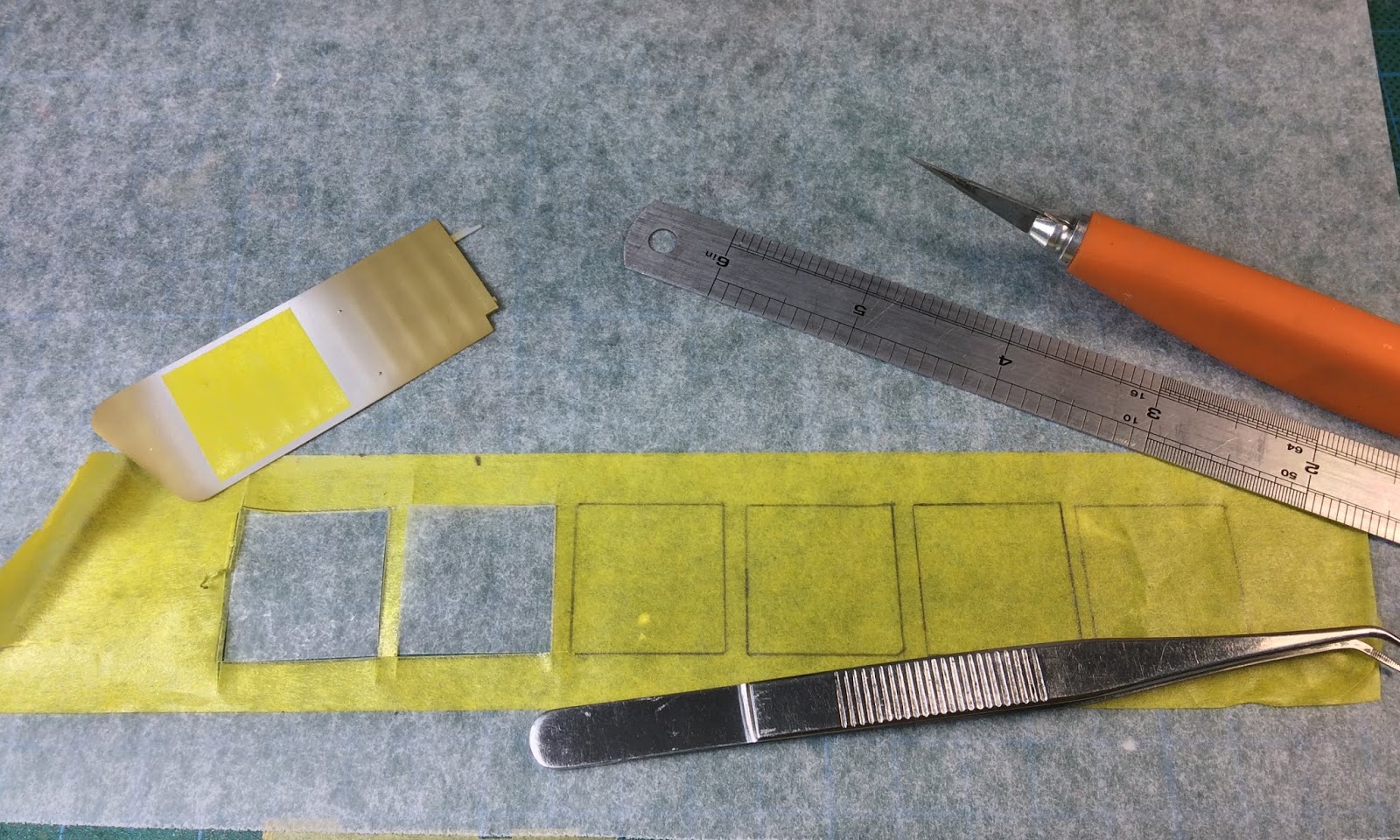

 When doing the masks I usually place the masking tape on a piece of baking paper.

I used the decal as a template. Cut with a sharp blade and metal ruler for straight cuts.


Masking tape being cut and positioned in one of the wings

 I've used the same process to cut the fuselage cross template.

I've used the 3mm tape for the upper and bottom of the fuselage band. However, for the sides I had to use 2 x 2mm stripes overlapped  since it is slightly thinner than the upper and bottom stripes.

Fuselage band and cross masked

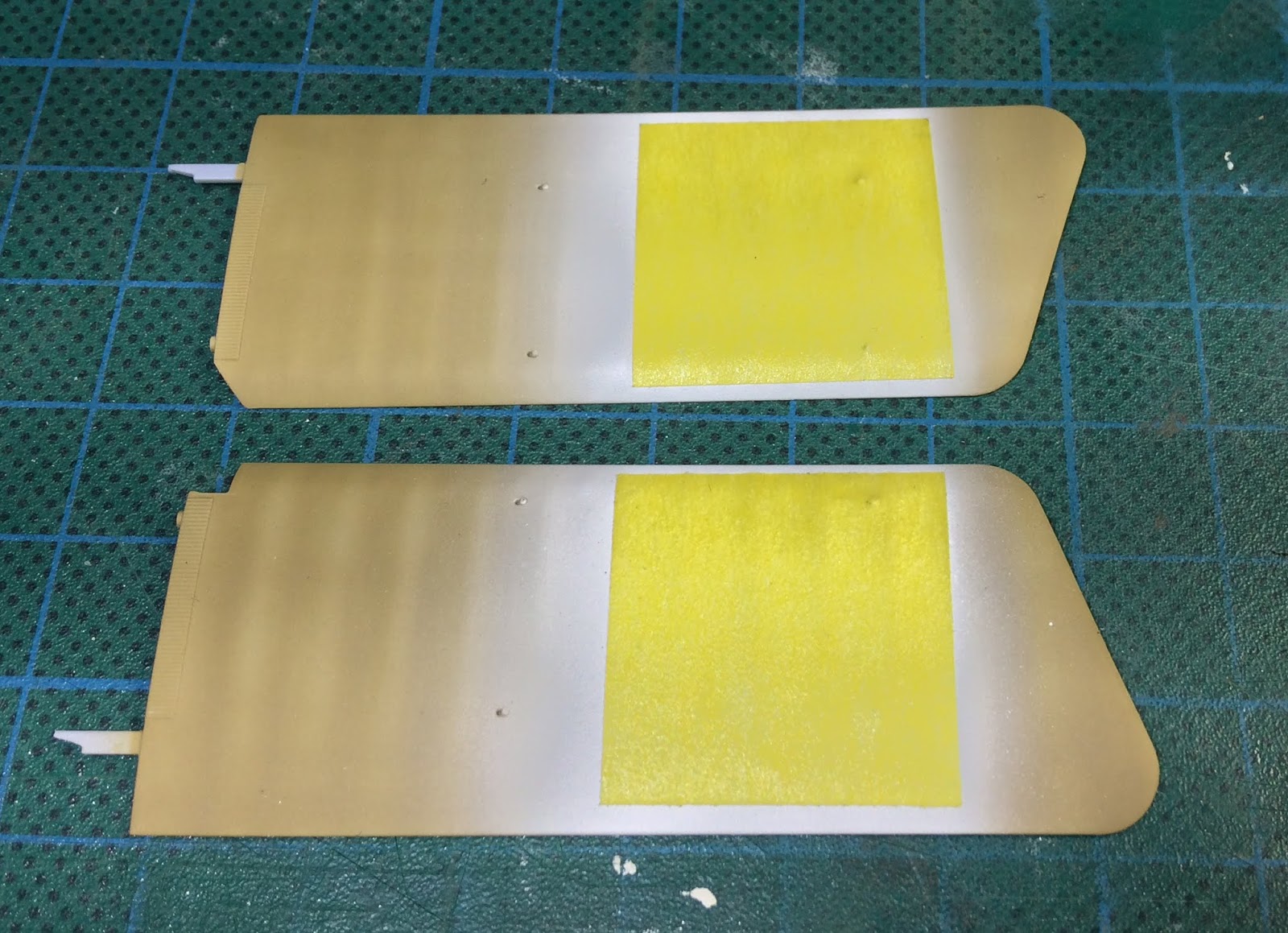

Upper wing squares masked

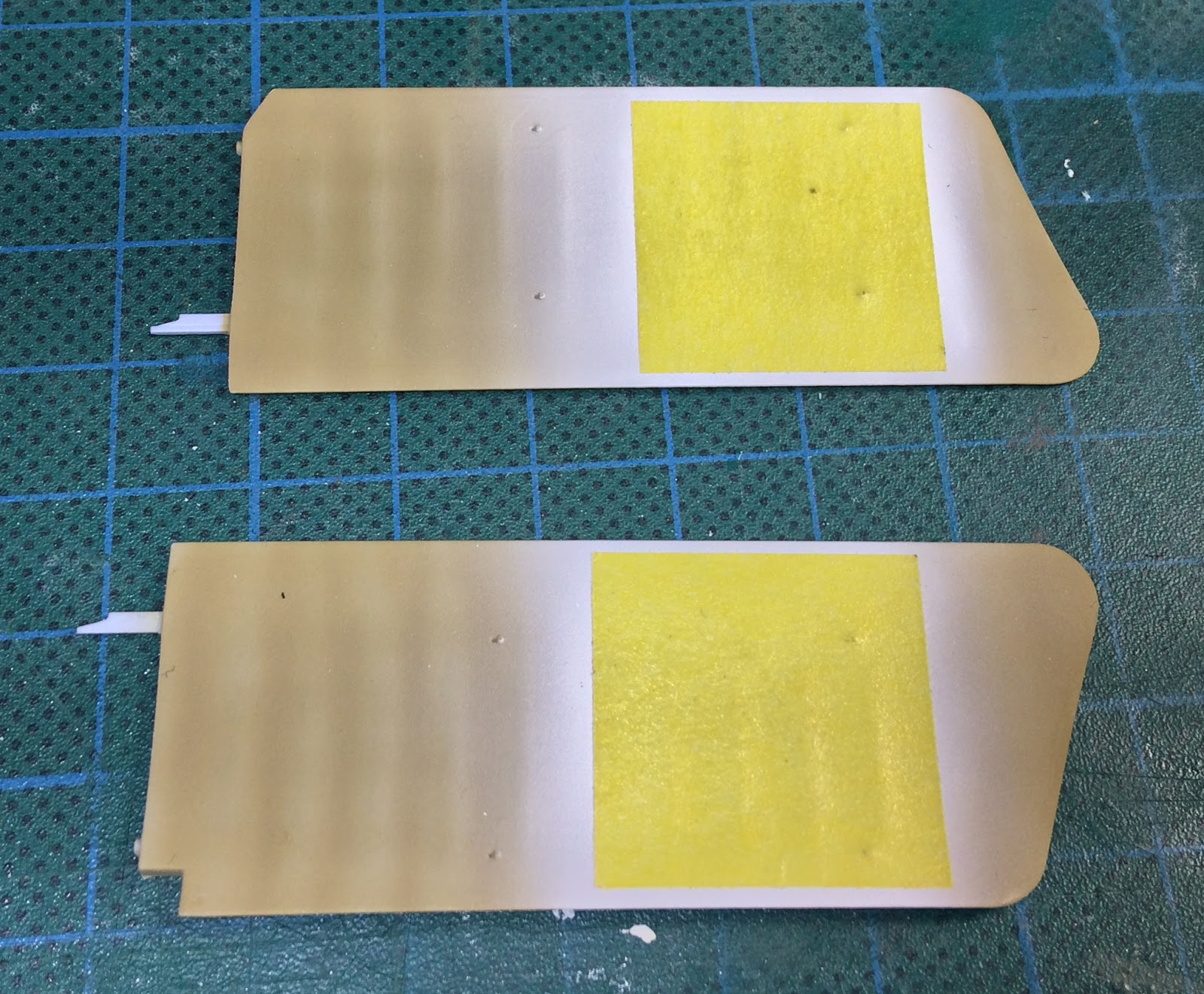

Underside wings squares masked

 Next I did apply Tamiya XF-01 Flat Black with a few drops of Future (1 paint : 1 Future : 2 X-20A @15psi). I know I'll have to spray some white or grey prior to yellow but I think this way it would be easier to mask.

Black paint applied





To be continued!




Edited by ArmouredSprue
Link to post
Share on other sites

Yellow applied. I've used Gunze  H413 RLM04 Yellow.




After waiting overnight for paint to cure I decided to check it before moving on.


A little setback, I was not happy with the results. Some overspray/bleeding paint and some huge misalignment. I will have to start from the beginning again.







To be continued!

Link to post
Share on other sites
  • 1 month later...
12 hours ago, Tripio said:

Hello there,


Any progress on fixing the paint?

How is the knee recovery?



Hi there


the has recovered just fine and I’m already back to work. Thanks for your attention.


The kit had som progress made to it. All paint mistakes have now been corrected and I’m in the process of weathering. Some photos soon.


Link to post
Share on other sites
  • 2 weeks later...

Definitely the Festive Season isn't a good time of the year for scale modelling here Down Under. Warmer weather and friends invitations to go out is so tempting that the bench time is happily neglected.

However, I've managed to progress with this build and here are a couple of photos just to keep this build alive.

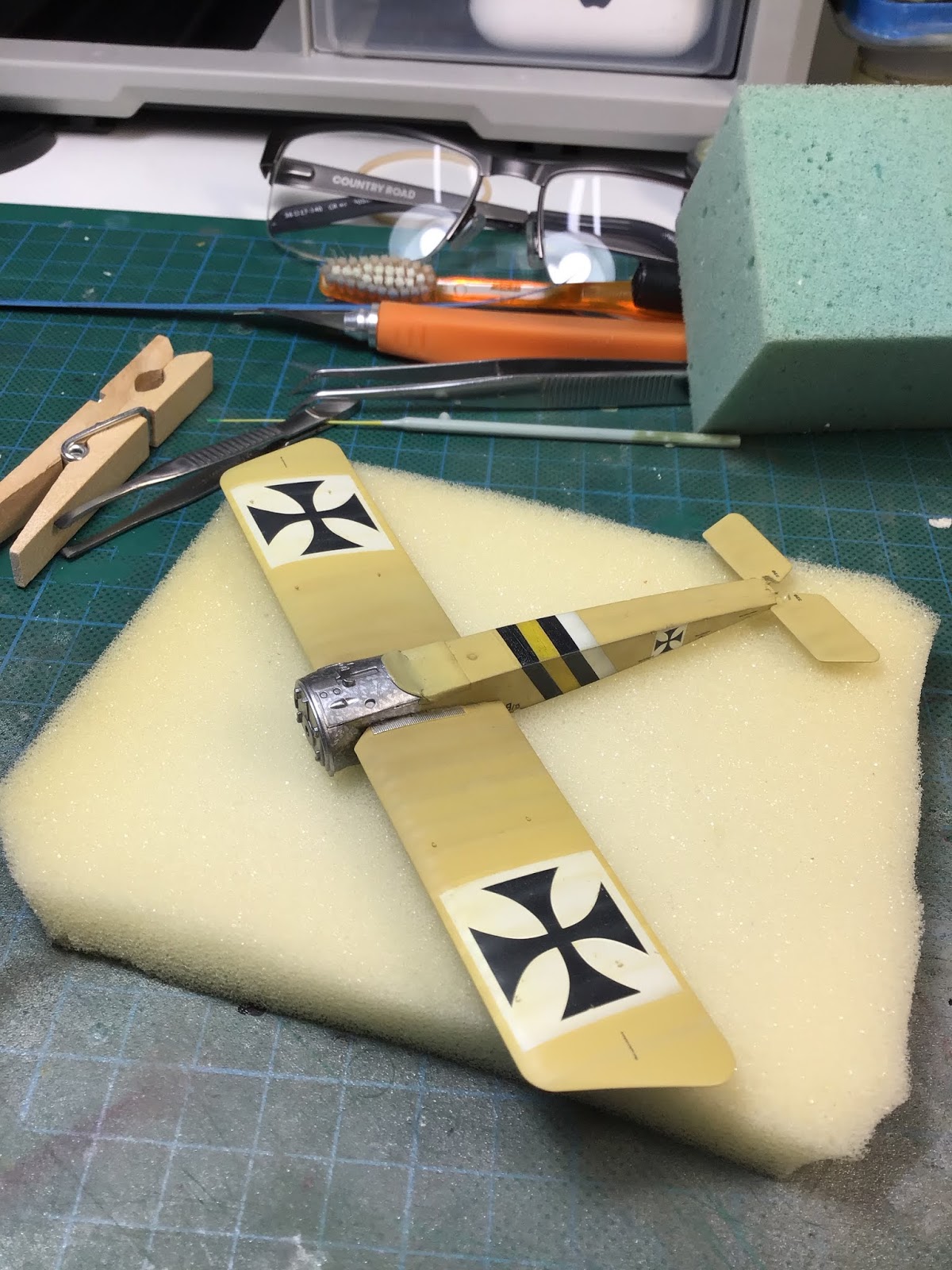

I have added the wings to the fuselage and also started some weathering


The bottom will be a little dirtier than the upper surface



To be continued!
