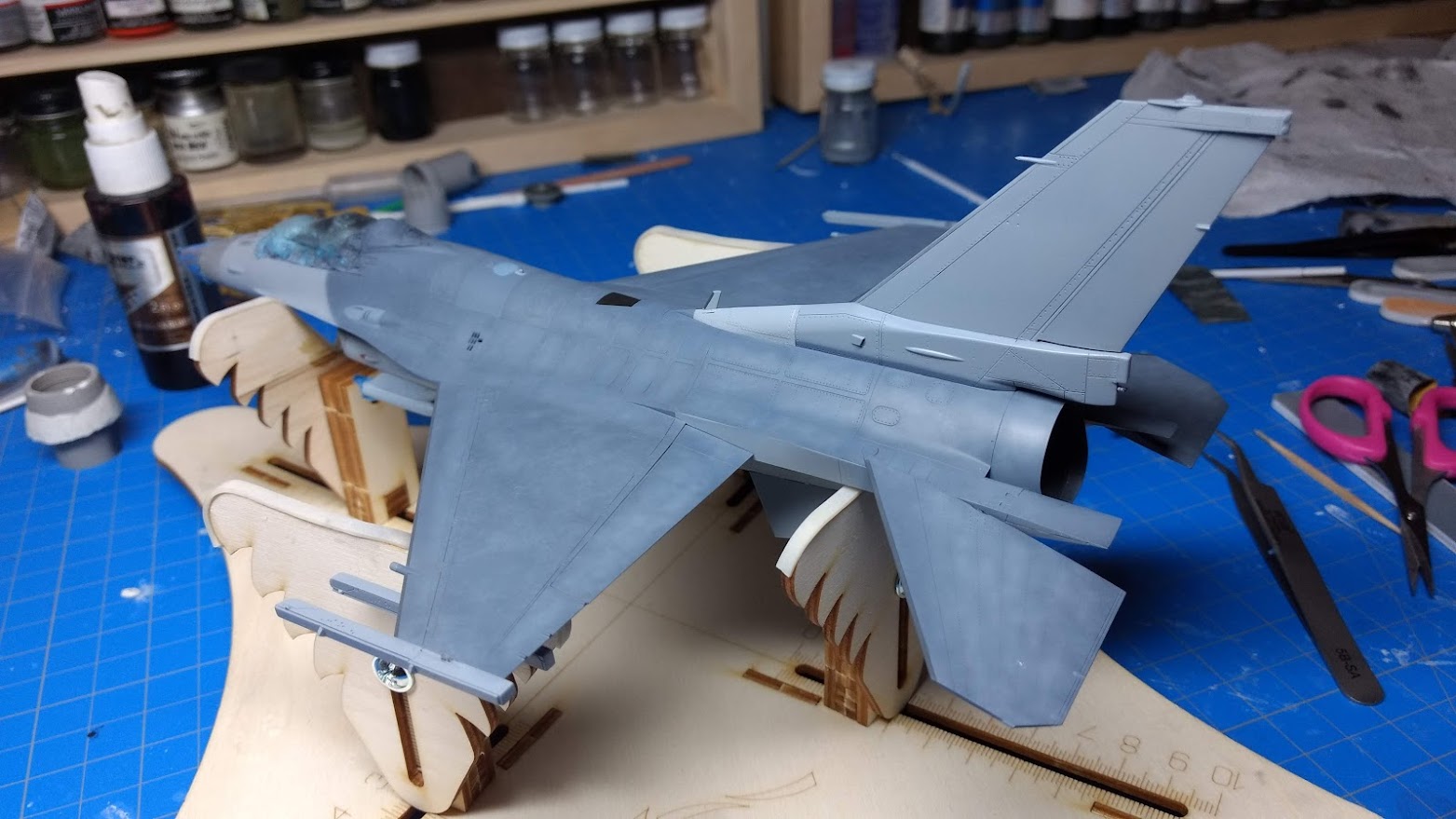

Time for a quick update.  I finally have paint on all the main parts, but since the model is still covered in masking tape and I’m in the middle of mottling the gunship gray areas on top, I couldn’t get photos of the other areas that are already painted.  For the gunship gray on the top, I took Mr. Color 305 and added roughly 25% Mr. Color C5 Gloss blue, as most photos of F-16’s show a distinctive blue hue in the photos.  This color also seems to look worn and patchy in many photos, so I used lightened and darkened variations of the base color and sprayed it through some texture stencils to add visual interest.  Link to what I used is below:
