F-4 Phantom II , Experts, please help.

Recommended Posts

Hello friends,

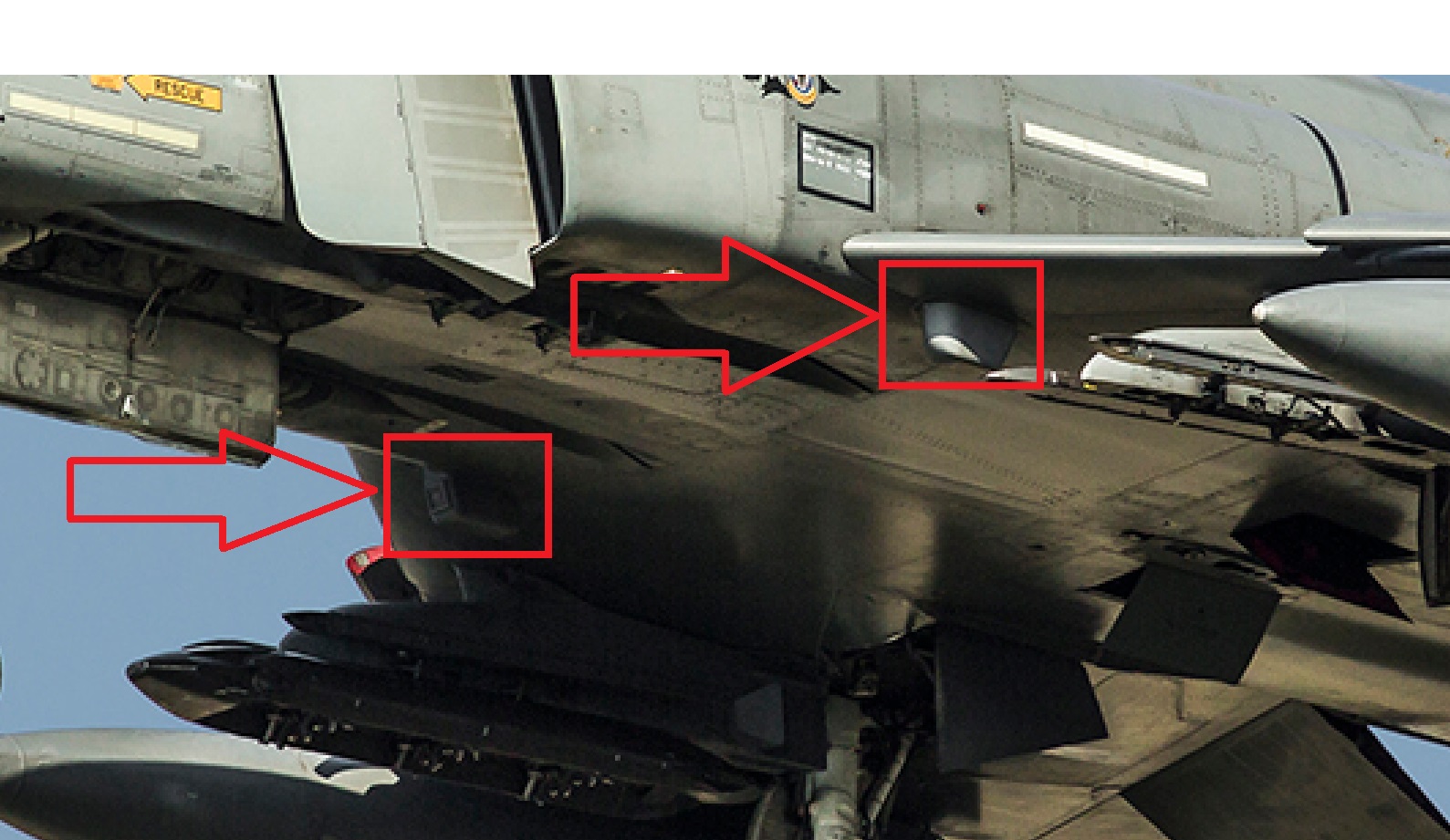

 Can someone please, tell me what is these two parts near wing root? I have marked it on photo. And, does anyone have any close view of specific detail , so that I can make that part for my model kit.

 Thank you.

Snimak ekrana (387).jpg

Edited by Mustang381
Link to post
Share on other sites

Camera fairings.   I used to work D's E's and G's.  The D's had these but not all of them.  One  (the starboard one) has it's flat-pane looking forward and the port one looks aft.


That may be a Navy B model?

Edited by VADM Fangschleister
Link to post
Share on other sites

Strike cameras. Port facing aft, starboard facing forward. Sitting on the panel where on Navy Phantoms the catapult hooks were.

The Zoukei Mura F-4E kit has them in the kit, a slightly more accurate version is contained in my F-4E slat conversion set (for the same kit).

The best close-up detail references can be found in this book: http://eagleaviation.gr/work/rf-4e-f-4e-phantom-ii-phantom-under-the-skin-vol-ii/
