MattP Posted August 29, 2023 Share Posted August 29, 2023 I'm helping out my cousin's son for a BSA merit badge. We're doing a F-100D in wood for his Grandfather, (My Uncle). I really don't have any kits that I can use as a template. Can anybody snap a quick picture of just the pylon so we can reproduce it? I've been through the gallery, but haven't seen a clear picture for making a pattern. Just a profile will be good. TIA MattP Quote Link to post Share on other sites
Nebbor Posted August 29, 2023 Share Posted August 29, 2023 Maybe this can help: http://www.primeportal.net/hangar/weichao_chen/f-100d_56-3440/index.php?Page=2 Quote Link to post Share on other sites

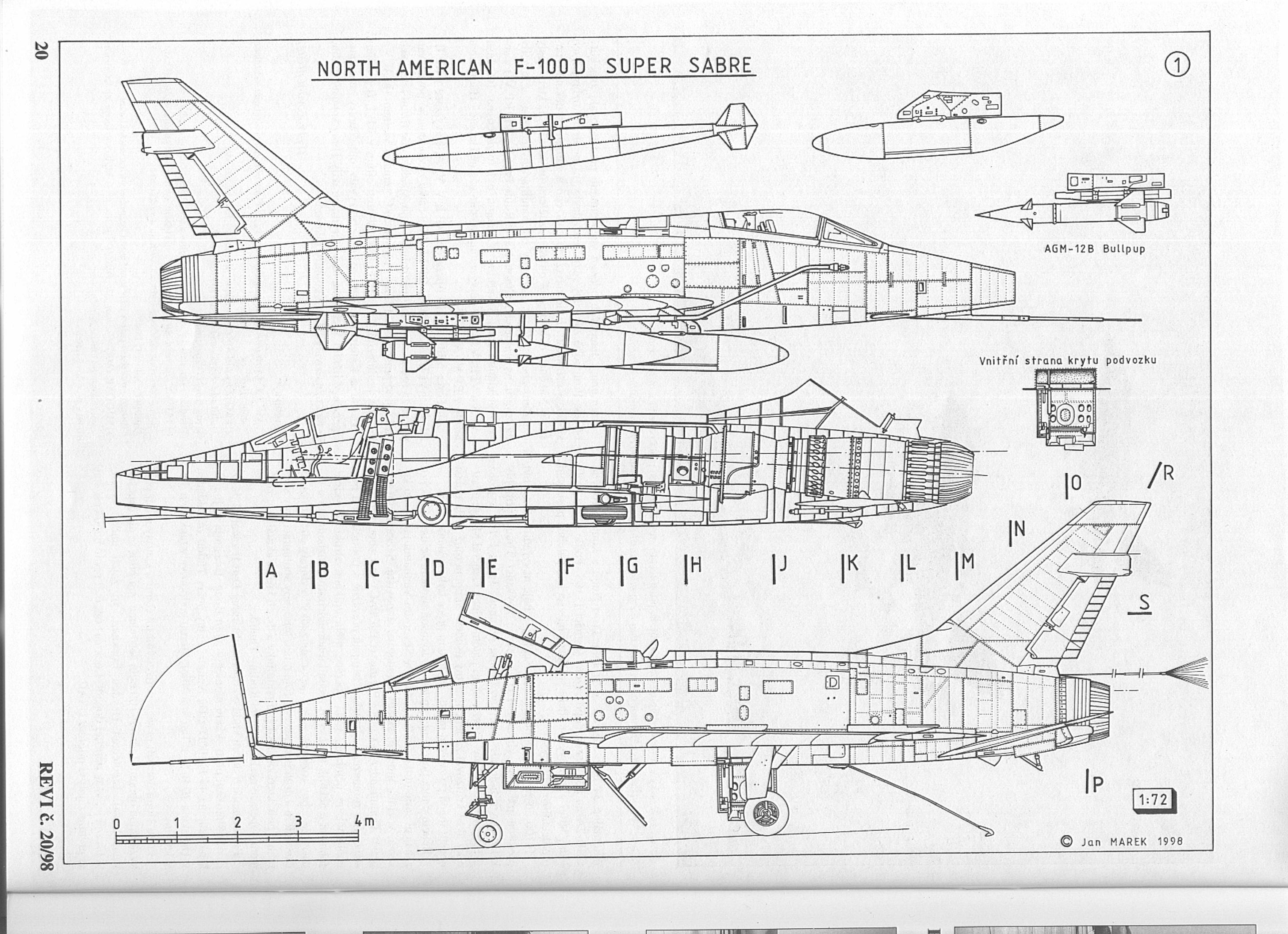

Ben Brown Posted August 29, 2023 Share Posted August 29, 2023 Here’s a drawing you can resize and print as a pattern. The inboard pylon is the top one, to the right of the finned drop tank. LINK If you Google “f-100 3 view,” there are a lot of drawings that show cross sections if you need them. There’s even a plan for a stick and tissue YF-100. Ben Quote Link to post Share on other sites
MattP Posted August 30, 2023 Author Share Posted August 30, 2023 Gentleman, Thanks to both of you for the assist. These 2 sites will go a long way in completing our task. Quote Link to post Share on other sites
Ben Brown Posted August 30, 2023 Share Posted August 30, 2023 8 hours ago, MattP said: Gentleman, Thanks to both of you for the assist. These 2 sites will go a long way in completing our task. You’re welcome! Feel free to PM me if you need any other F-100 info. Ben (somewhat of an F-100 nut) Quote Link to post Share on other sites
MattP Posted September 2, 2023 Author Share Posted September 2, 2023 Will do!!! Thanks again! Quote Link to post Share on other sites

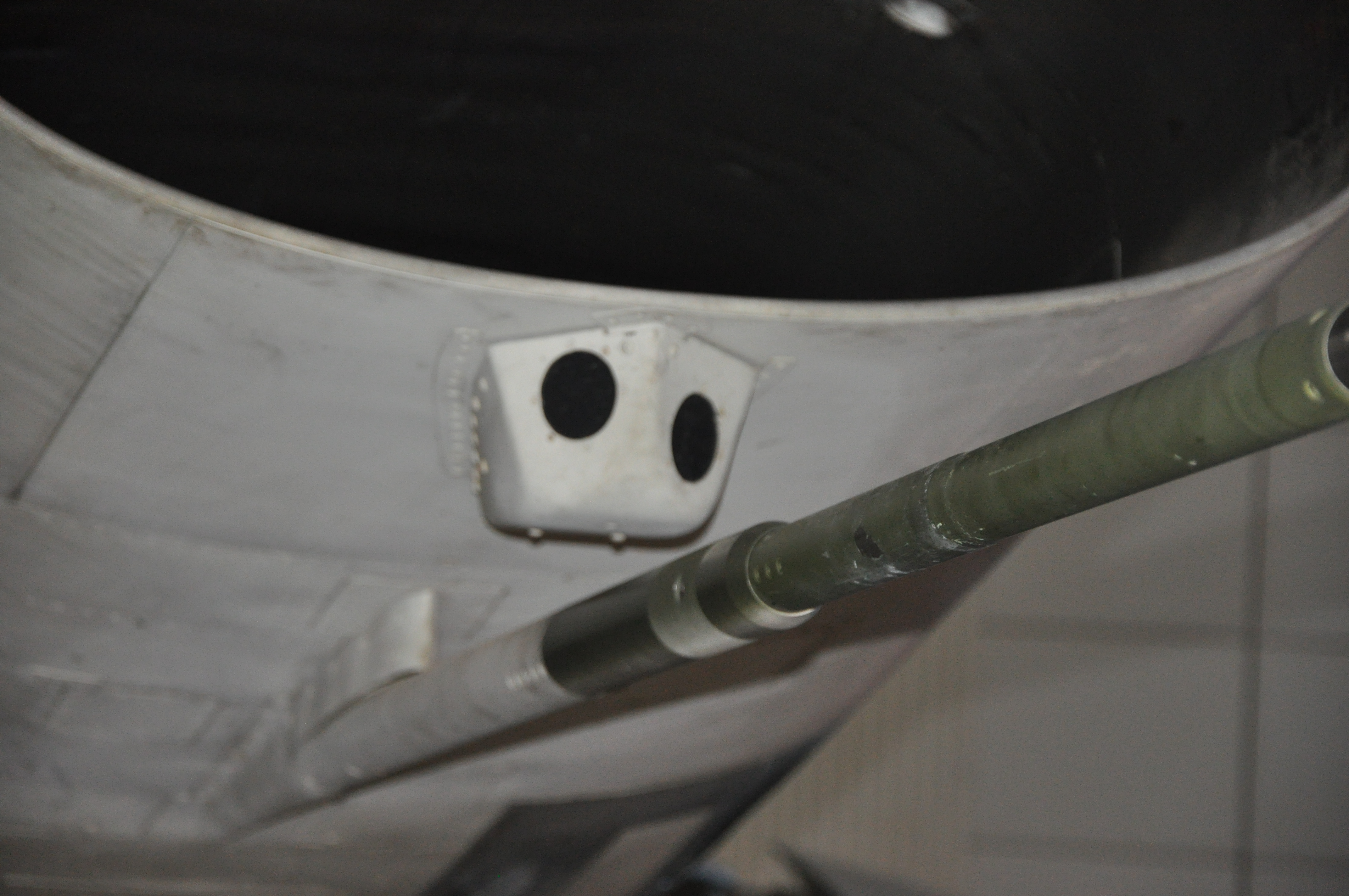

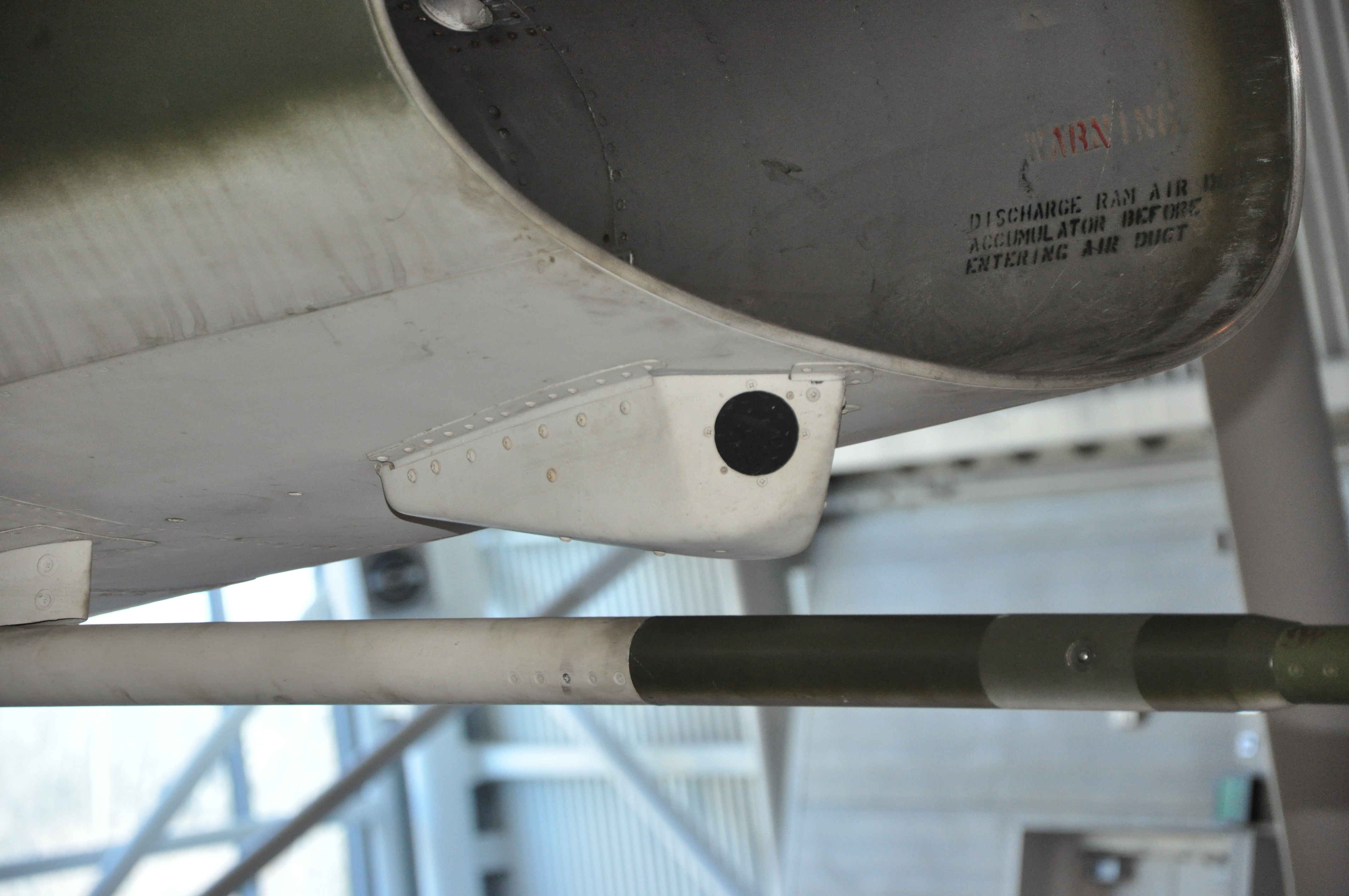

MattP Posted September 11, 2023 Author Share Posted September 11, 2023 What is this sensor and just when did they field it on the F-100D's. TIA!! Quote Link to post Share on other sites
MikeDadofFour Posted September 11, 2023 Share Posted September 11, 2023 Would be great if someone would release 3D printed, or handcrafted resin replacements for the poorly molded Monogram pylons in 1/48. Quote Link to post Share on other sites
Ben Brown Posted September 12, 2023 Share Posted September 12, 2023 Agreed! Ben Quote Link to post Share on other sites
