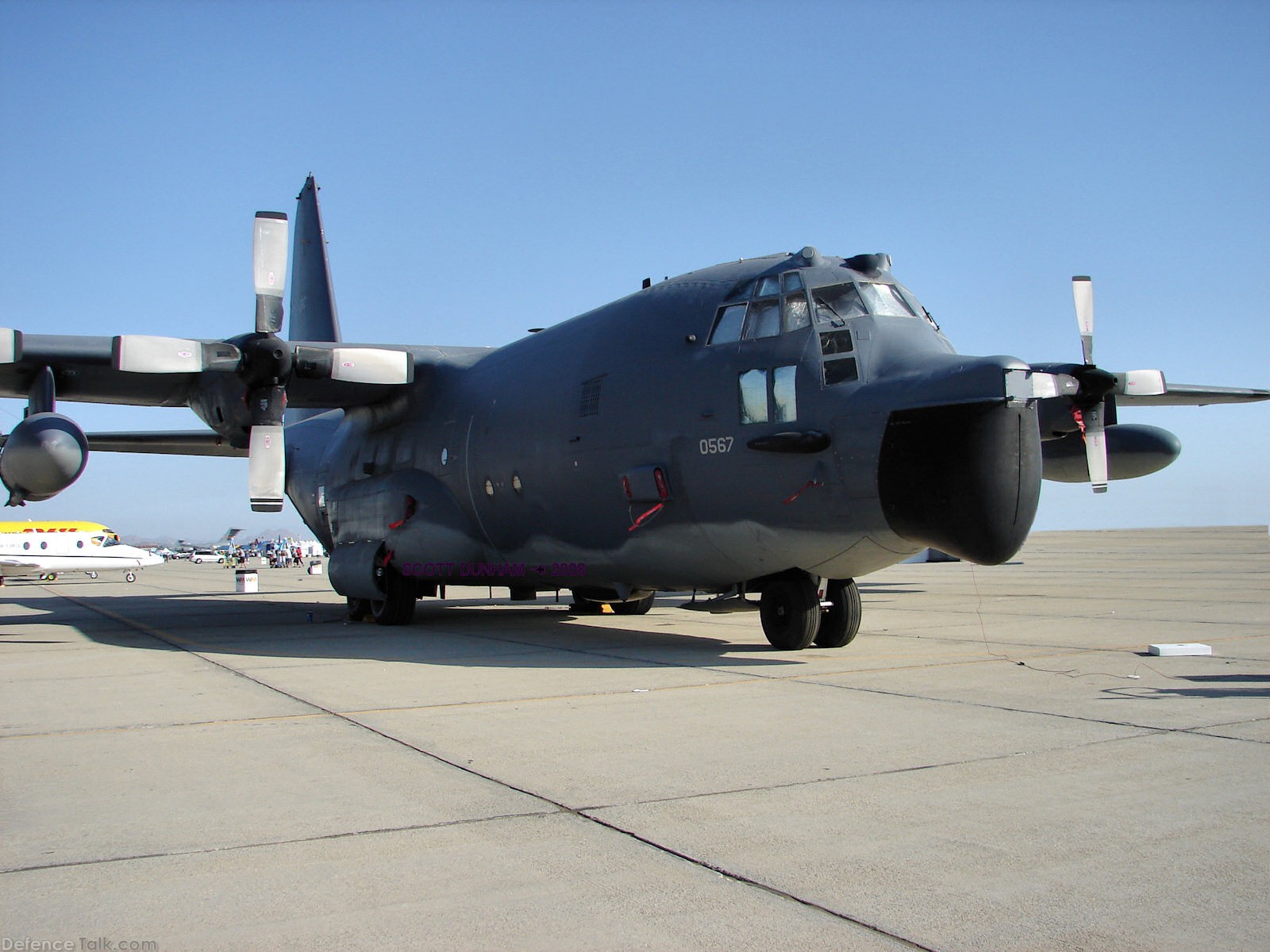

MattP Posted June 14 Share Posted June 14 I have pix showing the drop tank ECM equipment on both the inboard side of the tank and on the outside of the tank. Which is correct??? Thanks in advance! Quote Link to post Share on other sites

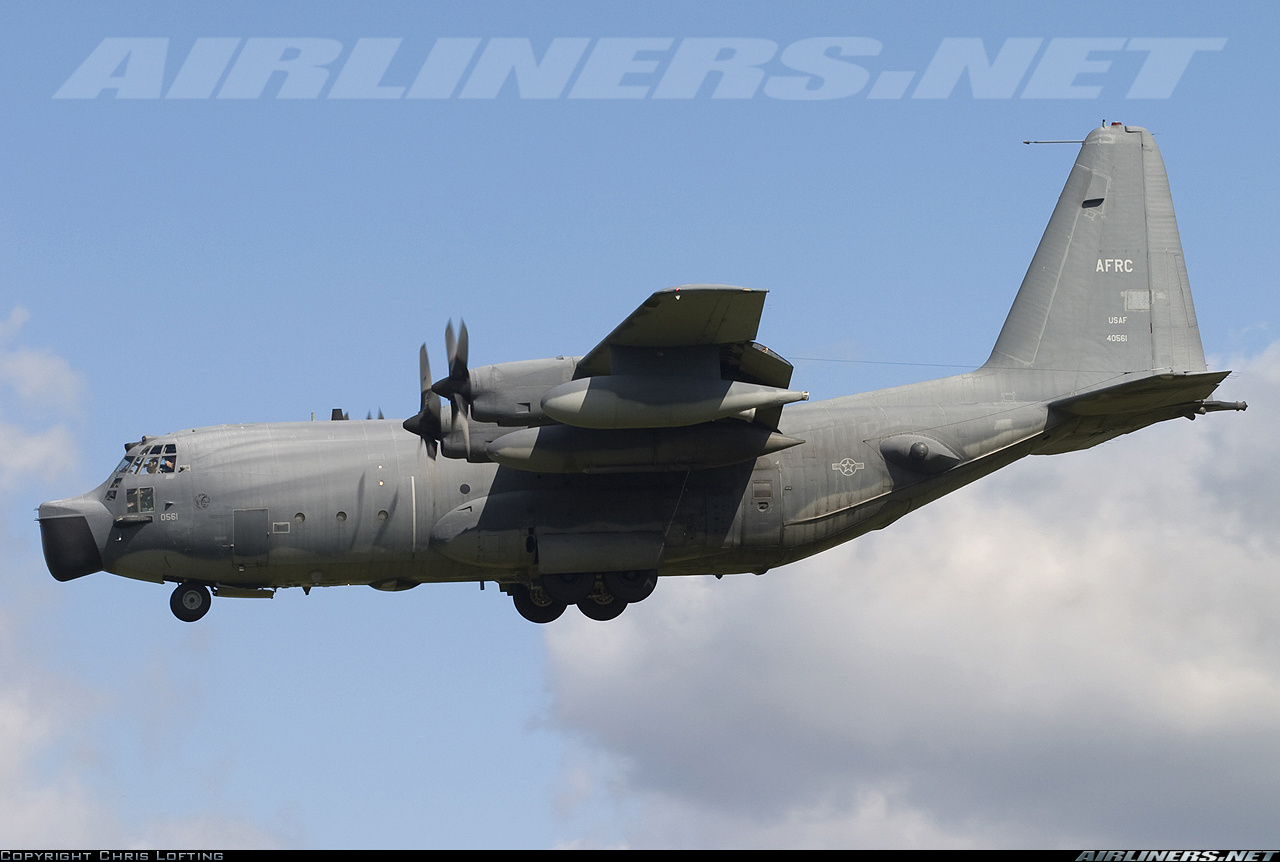

MattP Posted June 14 Author Share Posted June 14 This picture also shows the ECM gear on the outside... Quote Link to post Share on other sites
aircommando130 Posted June 14 Share Posted June 14 I think they hung the externals backwards....the QRC-84-02 pods should be to the outside aft end of the external. Cheers...Ron Quote Link to post Share on other sites

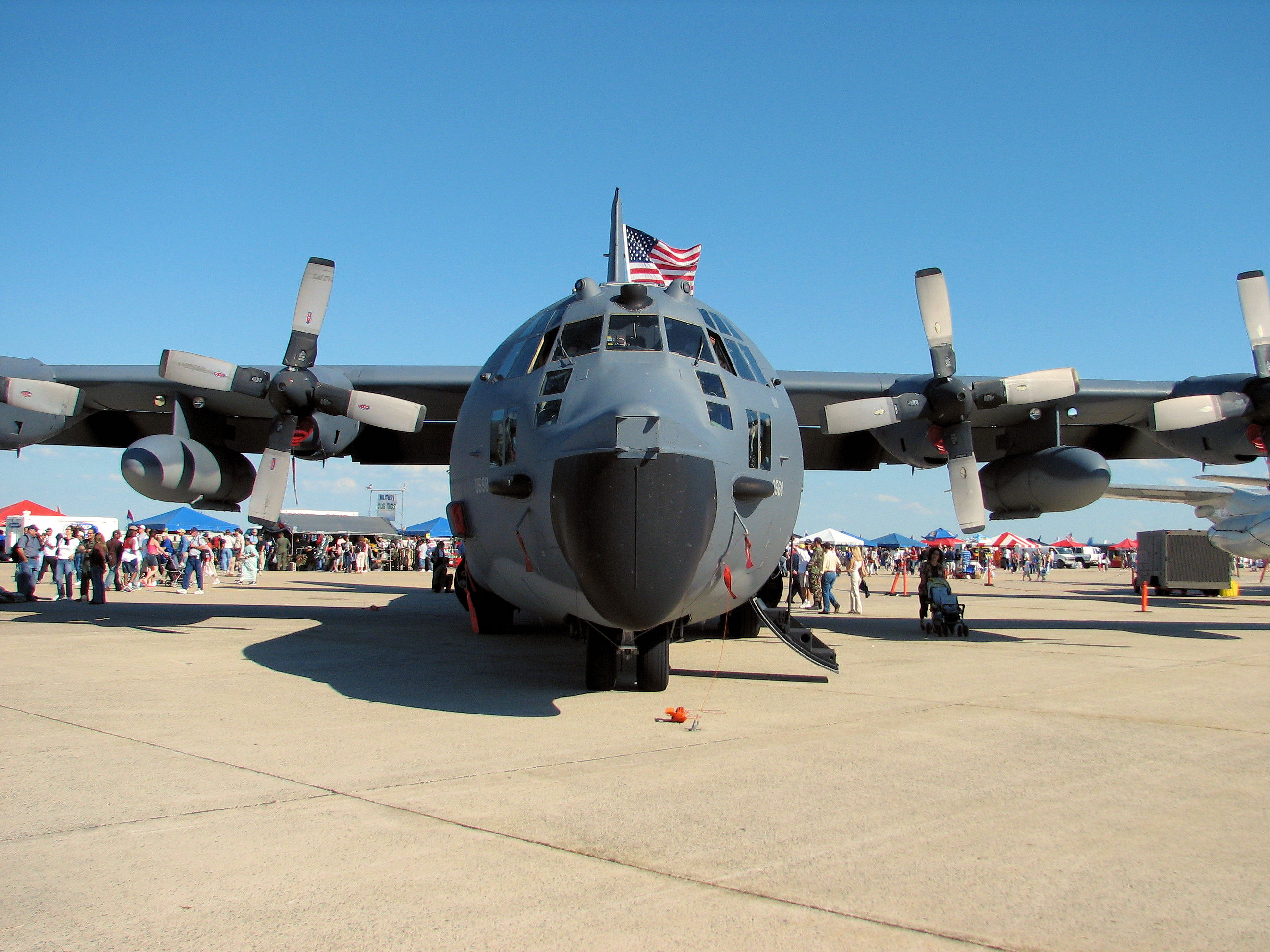

habu2 Posted June 14 Share Posted June 14 8 minutes ago, aircommando130 said: I think they hung the externals backwards....the QRC-84-02 pods should be to the outside aft end of the external. Cheers...Ron Agree. Based on the background in those pics I think this qualifies as an "airshow load". Quote Link to post Share on other sites
MattP Posted June 15 Author Share Posted June 15 Thank you guys for the clarification on this!!! Quote Link to post Share on other sites
aircommando130 Posted June 15 Share Posted June 15 Pretty funny though! One of the maintenance guys here put the radar control panel in a MC-J back in backwards. I said he had his job guide upside down and it matched the picture..... Cheers...Ron Quote Link to post Share on other sites
