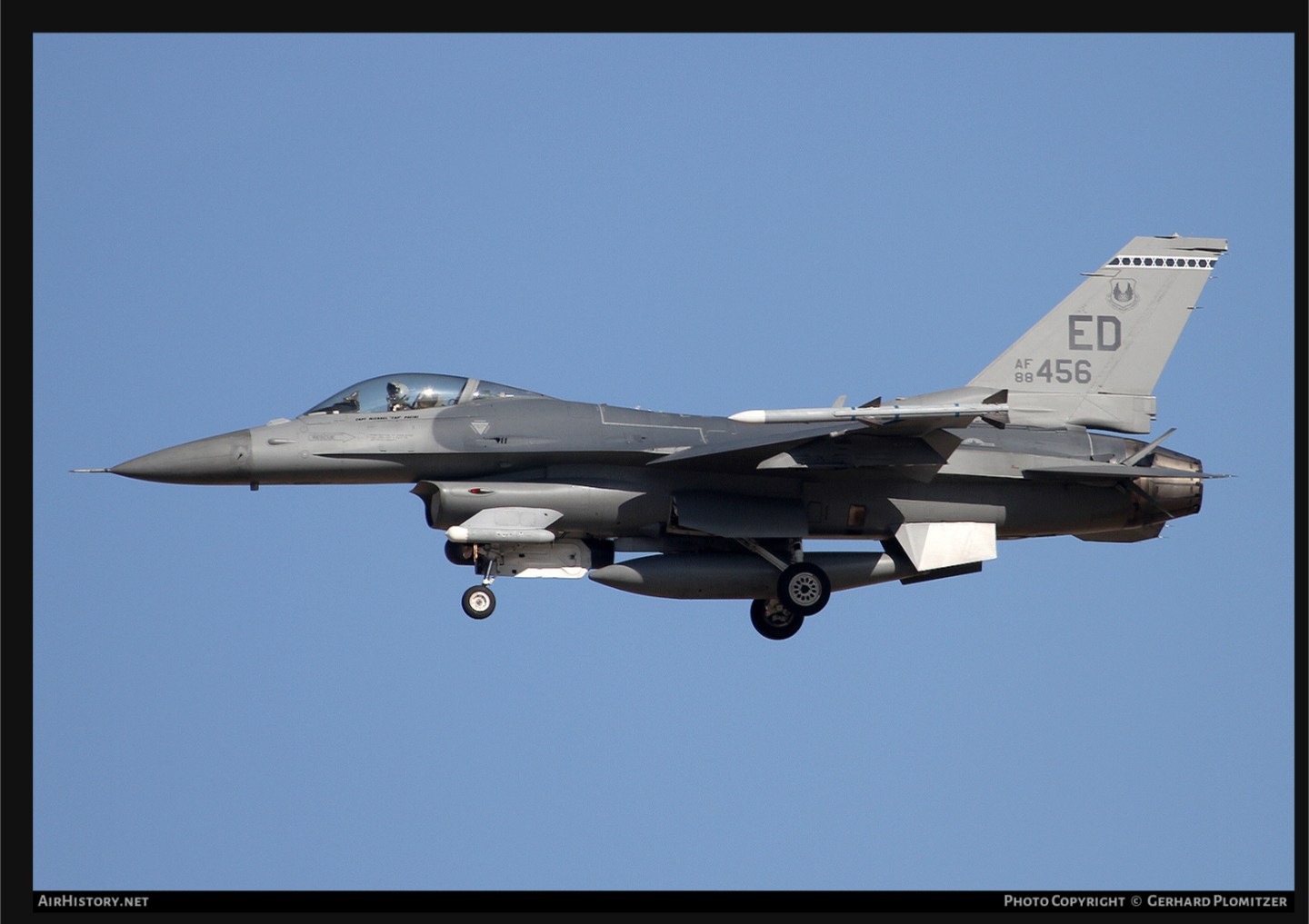

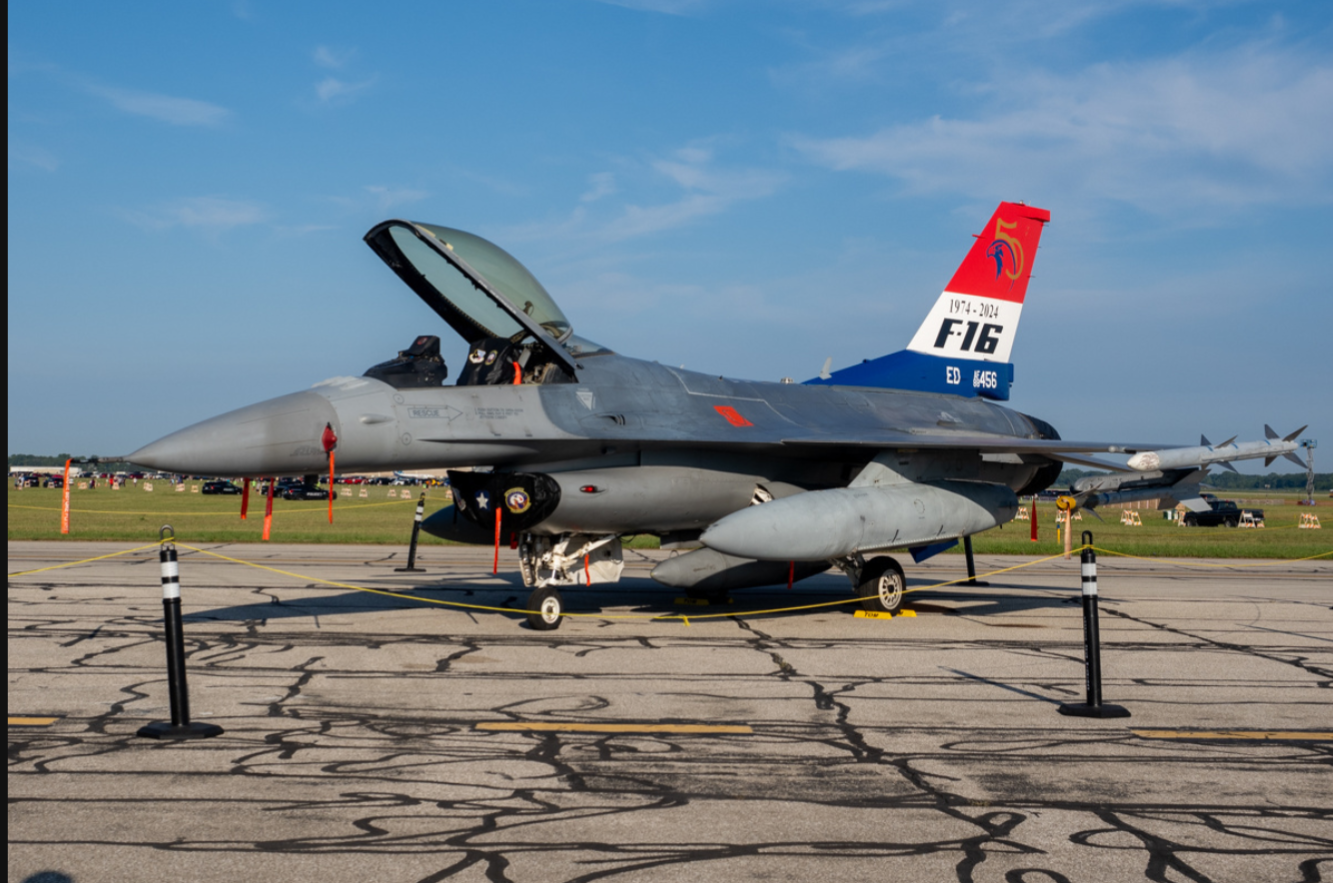

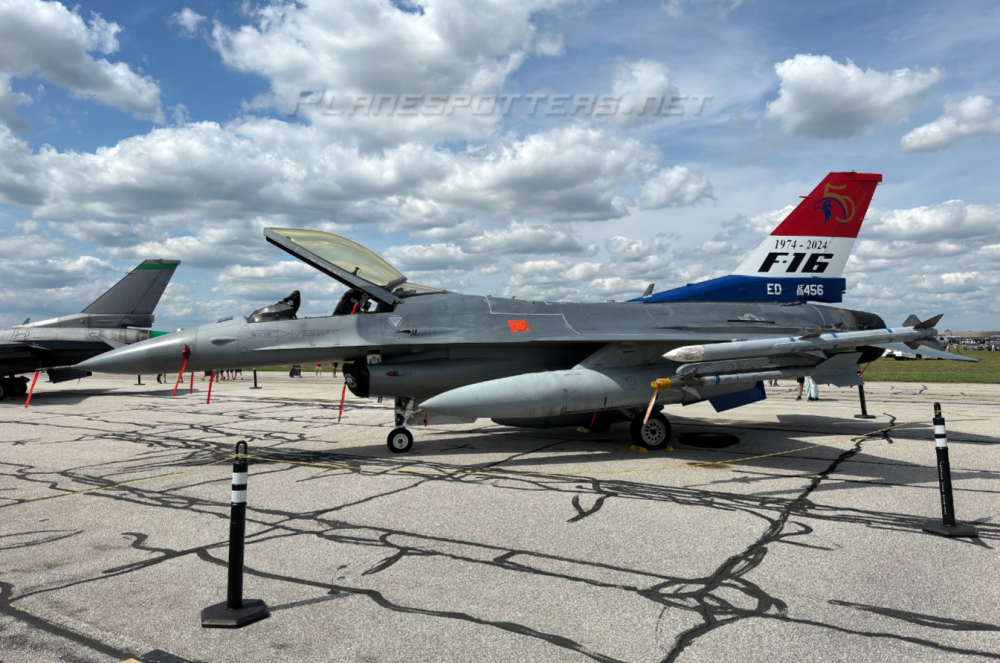

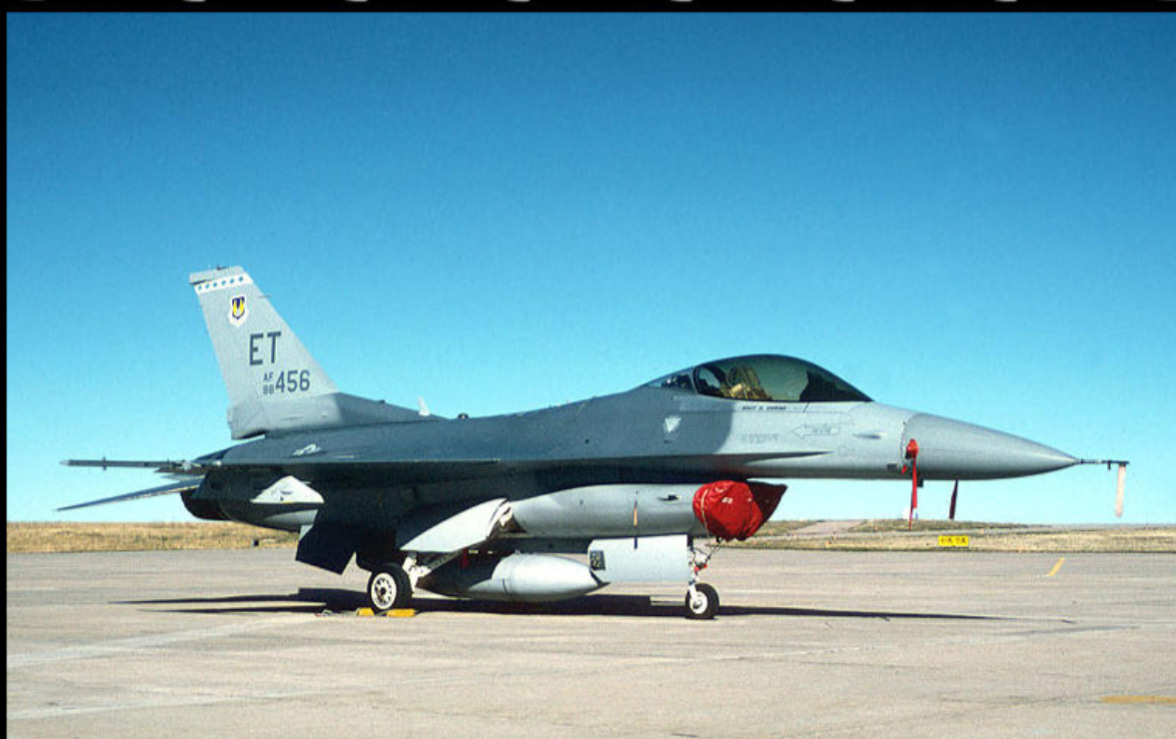

Matt Walker Posted October 29, 2024 Share Posted October 29, 2024 Looking at my next project, F-16C Block 42C 88-0456. Block 4x jets have a WAR hud, right? Well, not this one!! Every photo I've found of it from various stages of its life, show the WAC HUD! Quote Link to post Share on other sites
habu2 Posted October 29, 2024 Share Posted October 29, 2024 456 has been a “test” jet all its life, at Elgin and Edwards. It was the test bed for Block 50/52 development, so not surprised it deviated from a “stock” 42 configuration. Quote Link to post Share on other sites
Matt Walker Posted October 29, 2024 Author Share Posted October 29, 2024 Yes, it has had an interesting life! Quote Link to post Share on other sites
Matt Walker Posted October 29, 2024 Author Share Posted October 29, 2024 (edited) Here's a question... Would it have the new Center Display Unit? Edited October 29, 2024 by Matt Walker Quote Link to post Share on other sites
CF104 Posted October 29, 2024 Share Posted October 29, 2024 10 hours ago, Matt Walker said: Here's a question... Would it have the new Center Display Unit? Without a photo or confirmation from a pilot or maintainer it would just be guessing. 🤔 Cheers, John Quote Link to post Share on other sites
Matt Walker Posted October 29, 2024 Author Share Posted October 29, 2024 Hmm. Thanks John. Anyone have any Air Force contacts?? Quote Link to post Share on other sites
BillS Posted October 29, 2024 Share Posted October 29, 2024 In two of those photos the HUD has a protective cover but yes, blk 42s were equipped WAR HUDS but nothing is cast in concrete in the AF. Quote Link to post Share on other sites

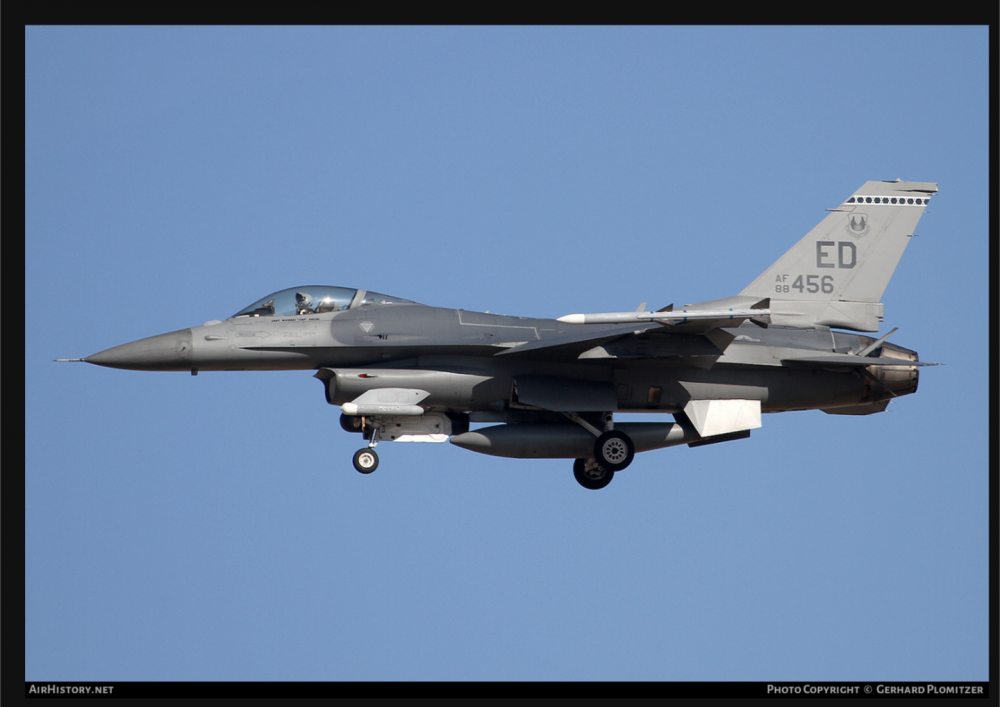

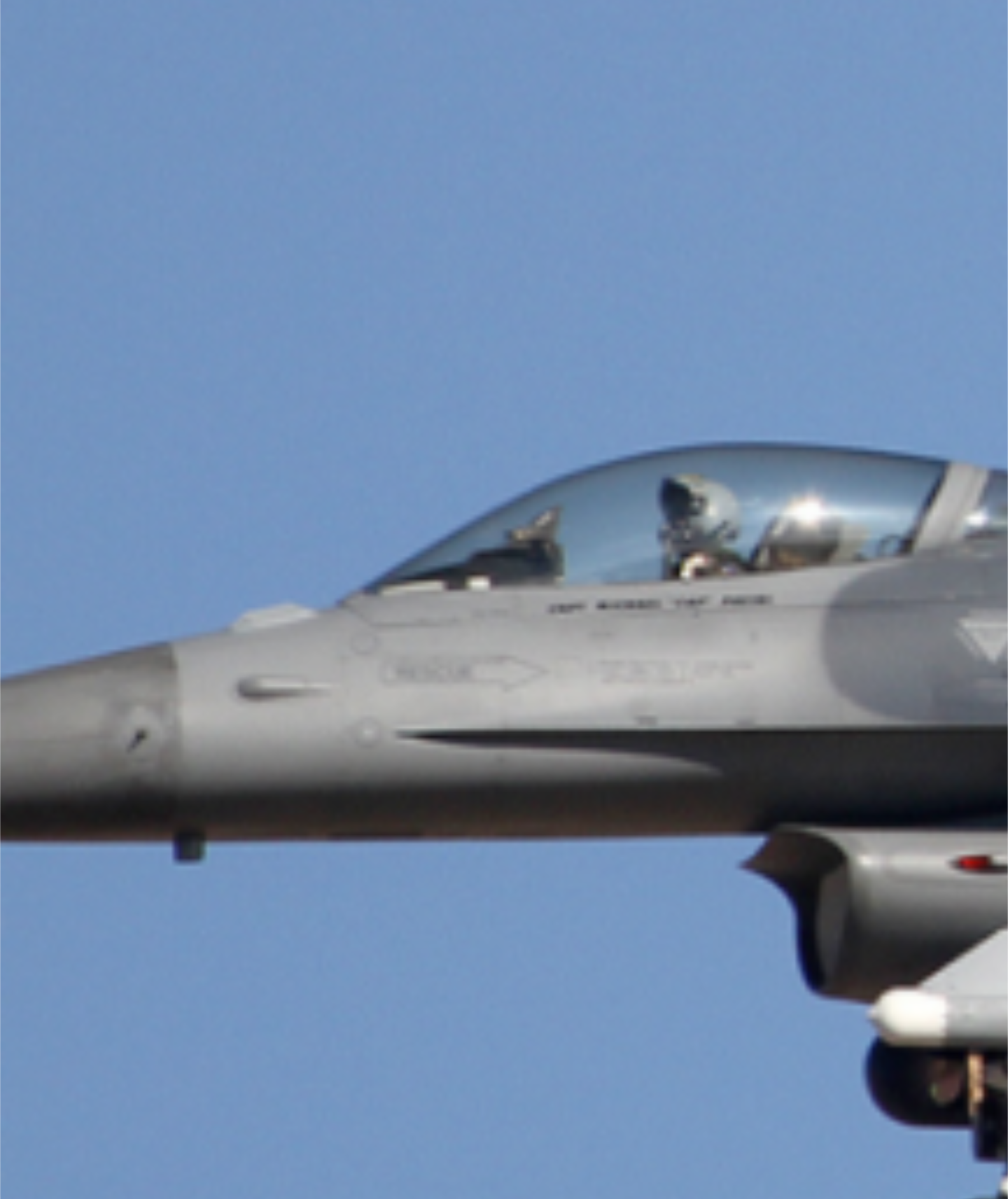

Matt Walker Posted October 29, 2024 Author Share Posted October 29, 2024 Here's a blow up of one of the photos above, with the ED tailcode Quote Link to post Share on other sites

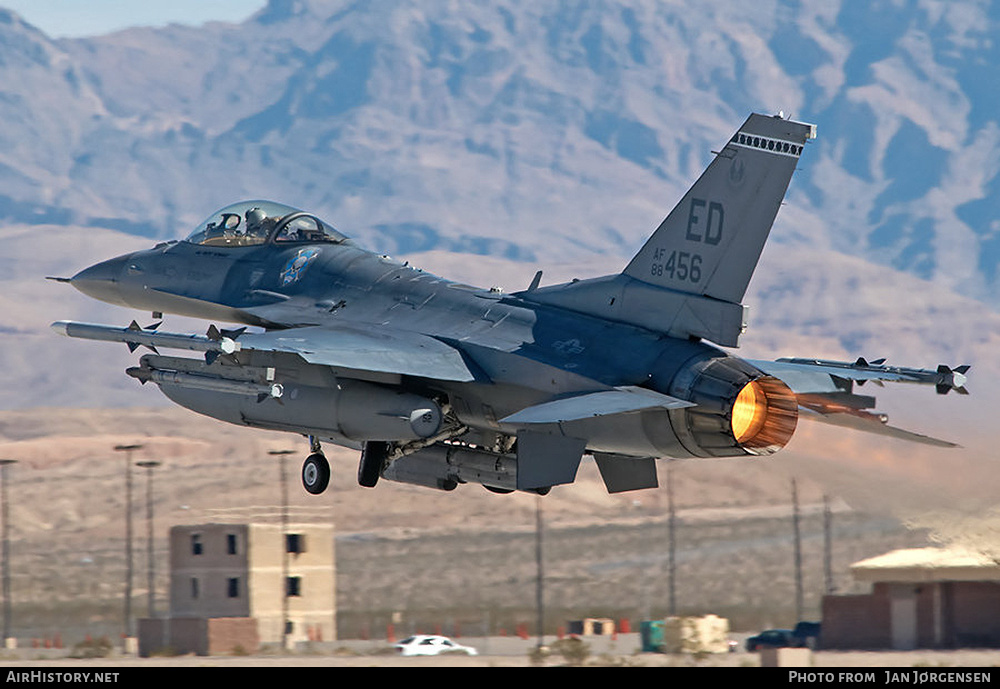

CF104 Posted October 30, 2024 Share Posted October 30, 2024 19 hours ago, Matt Walker said: Here's a blow up of one of the photos above, with the ED tailcode That's definitely a WAC HUD. Here's a photo from 2009 showing it with the WAR HUD. Cheers, John Quote Link to post Share on other sites
Matt Walker Posted October 30, 2024 Author Share Posted October 30, 2024 Huh!! Well look at that!! Quote Link to post Share on other sites

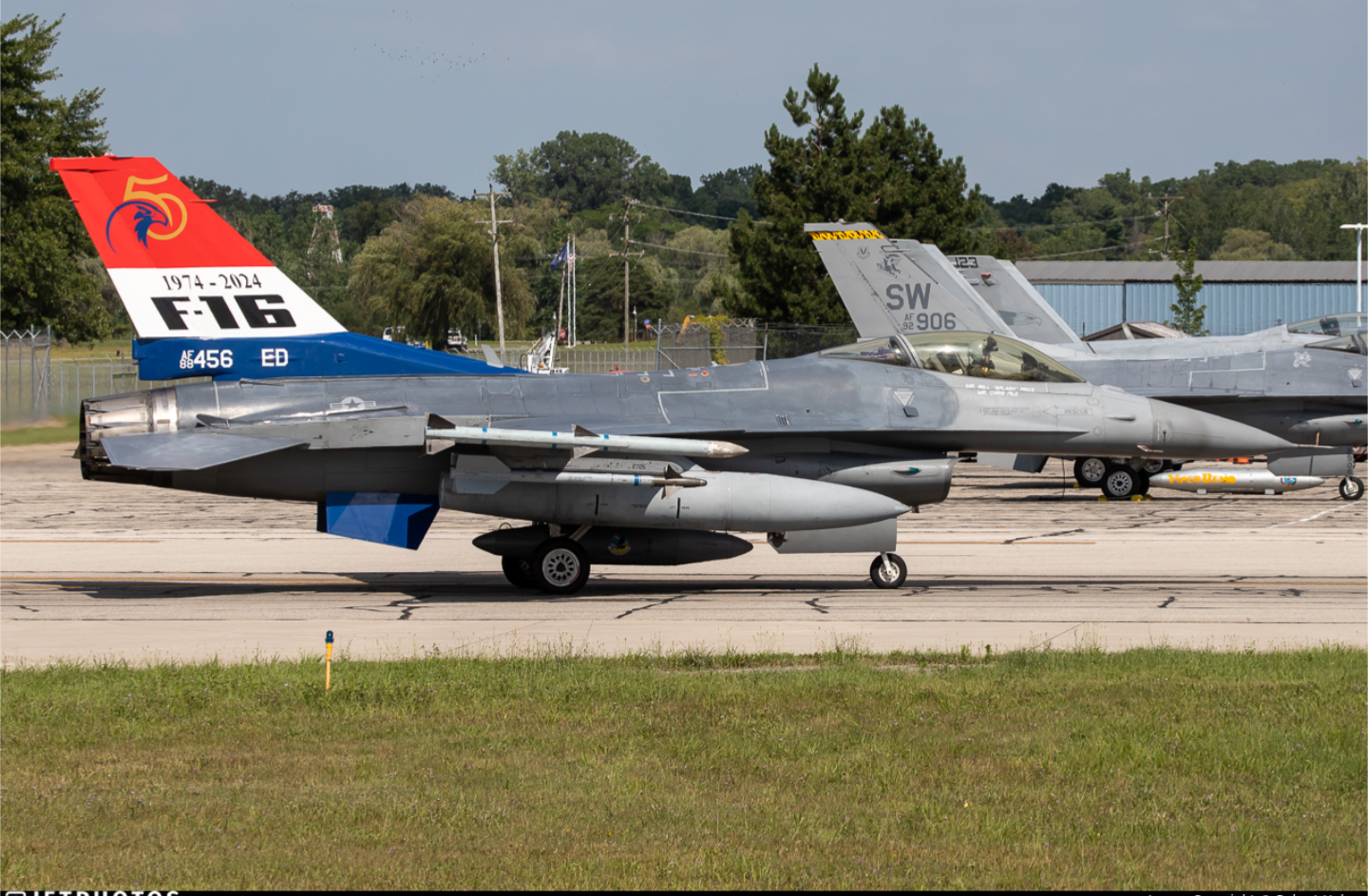

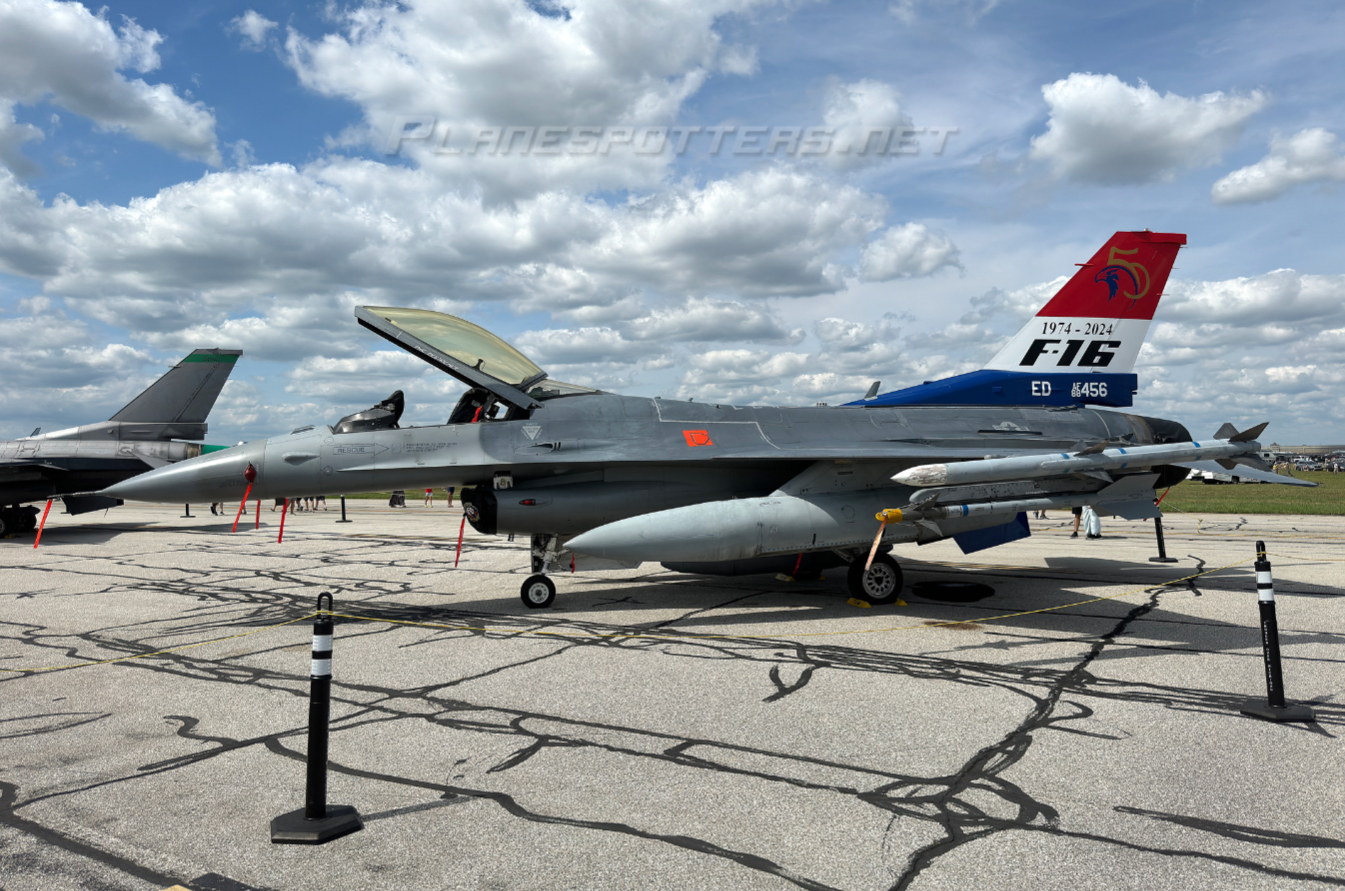

CF104 Posted October 30, 2024 Share Posted October 30, 2024 (edited) 7 minutes ago, Matt Walker said: Huh!! Well look at that!! And a collection of photos of the 50th Anniversary scheme with a good shot of the WAC HUD. 88-0456 50th-anniversary Cheers, John Edited October 30, 2024 by CF104 Quote Link to post Share on other sites
Matt Walker Posted October 30, 2024 Author Share Posted October 30, 2024 Thanks for that link!! Quote Link to post Share on other sites
habu2 Posted October 30, 2024 Share Posted October 30, 2024 Looks like it also has the spin chute mounting reinforcement brackets on the upper aft fuselage. Quote Link to post Share on other sites
Matt Walker Posted October 30, 2024 Author Share Posted October 30, 2024 Yes, it does. Quote Link to post Share on other sites
habu2 Posted October 31, 2024 Share Posted October 31, 2024 Does anyone offer those brackets in the aftermarket? Quote Link to post Share on other sites
Matt Walker Posted October 31, 2024 Author Share Posted October 31, 2024 (edited) Bam Edited October 31, 2024 by Matt Walker Quote Link to post Share on other sites
zerosystem Posted November 2, 2024 Share Posted November 2, 2024 If that's the same bird that showed up to Thunder Over Michigan this year then it's a Franken-viper according to the pilot. It had a number of unique features on it from nose to tail including some new "jamming" antennas and scab plates for the anti spin chute mounts. Quote Link to post Share on other sites
