NASA/Gulfstream F-15 Quiet Spike

[eraucubsfan]

I assume no one made this spike in 1/48 for the F-15 Quiet Spike.



Does anyone know the dimensions of the spike? I was able to find the length but nothing else.  I would like to build the Quiet Spike F-15 with it.



I know it's ultra-specific but it would be awesome if someone like @arnobiz or @KursadA made the spike and the control panel to build it

[arnobiz]

I started designing it a while ago but the Gulfstream markings are way too big to ignore and don't exist as decals as far as I know 😕

[eraucubsfan]

1 minute ago, arnobiz said:

I started designing it a while ago but the Gulfstream markings are way too big to ignore and don't exist as decals as far as I know 😕

They are on the 1/72 Caracal NASA F-15 sheet in both 1/72 and 1/48

[Sabrejet]

I seem to recall one of those pre-painted Japanese kits depicted this machine?

[habu2]

2 hours ago, Sabrejet said:

I seem to recall one of those pre-painted Japanese kits depicted this machine?



TomyTec in 1/144

[habu2]

[arnobiz]

23 hours ago, eraucubsfan said:

They are on the 1/72 Caracal NASA F-15 sheet in both 1/72 and 1/48

Good to know, thanks!

Arnaud

[Geoff M]

What does a Quiet Spike do?

[X-Plane Fan]

This might help you.

[X-Plane Fan]

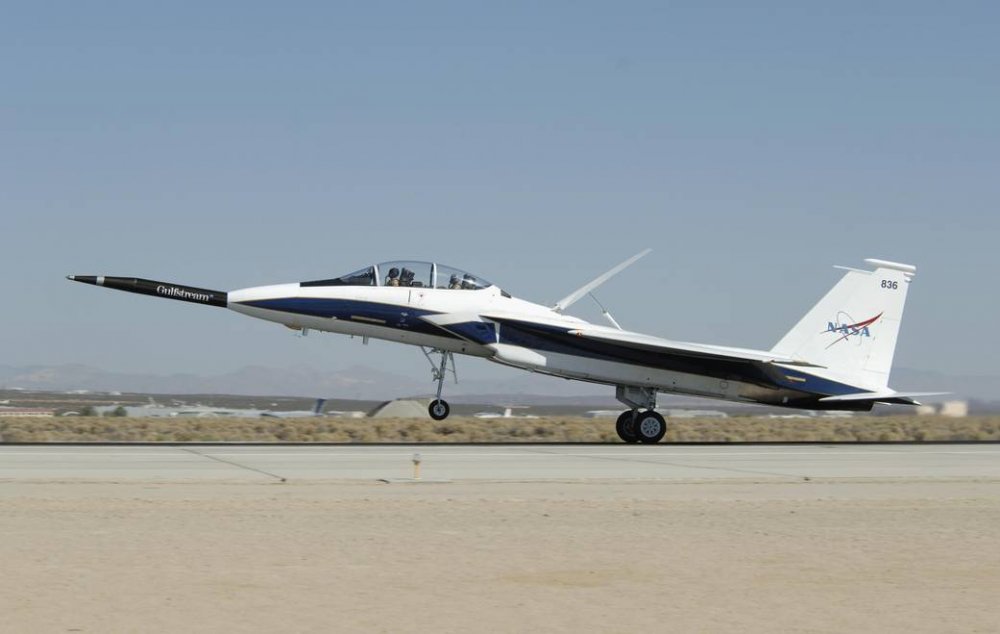

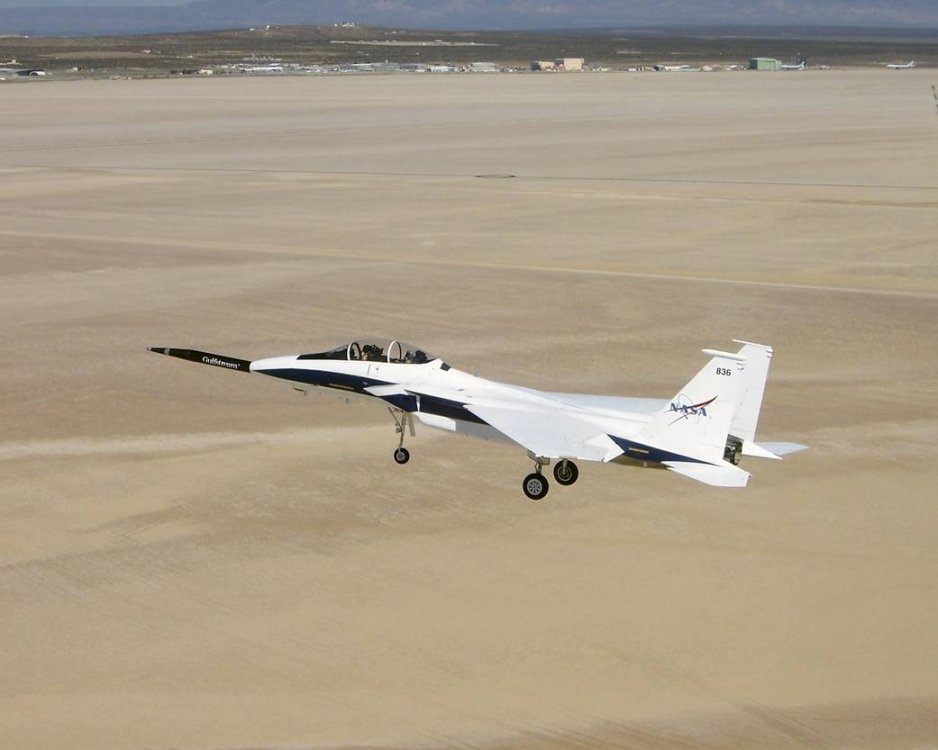

F-15 quiet spike had some unique markings. Not sure if they are represented in any decal sheets. Be sure to add the the yaw vane under the nose.



Tony

[X-Plane Fan]

After first flight, the crew fixed the error in the blue/gold stripe. There was even a custom cover made for the retracted spike.

F-15 QS 1_48 Scale.pdf

[habu2]

Interesting, I did not realize the probe length was variable (although it makes perfect sense)



Can the booms be extended/retracted during flight?  or are they fixed on the ground before flight?



The pdf attachment failed, forum software rules prohibit it.  Can you post a link to the document?

[eraucubsfan]

14 hours ago, habu2 said:

Interesting, I did not realize the probe length was variable (although it makes perfect sense)



Can the booms be extended/retracted during flight?  or are they fixed on the ground before flight?



The pdf attachment failed, forum software rules prohibit it.  Can you post a link to the document?

The probe was extended and retracted during flight.

[eraucubsfan]

@X-Plane Fan Thanks for all the cool pics and information.  As Hubu said the document wont open, would like to see what's in there 🙂

[X-Plane Fan]

Sorry about that. I thought I had saved it as a jpeg.

Edited November 9, 2024 by X-Plane Fan

[eraucubsfan]

On 11/9/2024 at 3:11 PM, X-Plane Fan said:

Sorry about that. I thought I had saved it as a jpeg.

Thanks that will be really helpful when I get around to building mine.

[Filler]

Can I ask, is the nose cone of the F-15 itself modified, or is it simply 'chopped off'? The corrections to the blue/gold stripe give me the impression it is a lengthened cone (and then chopped off)

Edited November 13, 2024 by Filler

[CF104]

On 11/6/2024 at 2:16 PM, Geoff M said:

What does a Quiet Spike do?



It's designed to create several lower intensity shock waves which reduce the overall noise of the sonic boom created by the aircraft.



https://en.wikipedia.org/wiki/Quiet_Spike



Cheers,



John

[Geoff M]

Thanks for the update

[eraucubsfan]

Reviving an "old" thread, @X-Plane Fan when were the pilots names added to the aircraft?  Most of the pictures on NASA's site the pilots names dont appear on the plane.
