Lasinaatti Posted January 23 Share Posted January 23 (edited) I'm having a trouble even describing this area of the cockpit so I'll just call it a pit. I'm talking about the spot where the canopy mechanism is housed, right behind the ejection seat. I haven't found any photos of this area which I'm not surprised of but I'd love to know what color it's supposed to be - Dark Gull Gray or black? Of course, the section is gonna be filled up with the system for the canopy but some color will still show through. On my last build I painted it gray, but that was just a hunch, I think, as I wasn't able to find any photos. I'd appreciate any input or best case scenario, a photo! Edited February 10 by Lasinaatti Quote Link to post Share on other sites
A-10 LOADER Posted January 23 Share Posted January 23 Black Steve Quote Link to post Share on other sites
Lasinaatti Posted January 23 Author Share Posted January 23 10 minutes ago, A-10 LOADER said: Black Steve Great stuff! Appreciate it. Quote Link to post Share on other sites
BillS Posted January 24 Share Posted January 24 The general rule on US tactical aircraft is any surface above shoulder height is black. There are a couple of exceptions but the A -10 is not. Black is the color. Quote Link to post Share on other sites
Lasinaatti Posted January 26 Author Share Posted January 26 On 1/24/2025 at 2:12 AM, BillS said: The general rule on US tactical aircraft is any surface above shoulder height is black. There are a couple of exceptions but the A -10 is not. Black is the color. that's a good tip! On 1/24/2025 at 1:01 AM, A-10 LOADER said: Black Steve while I have you here I've got another question regarding that area - the kit has a rod-like piece in there: and I'm wondering if the yellow color in this photo is accurate, and if it's for the whole rod, or just the tip. Also curious about what the other circled "tube" is for. Quote Link to post Share on other sites
A-10 LOADER Posted January 26 Share Posted January 26 The rod-like piece is the explosive canopy jettison cylinder and the color is a bronze / brassy color. The curved pipe is for the canopy seal pressurization. When the canopy closes it mates with a port on the canopy frame. Steve Quote Link to post Share on other sites
Lasinaatti Posted January 26 Author Share Posted January 26 5 hours ago, A-10 LOADER said: the color is a bronze / brassy color. That's good to know! I'm assuming this includes just the tip and the rest is black? Another photo I found where it almost looks like the tip is black as well, although that could be the lack of light. Quote Link to post Share on other sites
A-10 LOADER Posted January 26 Share Posted January 26 No the entire thing is bronze / brassy. Steve Quote Link to post Share on other sites
Curt B Posted January 27 Share Posted January 27 I’ve got the Jake Melampy book on the A-10, and it’s outstanding. If you have more questions, I may be able to answer them for you using this book. Quote Link to post Share on other sites
Lasinaatti Posted January 28 Author Share Posted January 28 On 1/27/2025 at 4:18 AM, Curt B said: I’ve got the Jake Melampy book on the A-10, and it’s outstanding. If you have more questions, I may be able to answer them for you using this book. Does it have any photos of the rear of the cockpit? It's the most difficult spot to find photos of! I'd really appreciate it. I wish reference books weren't that expensive! Quote Link to post Share on other sites

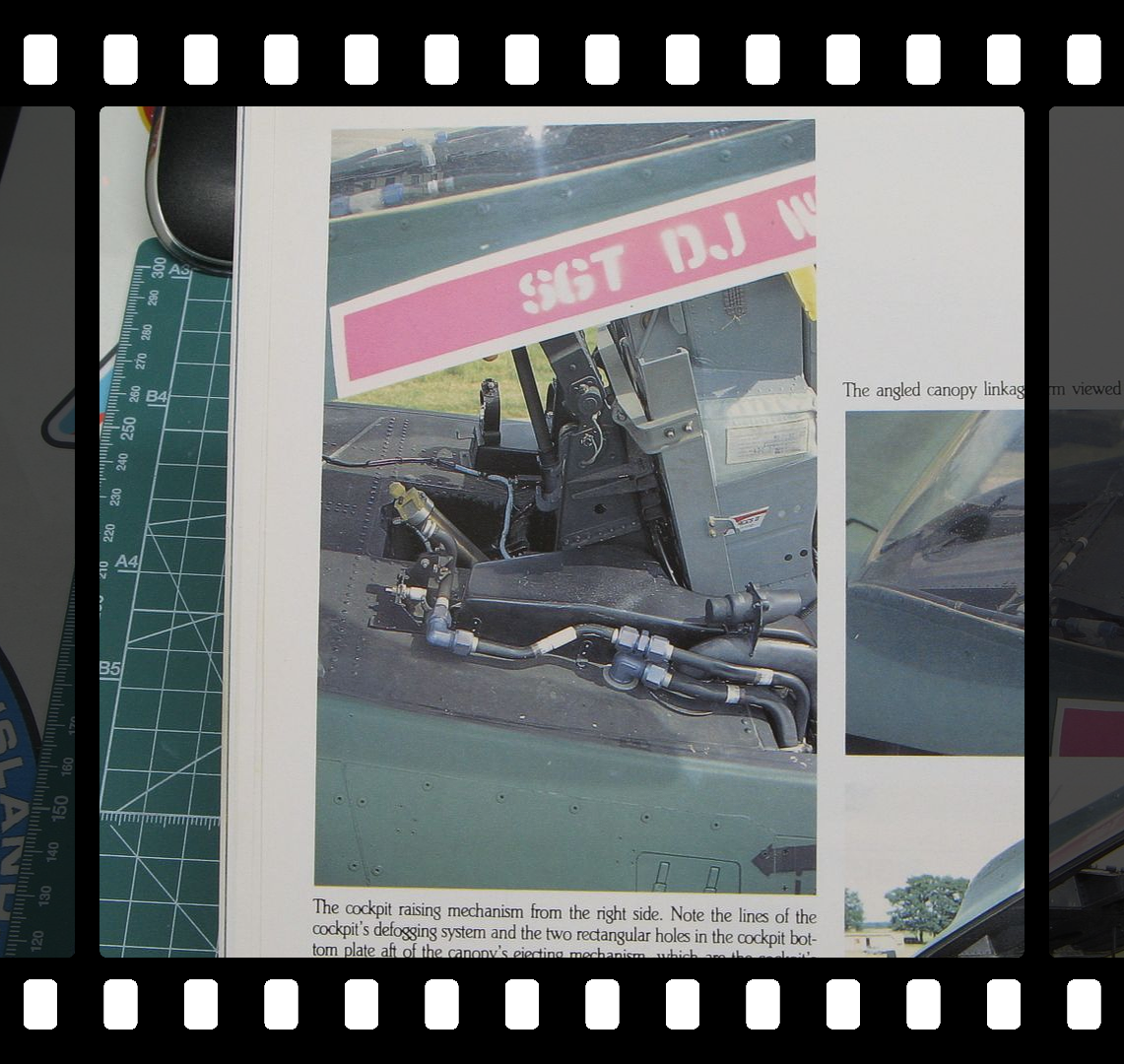

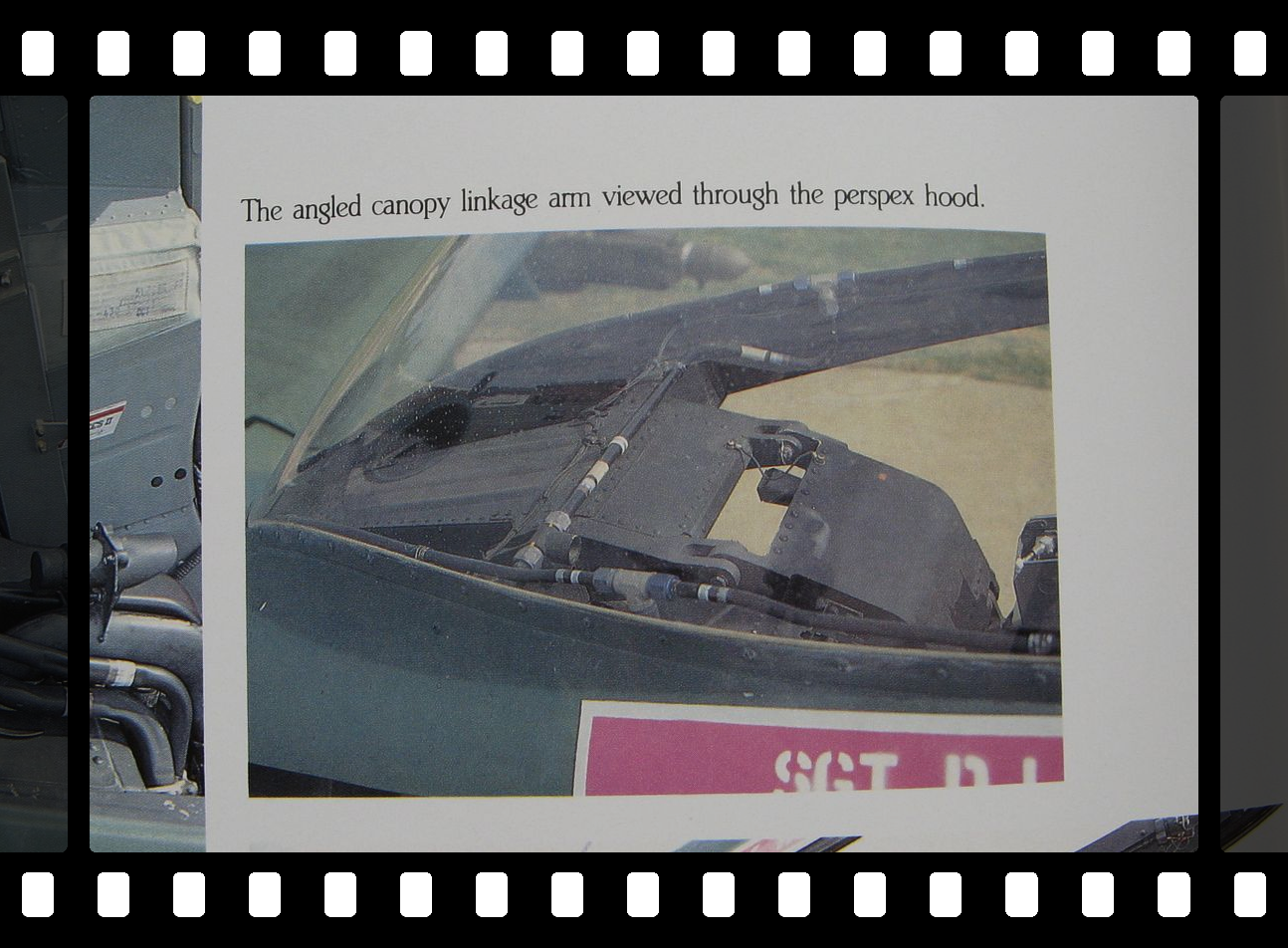

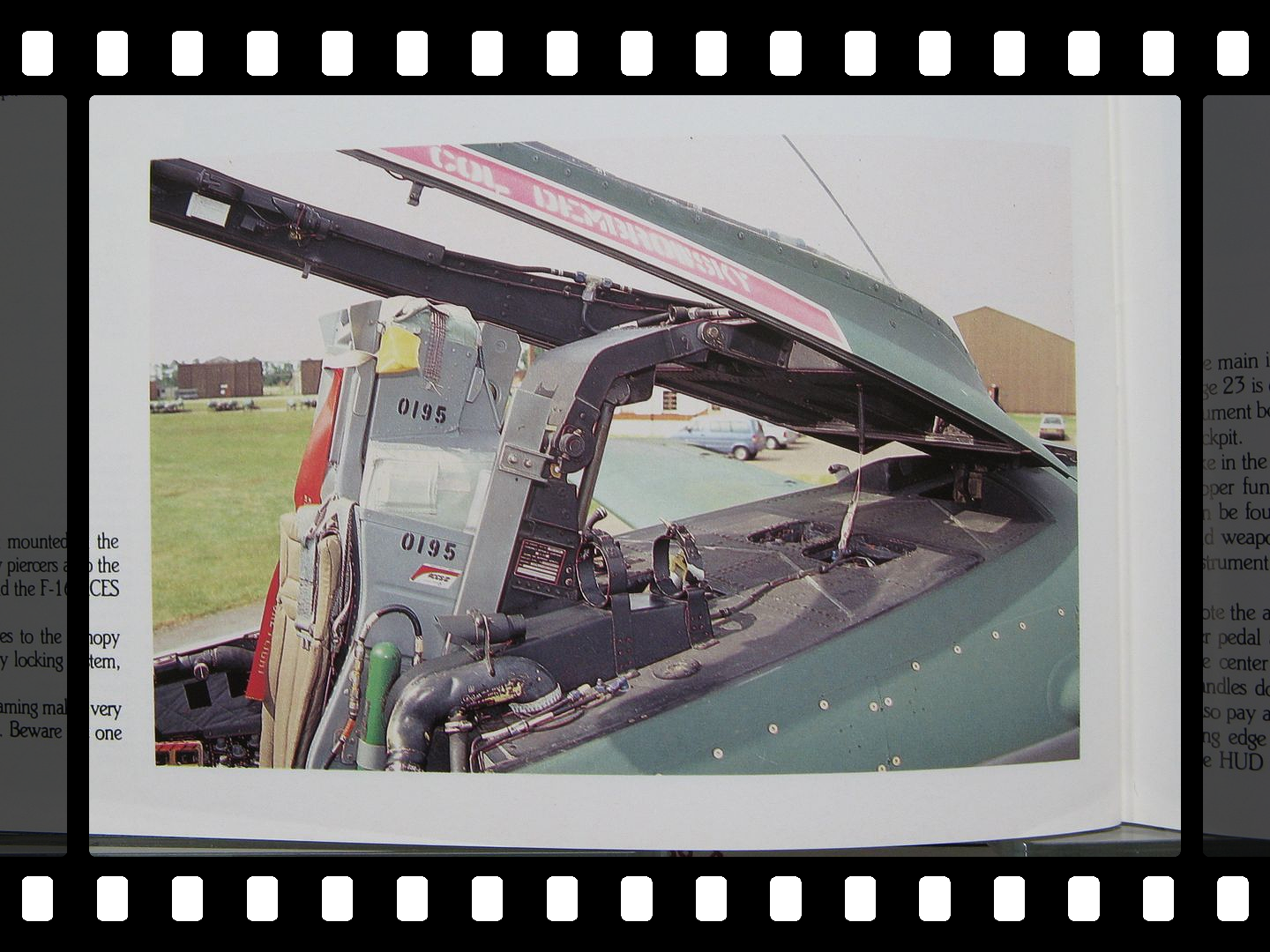

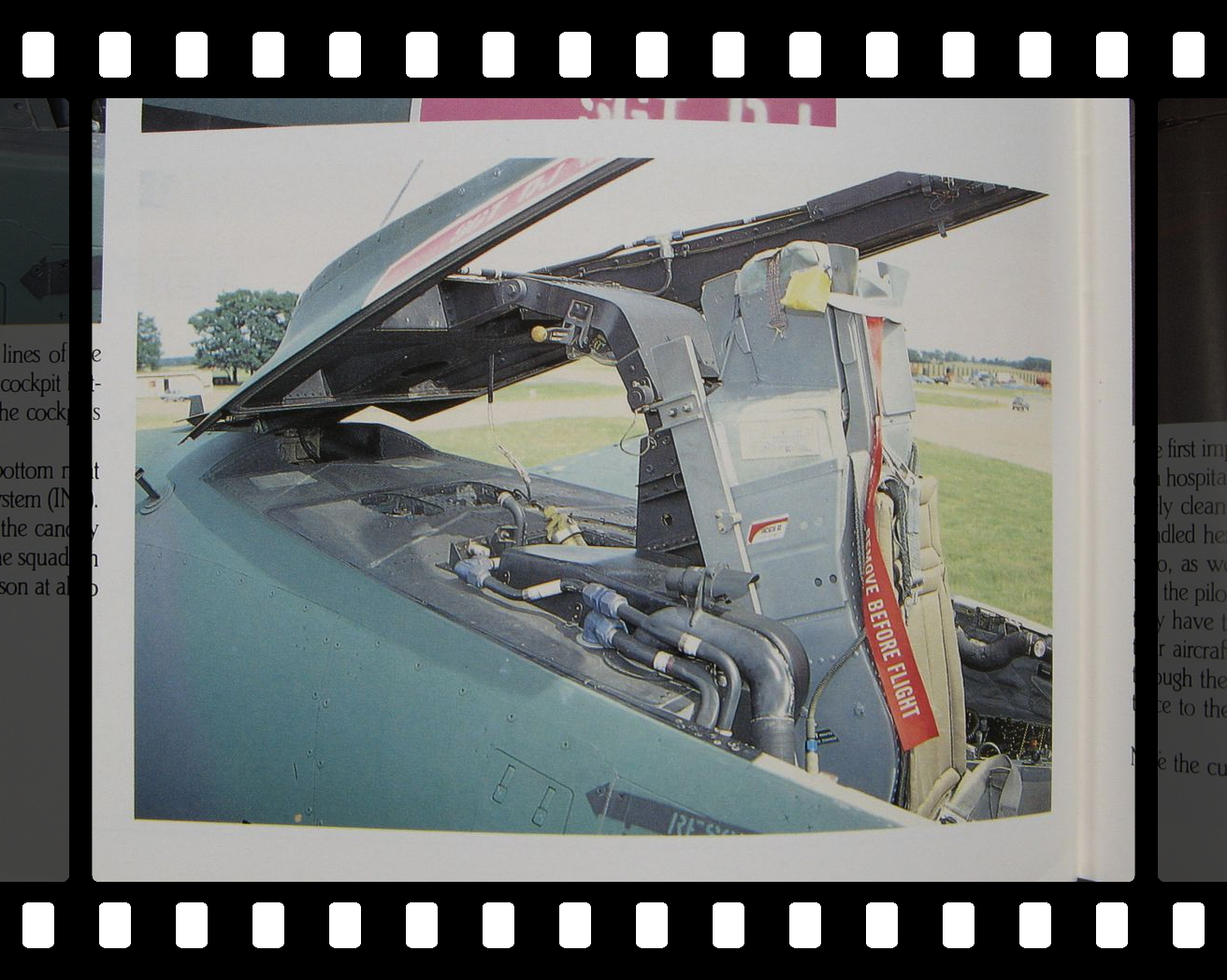

A-10 LOADER Posted January 28 Share Posted January 28 Jake's book has tons of pics but, he doesn't want them floating around the internet without his permission. Here are some pics from my Verlinden Lock-on book, hope they help. Steve Quote Link to post Share on other sites
Lasinaatti Posted January 28 Author Share Posted January 28 4 hours ago, A-10 LOADER said: he doesn't want them floating around the internet without his permission. That's understandable! I'll definitely have to look into getting that. These photos are exactly what I was looking for though! Quote Link to post Share on other sites
Curt B Posted January 29 Share Posted January 29 (edited) I agree with A-10 Loader about not posting images from Jake's book without permission. That's why I offered to verbally describe anything you wanted to know about. But let me tell you that if you want a book about the A-10, Jake's book is THE book to have. Is it a bit pricey? Sure, but there are times you get what you pay for. This is the book, but it's getting harder to find: https://www.scalemates.com/books/the-modern-hog-guide-2nd-edition-modern-guide-jake-melampy--114583 Edited January 29 by Curt B Quote Link to post Share on other sites
Lasinaatti Posted February 10 Author Share Posted February 10 (edited) On 1/26/2025 at 10:09 PM, A-10 LOADER said: No the entire thing is bronze / brassy. Got another color question for you Steve: how should this section of the barrel assembly that peeks through the cooling vent up front be painted? It obviously gets quite dirty, but I'm wondering what the base color should be. ADC grey? Light Ghost Gray? Furthermore, I'm assuming the the interior panels in this vent are ADC gray as well? Edited February 10 by Lasinaatti Quote Link to post Share on other sites
A-10 LOADER Posted February 10 Share Posted February 10 2 hours ago, Lasinaatti said: Got another color question for you Steve: how should this section of the barrel assembly that peeks through the cooling vent up front be painted? It obviously gets quite dirty, but I'm wondering what the base color should be. ADC grey? Light Ghost Gray? Furthermore, I'm assuming the the interior panels in this vent are ADC gray as well? That is the forward gun mount and, when fresh it's Light Ghost Gray. Correct, the interior is a light glossy gray ( not sure of the color name or FS number ? ) but, obviously fades and gets rather dirty over time. Our crew chiefs took excellent care of the jets and kept things quite clean considering. Our Gun Shop guys would clean the insides of the drop down gun panels everyday when they would do their morning gun inspections before flying. Steve Quote Link to post Share on other sites
Craig Baldwin Posted April 20 Share Posted April 20 I just found this thread and the great support from @A-10 LOADER in answering questions. Will be useful for my current build of the GWH 72nd kit. Fantastic community. Craig Quote Link to post Share on other sites
