Hobbydecal

AIM-9M Sidewinder Stencils

Recommended Posts

I had drawn the line drawing of this missile 2 years ago.

And I had printed some data for the ARCer's F-14 GB.

Today I edit and add some lines and rivets and add the colors on the previous files.

Now I would release this set with 1/48 and 1/32 scale.

With one set, you can apply over 6 missiles and each sections and fins will have different serial numbers. ;)

I try to print these soon at latest by this year.

Fortunately I could have taken ROKAF KF-16 pictures during last two years and got this missile information too by subsidiary.

I did my best but experts are you not me.

If you have any advices or other things for this products, please let me know for more perfection. :lol:

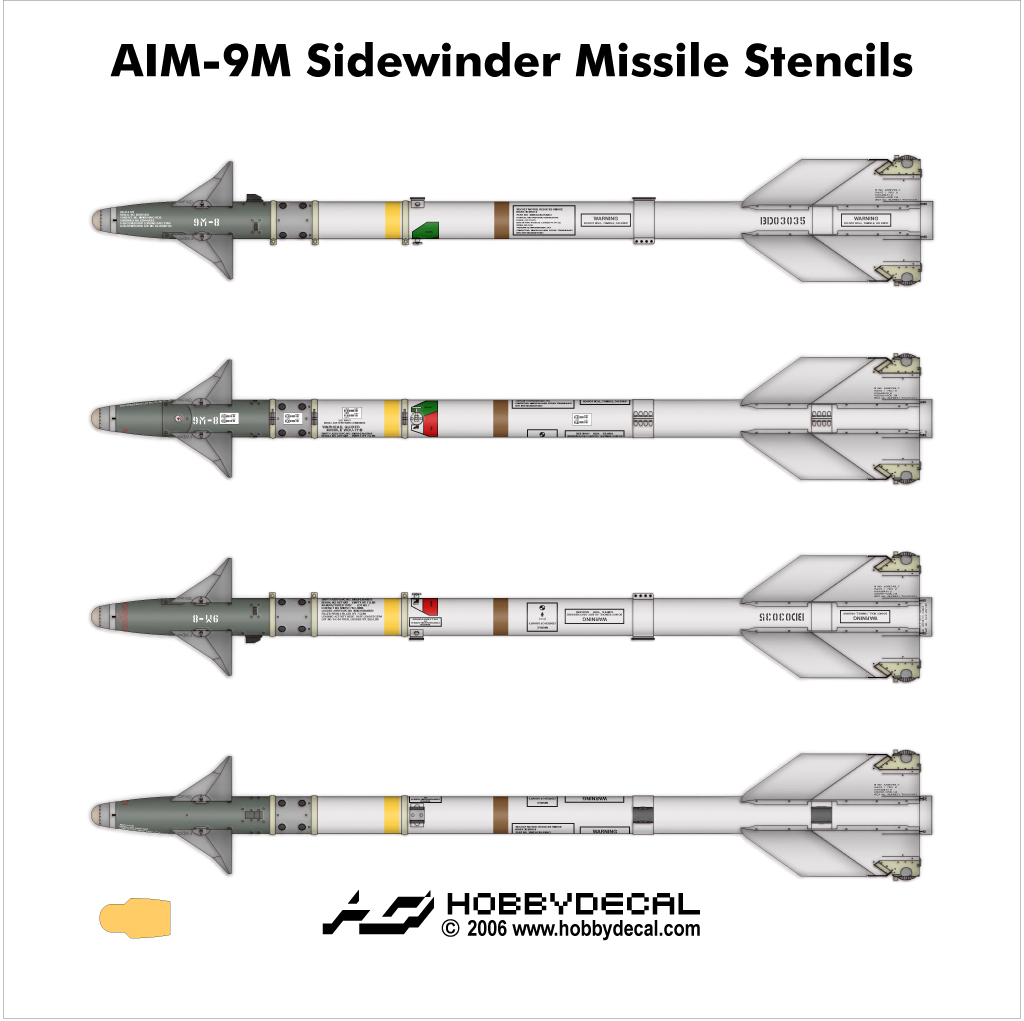

To see profiles,

http://www.hobbydecal.com/picd/stxx062_p1_b.jpg

Good Luck!

From Kim

Edited by Hobbydecal

Share this post


Link to post
Share on other sites

Kim,

European manufactured AIM-9M's have an additional brown stripe on the seeker section to identify the gas generator that moves the forward fins.


And here:


Regards,

Murph

Edited by Murph

Share this post


Link to post
Share on other sites
Kim,

European manufactured AIM-9M's have an additional brown stripe on the seeker section to identify the gas generator that moves the forward fins.

Regards,

Murph

Thank you Murgh for your information.

I need add some more brown bands.

I see European 9M have no markings(green and red) on the safety pin area.

Good Luck!

From Kim

Share this post


Link to post
Share on other sites

Thank you David and Wordog1 for your interesting.

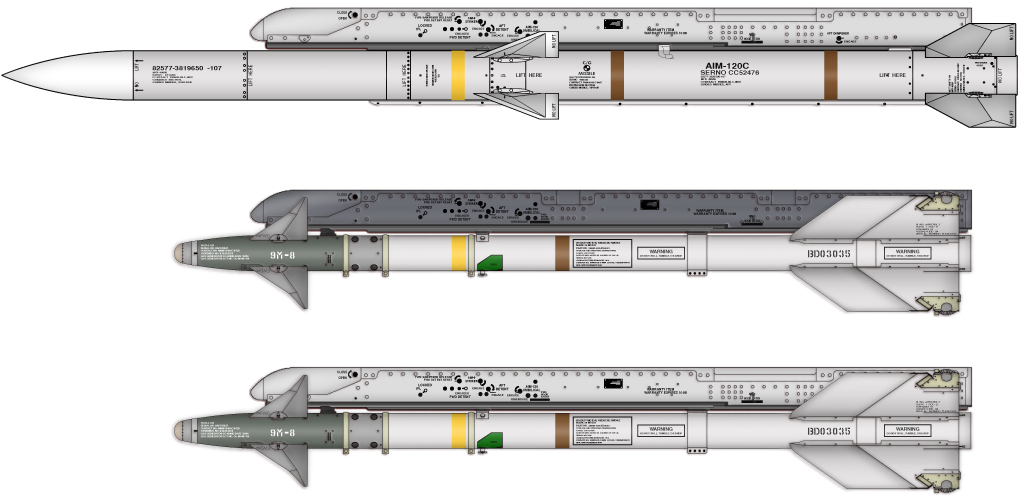

I would add black markings for the LAU-128/129 pylons as our AIM-120 decals.

I tried to vary the name plate of each pylon markings but so small text make it be meaningless. :thumbsup:

As follows


Good Luck!

From Kim
