Steven H. McLain Posted December 30, 2023 Share Posted December 30, 2023 Does anyone have any photos or drawings of the pilots viewing window on the JU-87 Stuka? Quote Link to post Share on other sites
G.R.Morrison Posted January 4, 2024 Share Posted January 4, 2024 Here you go. GRM Quote Link to post Share on other sites

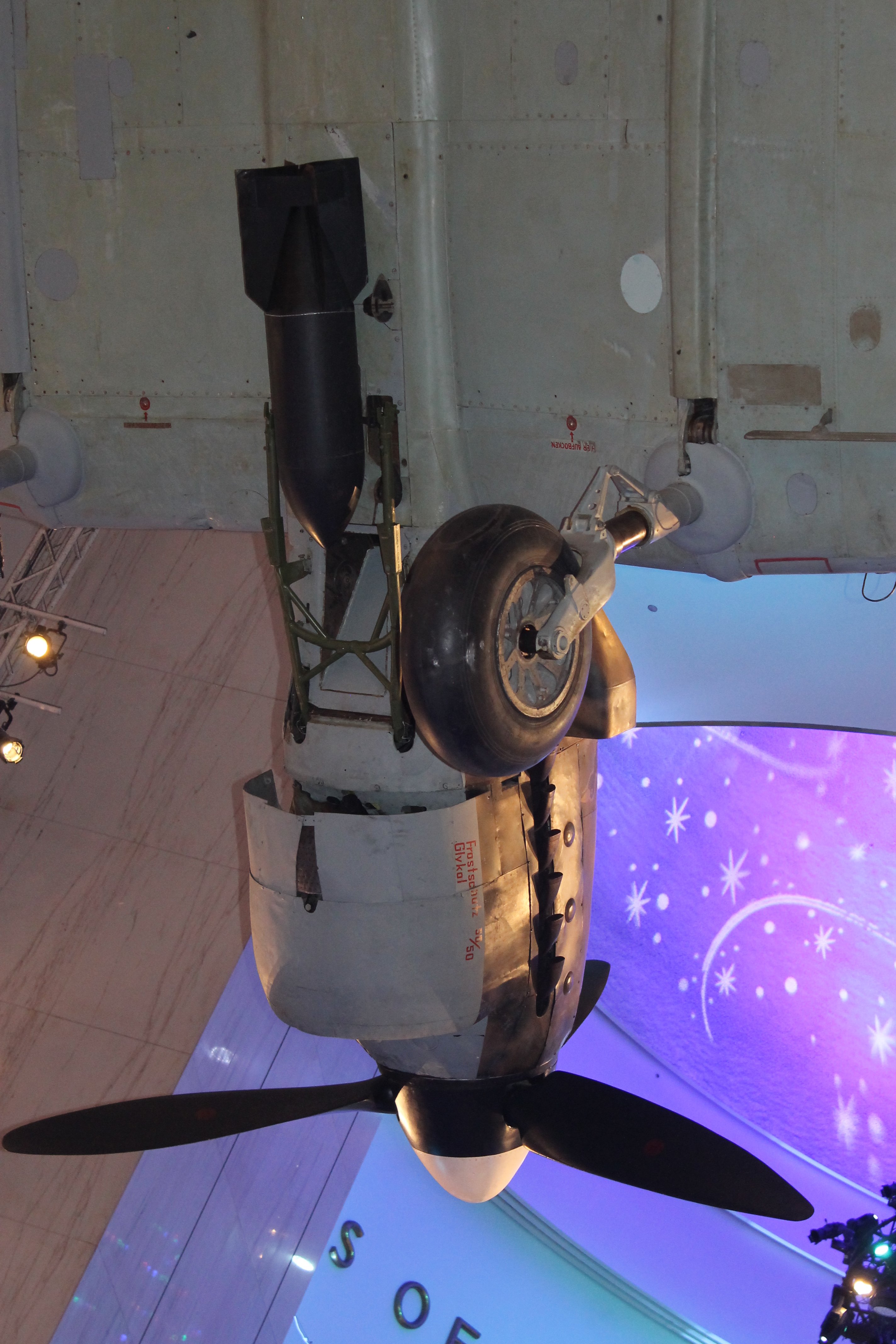

Steve N Posted January 6, 2024 Share Posted January 6, 2024 Here are a couple photos I've taken of that area on the Ju 87R at the Chicago Museum of Science and Industry. I'm not sure if that outside cover was originally a solid door, or a window that's been painted over. In any case, it appears that it folds up out of the way during a dive. Cheers! Steve Quote Link to post Share on other sites
Steven H. McLain Posted January 8, 2024 Author Share Posted January 8, 2024 Thank You to all for the drawings and photos. It has helped me greatly. Quote Link to post Share on other sites
