JRobinsonUSAF

F-15A query

Recommended Posts

I am building an early F-15A in the Air Superiority Blue paint scheme.  My question is - did these early aircraft carry a full complement of data stencils.  I know later models were slathered with the honeycomb and no step markings all over, but I'm not sure about this one.

Thanks,


JR

Share this post


Link to post
Share on other sites

The photos I've seen look to have the full stencils:


Share this post


Link to post
Share on other sites

I flipped thru some old KokuFan magazines and the blue Eagles I saw all had stencils.  The No Step markings were black letters in yellow hexagons.

Share this post


Link to post
Share on other sites

JR, great idea for a build! I did one myself a couple years ago. Regarding stencils, they appear to have had the full gambit coming out of the factory, and here's one thing I believe I made a mistake on; The original air brake was of aluminum structure (with the strengthening strake on top) not composite (honey comb)...while doing the decals, I ran short of the honey comb "NO STEP" markings and wondered why?? Well, because I put them on the airbrake like you typically see! I should have used the regular "NO STEP" markings...oh well.

751200-ho35-f15a-73-0103-la-top-fnt-zpsf

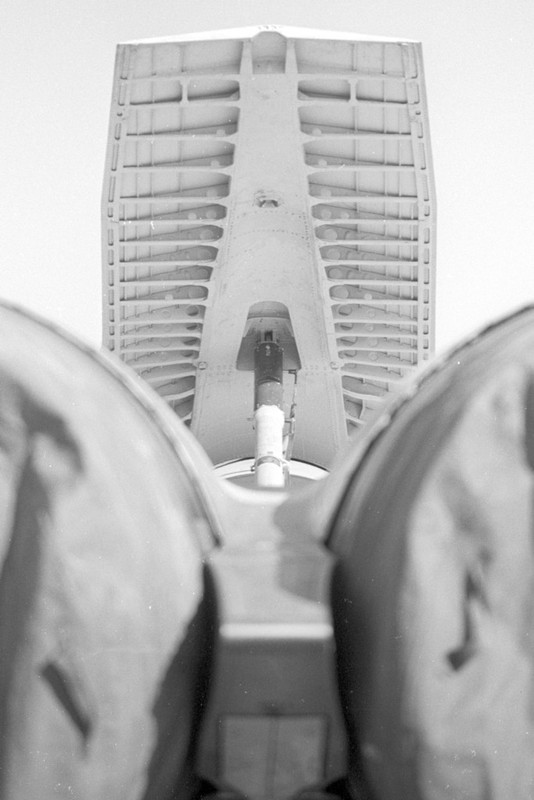

Original:


751200-HO22-F15-A-73-0-speedbrake-zpszxe

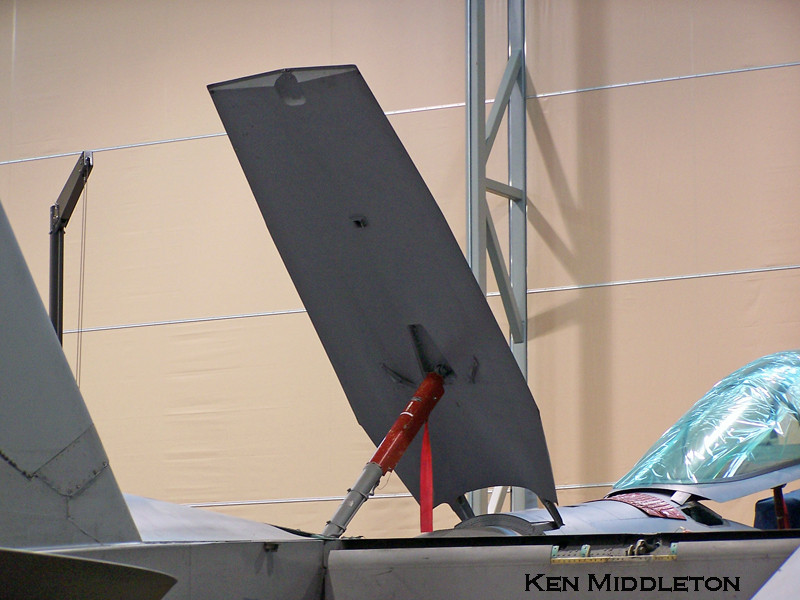

Later production:


Share this post


Link to post
Share on other sites

Thanks all.  I went the full stencil route.  Took me four days, two sessions each day to do them all.  Whitey, I have some spare honeycomb NO STEP stencils left over.  I use Microscale data sheet and it had enough stencils to do about 1 1/2 aircraft.  I guess they knew some of the decals would get messed up in the process.  Anyway, if you want the NO STEP stencils, let me know.



Joel

Share this post


Link to post
Share on other sites
14 hours ago, JRobinsonUSAF said:

Thanks all.  I went the full stencil route.  Took me four days, two sessions each day to do them all.  Whitey, I have some spare honeycomb NO STEP stencils left over.  I use Microscale data sheet and it had enough stencils to do about 1 1/2 aircraft.  I guess they knew some of the decals would get messed up in the process.  Anyway, if you want the NO STEP stencils, let me know.



Joel

JR, hey , thanks for the offer but I did manage to pick up extras back when building mine to finish it out.

Share this post


Link to post
Share on other sites

Andy, thanks for those air brake and stencil reference photos.  Very useful.  R/ Dutch

Share this post


Link to post
Share on other sites
Posted (edited)

To be honest, I do not know.  The C model had an upgraded radar system to make it a better all weather fighter, but aside from the wheels, I personally do not know of any significant external differences.  I'm sure there are others on deck who would know more, and there are some excellent books on the F-15 that would assist you.



Here's my model, completed except for the AIM-9s.



ENppXw9l.jpg?1






p0ZtzUol.jpg?1



Joel





Edited by JRobinsonUSAF

Share this post


Link to post
Share on other sites

GWH F-15 is as far as I know the old Monogram F-15 plus aftermarket parts. external between A and C model not vissible other than their wheels



Share this post


Link to post
Share on other sites
1 hour ago, Eric2020 said:

GWH F-15 is as far as I know the old Monogram F-15 plus aftermarket parts. external between A and C model not vissible other than their wheels




The GWH F-15 kits are new tool and have absolutely nothing to do with the ancient Monogram F-15 kits.

Share this post


Link to post
Share on other sites
37 minutes ago, Dave Williams said:


The GWH F-15 kits are new tool and have absolutely nothing to do with the ancient Monogram F-15 kits.


Confirming, I have both and they are definitely not the same molds.
