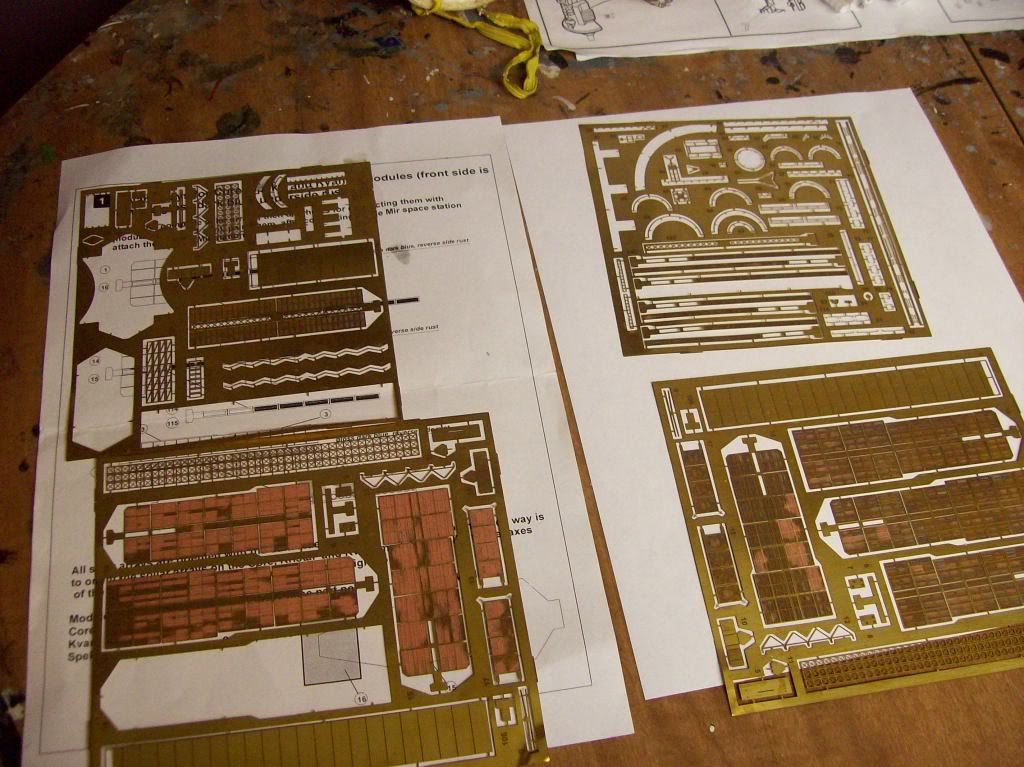

stevenichols Posted April 24, 2012 Share Posted April 24, 2012 (edited) Hello all, here are some early pictures of a MIR build using the Revell kit with the New Ware detail set. These are pictures of work done so far on the core and Kvant modules. Edited May 2, 2012 by stevenichols Quote Link to post Share on other sites
niart17 Posted April 24, 2012 Share Posted April 24, 2012 (edited) Very nice so far. I built this kit along with my daughter (her first kit) and I was pretty impressed with the details. With those photo-etch sets I could see it will turn out to be a real gem. So how much, if any of the kit has to be cut up to incorporate the detail set? I'd like to maybe tackle one for real one day. Keep posting, I look forward to seeing it finished. Bill Edited April 24, 2012 by niart17 Quote Link to post Share on other sites

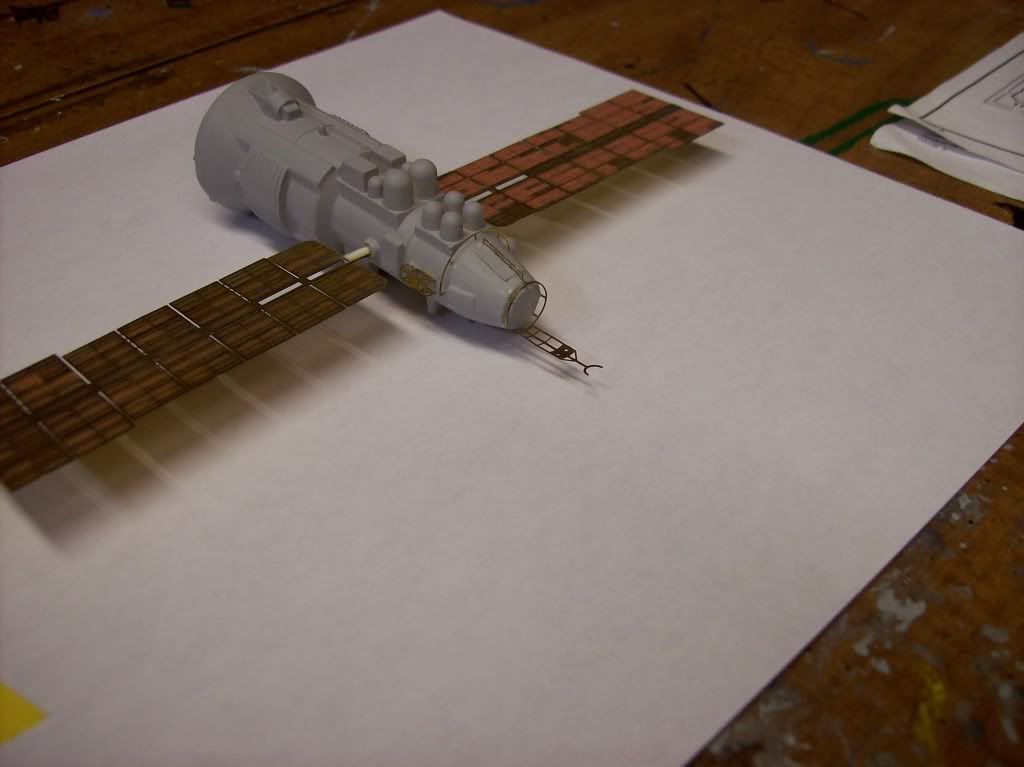

stevenichols Posted April 24, 2012 Author Share Posted April 24, 2012 (edited) Bill Thanks for the positive comments. I bet your daughter is proud of her MIR as she should be. The only part's that needed to be addressed on the core module were the e.v.a. handhold's (needing removal)that were moulded into the section were the p.e. ones would go. In the one picture where I have the solar panel mounted, the center section on the core module where the two straps are, the rectangular pieces needed a little cleaning up as they needed to be flat not raised. The hardest part of the p.e. is attaching it to the model due to the tiny footprint of the parts, hair pulling(if I had any) Here are a couple more pictures. Steve Edited April 24, 2012 by stevenichols Quote Link to post Share on other sites
Air2k757 Posted April 24, 2012 Share Posted April 24, 2012 It looks awesome! Inspiring. I will have to add this one to my "things to build" list. Quote Link to post Share on other sites
Vince Hoffmann Posted April 25, 2012 Share Posted April 25, 2012 Hey, that looks great! i have the Revell kit and the New Ware PE set... I'm thinking I should dig it out and give it a go after I finish my current build. The only problem i see with the Mir is that it sticks out in every direction when built, so how do you display it? Are you planning to add the shuttle as well? Quote Link to post Share on other sites
spaceman Posted April 25, 2012 Share Posted April 25, 2012 Hi, excellent work on your MIR build so far. As I can see, you love also the details like me, and the PE parts looks fantastically. They are a great addition, those your model revaluations. Keep on building in such a way. Quote Link to post Share on other sites
stevenichols Posted April 25, 2012 Author Share Posted April 25, 2012 (edited) It looks awesome! Inspiring. I will have to add this one to my "things to build" list. Thanks for taking a look and the encouragement. Hey, that looks great! i have the Revell kit and the New Ware PE set... I'm thinking I should dig it out and give it a go after I finish my current build. The only problem i see with the Mir is that it sticks out in every direction when built, so how do you display it? Are you planning to add the shuttle as well? Vince thanks, I have placed a brass sleeve in the bottom of the core module to accept a mounting rod. I'am also removing the shuttle docking module as it will be in the configuration prior to it being added. I'll leave the shuttle builds to you. Hi, excellent work on your MIR build so far. As I can see, you love also the details like me, and the PE parts looks fantastically. They are a great addition, those your model revaluations. Keep on building in such a way. Thank You Manfred, yes the devil is in the detail indeed and I'am afraid I'am not on your level of ability . Edited April 29, 2012 by stevenichols Quote Link to post Share on other sites
HOLMES Posted April 26, 2012 Share Posted April 26, 2012 Steve, I have bene following this and your workmanship is exemplary .. The MIR build is looking fantastic and you are doing a GRAND job of it..Love the detailed work... Keep up the good work.. Quote Link to post Share on other sites
crowe-t Posted April 26, 2012 Share Posted April 26, 2012 (edited) Really nice work so far! What a difference with the PE parts added. I'm looking forward to seeing it finished. Edited April 26, 2012 by crowe-t Quote Link to post Share on other sites

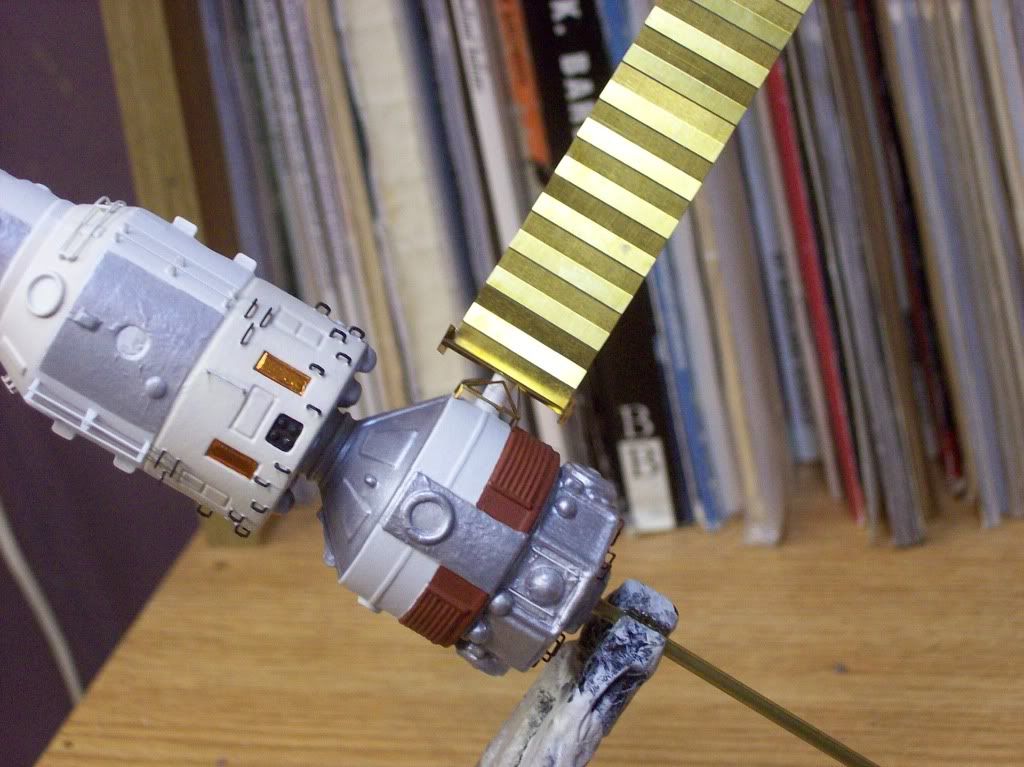

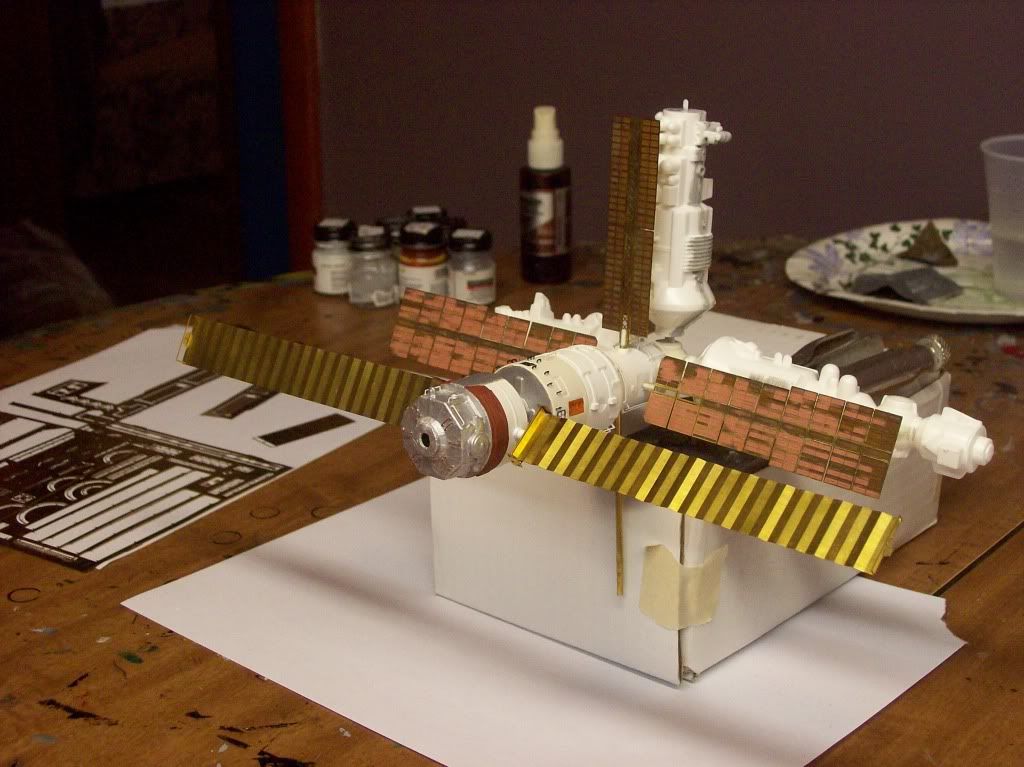

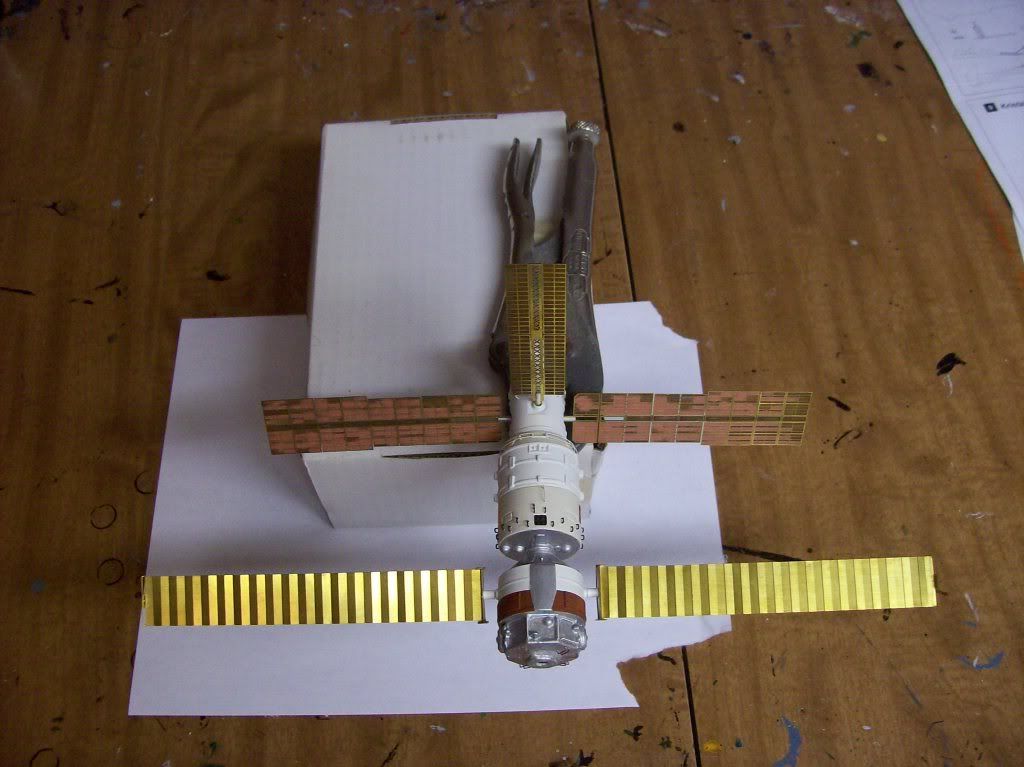

stevenichols Posted April 28, 2012 Author Share Posted April 28, 2012 (edited) Mike, thanks for the encouragement. Here are a few more pictures concentrating on the solar panels and their mounts. I modified the panel mounts using aluminum tube and brass sleeves in the different modules. On the real MIR the panels would rotate to face the sun. Edited April 28, 2012 by stevenichols Quote Link to post Share on other sites
bubble Posted April 28, 2012 Share Posted April 28, 2012 That look very good Steve !!! A lot of photoetch has this kit . Quote Link to post Share on other sites
Youngtiger1 Posted April 29, 2012 Share Posted April 29, 2012 Super work on the solar panels my friend. New Ware did awesome job with their sets. I know I need to get some of these sets. Mike Quote Link to post Share on other sites
stevenichols Posted April 29, 2012 Author Share Posted April 29, 2012 Pascal thanks. Mike thank you the solar panels are indeed quite a bit of work and they do indeed make the model. Steve Quote Link to post Share on other sites
Vince Hoffmann Posted April 29, 2012 Share Posted April 29, 2012 I have placed a brass sleeve in the bottom of the core module to accept a mounting rod. I'am also removing the shuttle docking probe as it will be in the configuration prior to it being added. I'll leave the shuttle builds to you. You know, I just came across my STS-74 pictures this afternoon while searching for reference material. That was the Atlantis flight where they took up the shuttle docking module. It looks like a pretty simple build with just the module and cradle, and the the docking port attached to the crew compartment. I'm looking forward to seeing your build, the Mir station is one of my favorite subjects. Quote Link to post Share on other sites
stevenichols Posted May 1, 2012 Author Share Posted May 1, 2012 You know, I just came across my STS-74 pictures this afternoon while searching for reference material. That was the Atlantis flight where they took up the shuttle docking module. It looks like a pretty simple build with just the module and cradle, and the the docking port attached to the crew compartment. I'm looking forward to seeing your build, the Mir station is one of my favorite subjects. Vince it looks like a go on the docking module. The D.M. was added(1995) before the Spectr(1996) module and it looks like I have no other choice. Here's a link I thought you might enjoy. http://www.turbosquid.com/FullPreview/Index.cfm/ID/529931 Quote Link to post Share on other sites
spaceman Posted May 1, 2012 Share Posted May 1, 2012 Great 3D pics, which are a big help for scratch-buildig your MIR. Quote Link to post Share on other sites
Rob T Posted May 2, 2012 Share Posted May 2, 2012 This is looking great. I never thought I would be be interested in a Mir build but this has my attention. Rob Quote Link to post Share on other sites
stevenichols Posted May 4, 2012 Author Share Posted May 4, 2012 (edited) Manfred, I must say this build did not start as a scratchbuilding platform for the kit, it is just a simple build highlighting Tomas' detail set. He will be using pictures of the build as a guide for the p.e. detail set on his site. The next one will however incorporate all the scratchbuilding I can muster.There is so much that can be done with the basic kit such as the thermal blanket texture on the various modules and the fidelity and lack of external details that make up each module. I'am just going to try and capture the color of the thermal blankets due to the U.V. and the outgassing of the station. I will however detail and scratchbuild the D.M., Thanks Vince :D Rob thanks, I hope I don't let you down. Some pictures of the module's Priroda, Kristall, Kvant2 and Spectr pictured in that order with the New Ware detail set applied and the fitting of the solar panels. Edited May 5, 2012 by stevenichols Quote Link to post Share on other sites
spaceman Posted May 5, 2012 Share Posted May 5, 2012 Hi Steve, I understand, what you want to say to me, but I don't know the original MIR Kit. The PE-Detail Kit is certainly outstanding and great and uniquely revalues your model. All well done so far, hold on tight and keep on! Quote Link to post Share on other sites
crowe-t Posted May 5, 2012 Share Posted May 5, 2012 Steve, This build is looking great so far! I can't wait to see your next build that you mentioned with the scratch building. Quote Link to post Share on other sites
stevenichols Posted May 12, 2012 Author Share Posted May 12, 2012 Steve, This build is looking great so far! I can't wait to see your next build that you mentioned with the scratch building. Thanks Mike, Here are pictures with most of the work done on the modules and paint on the solar panels. The 4 modules are barely pressed into their fittings and are not square. For the solar panels I used testors acryl pearl blue but it just didn't have the glittering effect or gloss of the real panel.I recently sent my wife to get me a can of Tamiya clear and by accident she brought back bought some Tamiya clear pearl glosscoat(plain clear isn't available) and it worked perfectly Quote Link to post Share on other sites
K2Pete Posted May 12, 2012 Share Posted May 12, 2012 What a treat to see an in-progress build of yours Steve. This is looking simply outstanding! Pete Quote Link to post Share on other sites
spaceman Posted May 12, 2012 Share Posted May 12, 2012 Hi Steve, your space station looks better and better, great job done with the PE details, keep on! Quote Link to post Share on other sites
bubble Posted May 12, 2012 Share Posted May 12, 2012 That Painting look,s great steve ,do you go use the kit stand ? Quote Link to post Share on other sites
HOLMES Posted May 16, 2012 Share Posted May 16, 2012 #21.....Photo of the build in that post is ASTOUNDING... BRILLIANT work Steve. HOLMES Quote Link to post Share on other sites
